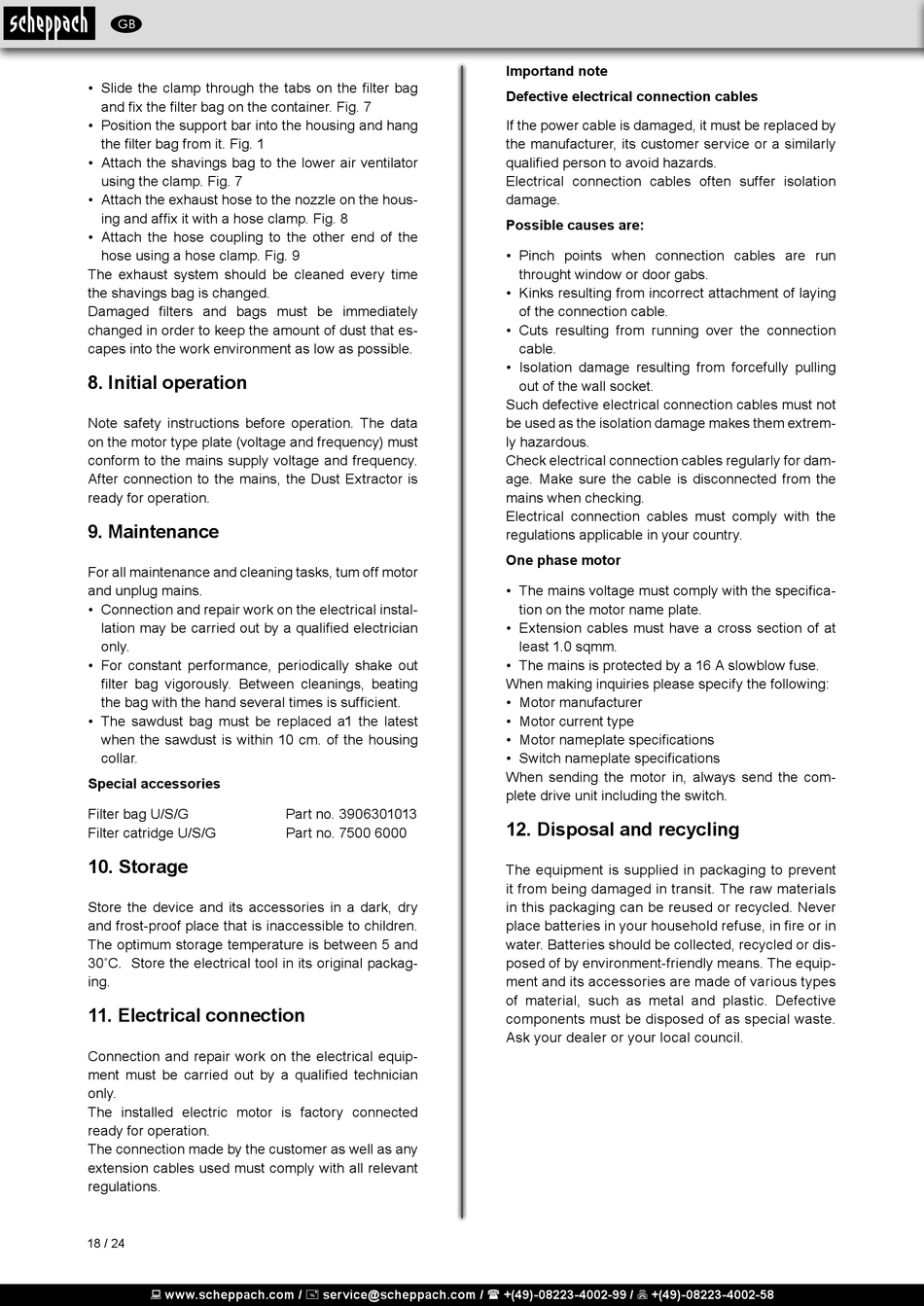

• Slide the clamp through the tabs on the filter bag
and fix the filter bag on the container. Fig. 7
• Position the support bar into the housing and hang
the filter bag from it. Fig. 1
• Attach the shavings bag to the lower air ventilator
using the clamp. Fig. 7
• Attach the exhaust hose to the nozzle on the hous-
ing and affix it with a hose clamp. Fig. 8
• Attach the hose coupling to the other end of the
hose using a hose clamp. Fig. 9
The exhaust system should be cleaned every time
the shavings bag is changed.
Damaged filters and bags must be immediately
changed in order to keep the amount of dust that es-
capes into the work environment as low as possible.

8. Initial operation

Note safety instructions before operation. The data
on the motor type plate (voltage and frequency) must
conform to the mains supply voltage and frequency.
After connection to the mains, the Dust Extractor is
ready for operation.

9. Maintenance

For all maintenance and cleaning tasks, tum off motor
and unplug mains.
• Connection and repair work on the electrical instal-
lation may be carried out by a qualified electrician
only.
• For constant performance, periodi cally shake out
filter bag vigorously. Between cleanings, beating
the bag with the hand several times is sufficient.
• The sawdust bag must be replaced a1 the latest
when the sawdust is within 10 cm. of the housing
collar.
Special accessories
Filter bag U/S/G
Filter catridge U/S/G

10. Storage

Store the device and its accessories in a dark, dry
and frost-proof place that is inaccessible to children.
The optimum storage temperature is between 5 and
30˚C. Store the electrical tool in its original packag-
ing.
11. Electrical connection
Connection and repair work on the electrical equip-
ment must be carried out by a qualified technician
only.
The installed electric motor is factory connected
ready for operation.
The connection made by the customer as well as any
extension cables used must comply with all relevant
regula tions.
18 / 24
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Part no. 3906301013
Part no. 7500 6000
Importand note
Defective electrical connection cables
If the power cable is damaged, it must be replaced by
the manufacturer, its customer service or a similarly
qualified person to avoid hazards.
Electrical connection cables often suffer isolation
damage.
Possible causes are:
• Pinch points when connection cables are run
throught window or door gabs.
• Kinks resulting from incorrect attachment of laying
of the connection cable.
• Cuts resulting from running over the connection
cable.
• Isolation damage resulting from forcefully pulling
out of the wall socket.
Such defective electrical connection cables must not
be used as the isolation damage makes them extrem-
ly hazardous.
Check electrical connection cables regularly for dam-
age. Make sure the cable is disconnected from the
mains when checking.
Electrical connection cables must comply with the
regulations applicable in your country.
One phase motor
• The mains voltage must comply with the specifica-
tion on the motor name plate.
• Extension cables must have a cross section of at
least 1.0 sqmm.
• The mains is protected by a 16 A slowblow fuse.
When making inquiries please specify the following:
• Motor manufacturer
• Motor current type
• Motor nameplate specifications
• Switch nameplate specifications
When sending the motor in, always send the com-
plete drive unit including the switch.

12. Disposal and recycling

The equipment is supplied in packaging to prevent
it from being damaged in transit. The raw materials
in this packaging can be reused or recycled. Never
place batteries in your household refuse, in fire or in
water. Batteries should be collected, recycled or dis-
posed of by environment-friendly means. The equip-
ment and its accessories are made of various types
of material, such as metal and plastic. Defective
components must be disposed of as special waste.
Ask your dealer or your local council.
