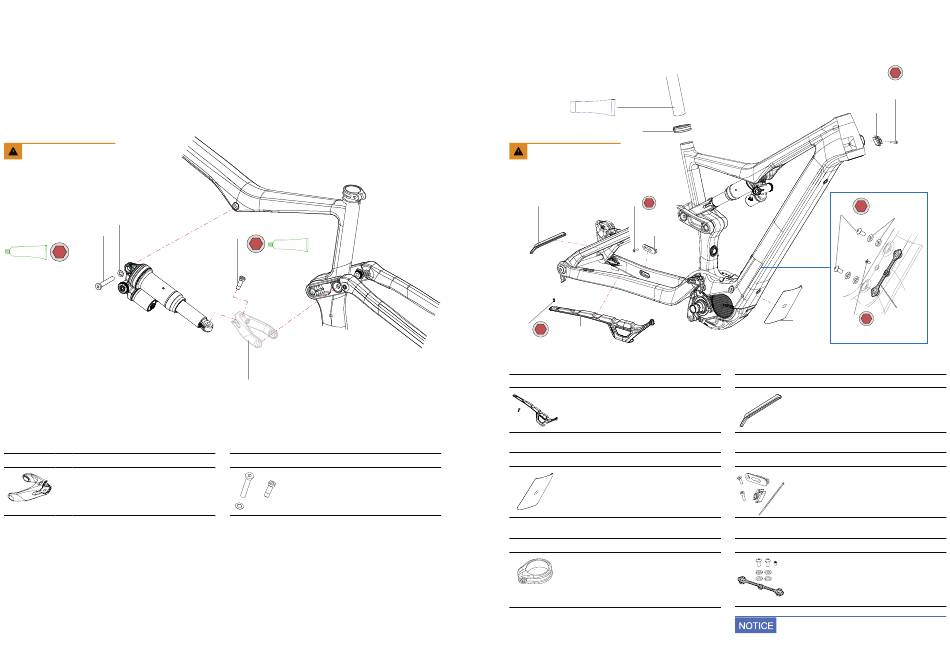

SHOCK ASSEMBLY
Always follow the recommended
torque settings.
16.2
16.1
16.2
5
GREASE
16.1
6 N.m
1 4
SHOCK EXTENDER RISE
ART Nº: X2120000
SHOCK EXTENDER RISE
TECHNICAL MANUAL
16.3
5
16.3
GREASE
8 N.m
14
14
16
SHOCK ASSEMBLY KIT RISE
QTY. ART Nº: X2130000
1 16.1 FRAME-SHOCK BOLT
16.2 FRAME-SHOCK WASHER
16.3 SHOCK-SHOCK EXT. BOLT
BLUE PAPER RISE · 2021
F R A ME H A R DWA R E A ND PR OTE CTOR S
FIBER CARBON GRIP
Always follow the recommended
torque settings.
18
18
17.2 17.2 2
20.4
2 N.m
17.1
1 7
R UB B ER PROTE CTO R R IG HT CHA IN STAY
ART Nº: X2160000
17.1 RUBBER PROTECTOR RIGHT CHAINSTAY
RISE
17.2 BOLT M3x12 COUNTERSUNK
1 9 AD HE S. PR OT ECTO R T RA N S PA REN T D OW N T UBE
ART Nº: X2160000
QTY.
1 ADHES. PROTECTOR TRANSPARENT
DOWNTUBE
1
1
2 1
SEATPOST CLAMP 34.9mm BLK
ART Nº: X2020000
SEATPOST CLAMP 34.9mm BLK
21
21
20.4 2
20.4
2 N.m
20.3
20.3
1 8
AD HES. R UBB ER P ROT ECTO R RI GHT S / STAY
QTY. ART Nº: X2170000
1
1
2 0 CABLEGUIDE KIT BRAKE-DERAILL. RISE
QTY. ART Nº: X2190000
1
22
B OT T L E HO L D ER PLAT E K IT R IS E
QTY. ART Nº: X2270000
1
ORBEA | 53
EN
2.5
20.2
2.5 N.m
20.1
20.2
20.1
3
22.3
22.3
22.4
22.4
5 N.m
22.1
22.1
2
19
22.2 22.2
2 N.m
19
QTY.
ADHES. RUBBER PROTECTOR RIGHT S/STAY 1
QTY.
20.1 CABLEGUIDE HEADTUBE 1
20.2 BOLT M3x15 1
20.3 CABLEGUIDE BRAKE C/STAY 1
20.4 BOLT M3x12 COUNTERSUNK 1
20.5 ZIPTIE 2.5x100 1
QTY.
22.1 INTERNAL BOTTLE HOLDER PLATE 1
22.2 BOLT M3x8 DIN7991 FRAME 1
22.3 BOTTLE HOLDER BOLT M5x10 2
22.4 WASHER 6.2x10x2 4
Always use the original washers to install a
bottle holder or the Range Extender mount
to Rise.
