4.1.2 ACU201 (4.0 to 9.2 kW) and ANG401 (5.5 and 15.0 kW)

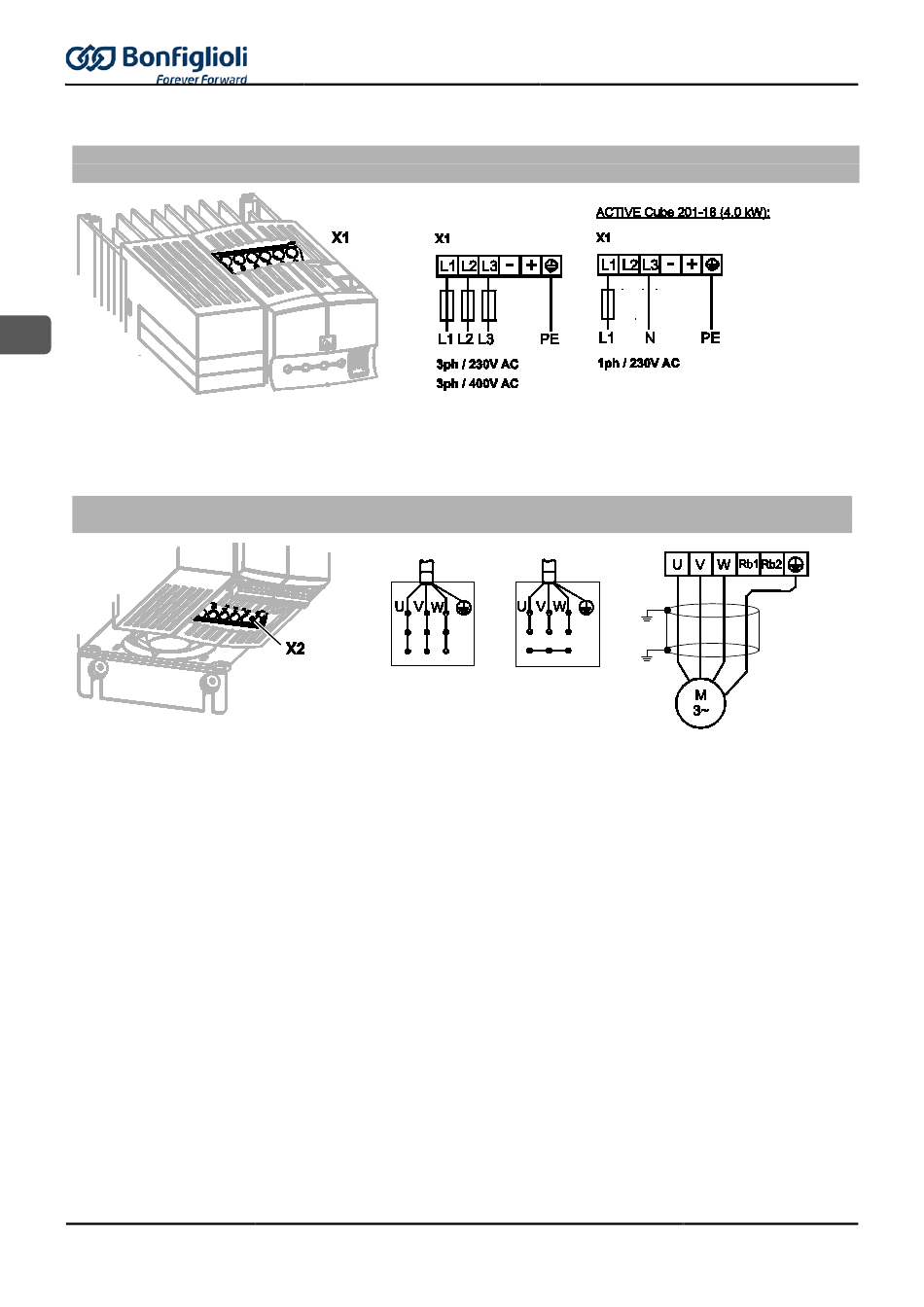

Mains connection
ACU201 (4.0 to 9.2 kW) and ACU401 (5.5 and 15.0 kW)
GB
ANG 210-18 (4.0 kW): one and three-phase connection possible
ANG 210-19 (5.5 kW) and higher: three-phase connection possible
Motor connection
ACU201 (4.0 to 9.2 kW) and ACU401 (5.5 and 15.0 kW)
For connection of the ground conductor of the mains and motor cable, use the provided terminal connection
options X1 and X2. Other connection options for connecting the mains and motor cable are not permissible.
For connection of a braking resistor, use terminals R
58
Delta circuit
b1
Quick Start Guide ACU 201, ACU 401, ACU 501, ACU 601
Star circuit
and R .
b2
