Scope of Delivery

Bosch Rexroth AG, MIT: PE 2, 3 842 358 722/2015-05
4 Scope of Delivery
The scope of delivery includes:
• 1 PE 2 positioning unit
• 1 set of assembly instructions "PE 2 positioning unit".

4.1 Condition on delivery

• PE 2 positioning unit, ready-to-install.

4.2 Required accessories:

• 1 VE 2/... stop gate, see TS 2plus catalog 3 842 531 138.

4.3 Optional accessories

• Position inquiry kit, 3 842 508 933, see TS 2plus catalog 3 842 531 138.

5 About This Product

5.1 Performance description

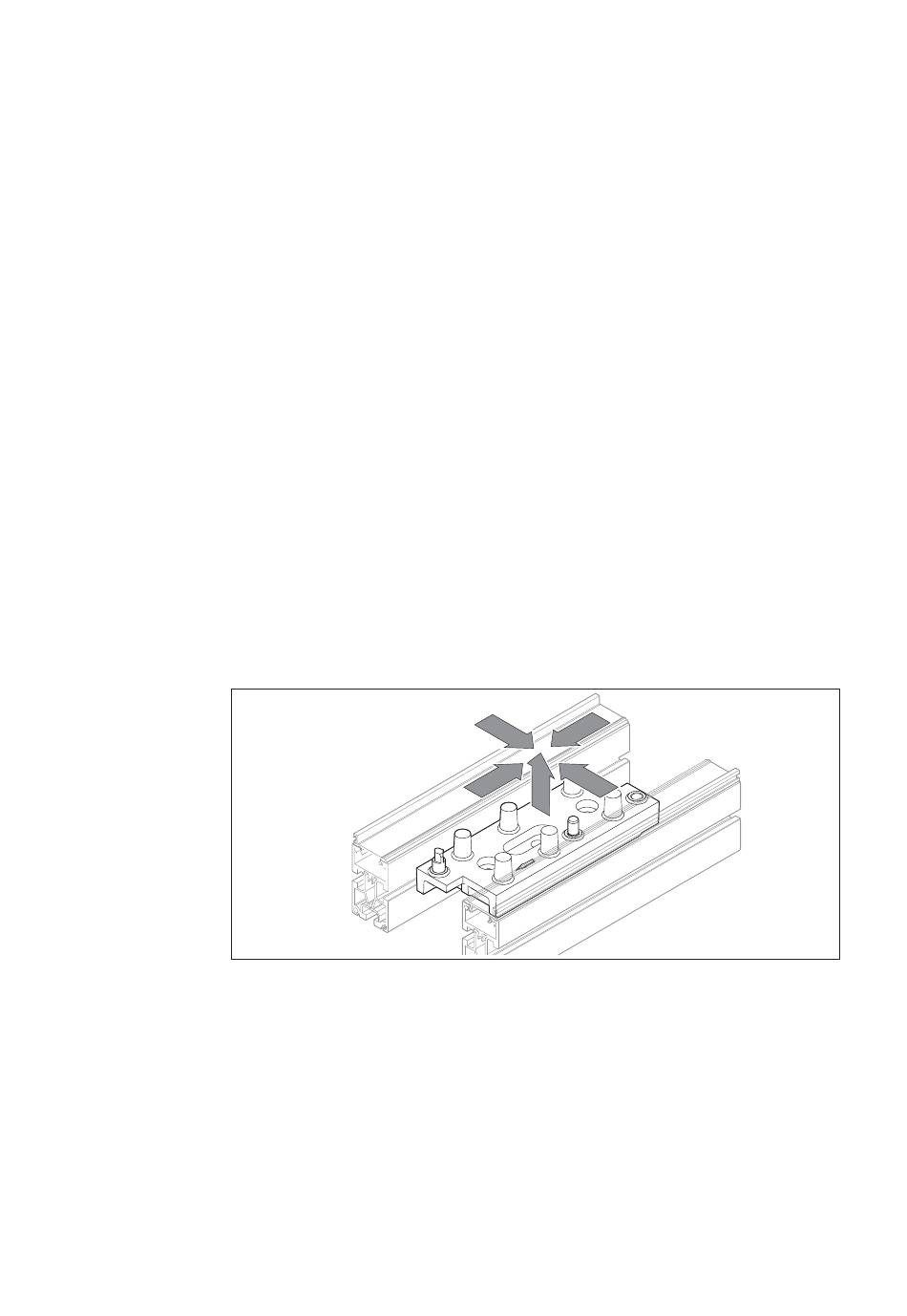

Fig. 1: PE 2 positioning unit performance description
5.1.1

PE 2 positioning unit application

• Assembly in belt section BS 2...
• Lifting of conveyor media and positioning of WT 2 workpiece pallets in a manual
or automated processing station with high demands on positioning accuracy
(±0.1 mm).
358 722-02
