Handling

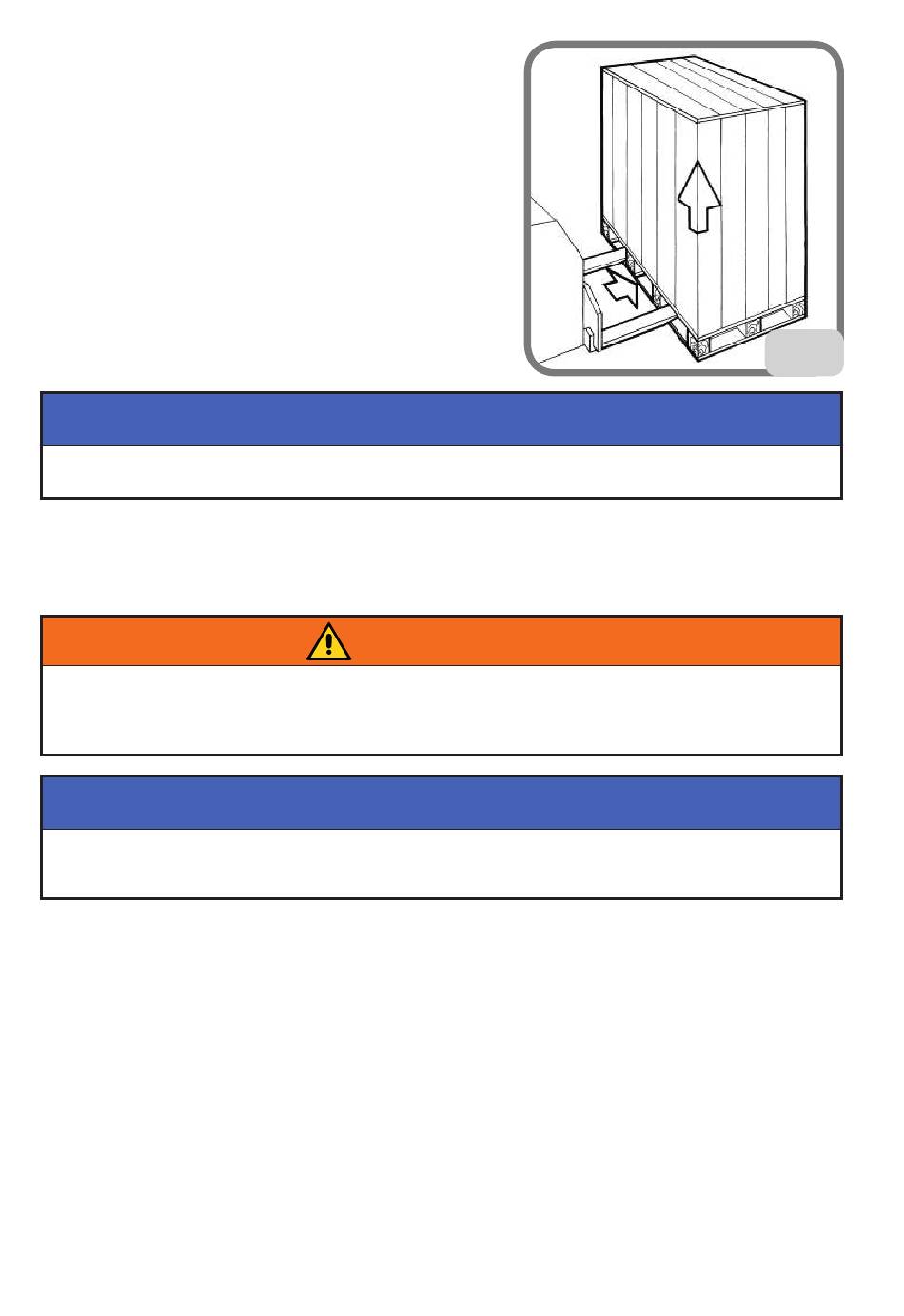

To move the package insert the forks of a forklift
truck into the specific slots on the base of the
package itself (pallet) (Fig. 3).
Before moving the machine, refer to the LIFTING/
HANDLING section.
Keep the packing material intact for possible future transport of the machine.

3. UNPACKING / ASSEMBLY

Pay careful attention when unpacking, assembling, handling and installing the
machine as described below. Failure to observe these instructions could damage
the machine and compromise operator safety.
Before removing the machine from the pallet, make sure the items shown below have
been removed.
Remove the upper part of the package and make sure that the machine has not suffered
damage during transport; identify the points for fastening to the pallet.
- The machine consists of five main units (fig.1):
1 head
2 air tank (T.I version only)
3 box with pressure gauge (T.I version only)
4 pole guard
5 body
- After removing the head 1, it is advisable to place it in a horizontal position to prevent
it from falling and getting damaged.
- Remove the side cover.
- Insert the air hose G (fig. 2) into hole A behind the pole tilting cylinder.
- Insert pin B into hole C and fasten with screws and washers D.
