Installation Manual for Divided Inner Glass Door
1.

Scope of delivery

Divided inner glass door, gas proof (8)
2 hinges (7)
2 key-bolts for hinges (10)
1 rubber profile (narrow) (6)
2. Installation
2.1. Concerning incubators delivered before October 1999 only: Exchange of
door locking block
If the divided inner glass door is intended to be mounted to an elder chamber delivered before
October 1999, it is necessary to exchange the door locking previous to the assembly.

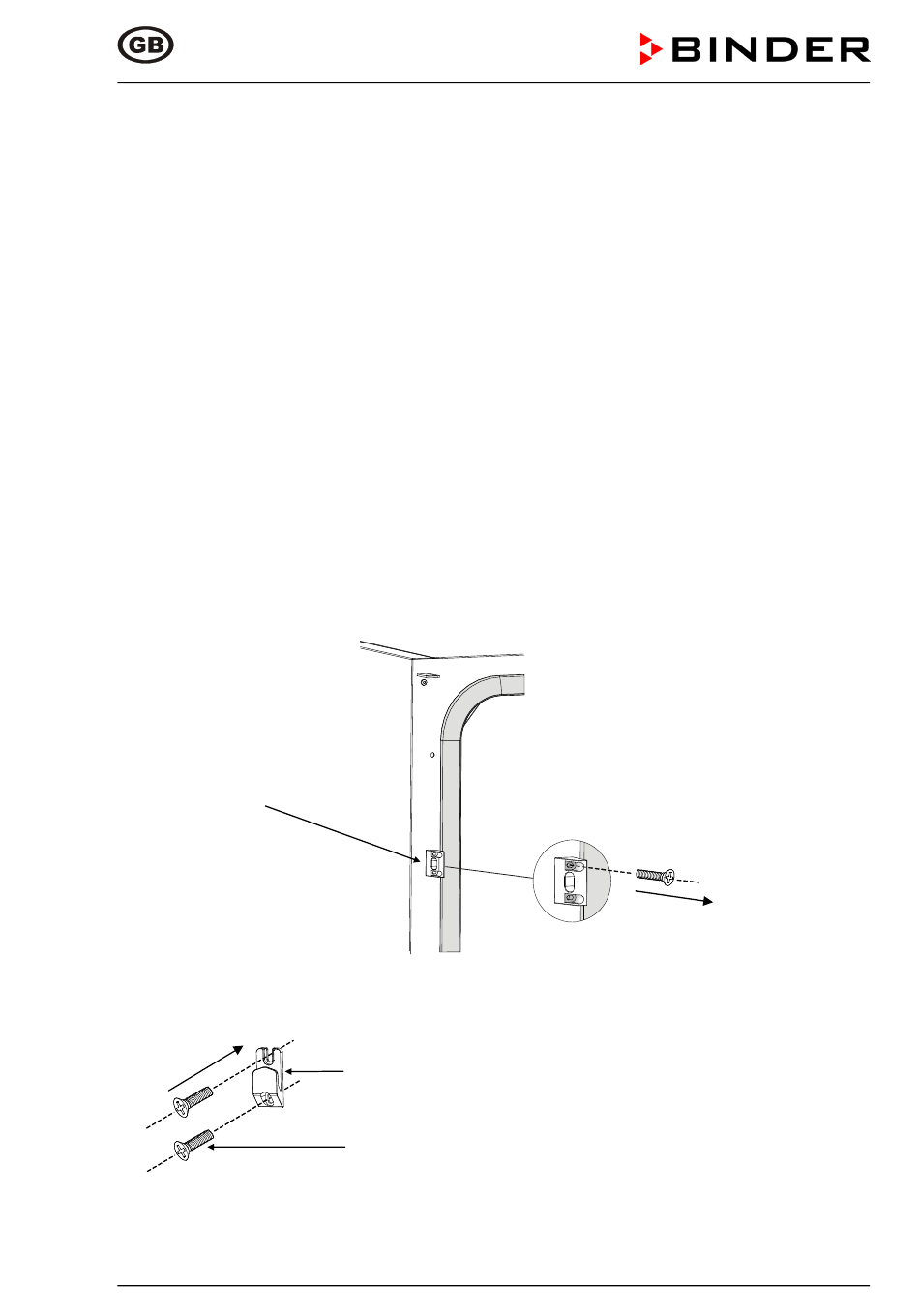

• Unscrew the screws that fix the locking the locking block (1) at the housing and remove the
locking block.
Extant locking block (1)
• Fasten the new locking block (2) (Art. No. 6002-0124) to the housing with two oval head
screws M 4 x 14 (2a).
Now proceed to mounting the divided inner glass door.
Installation of divided inner glass door 01/2009
New locking block (2)
Oval head screw (2a)
for new locking block
