2.2. Mounting the divided inner glass door

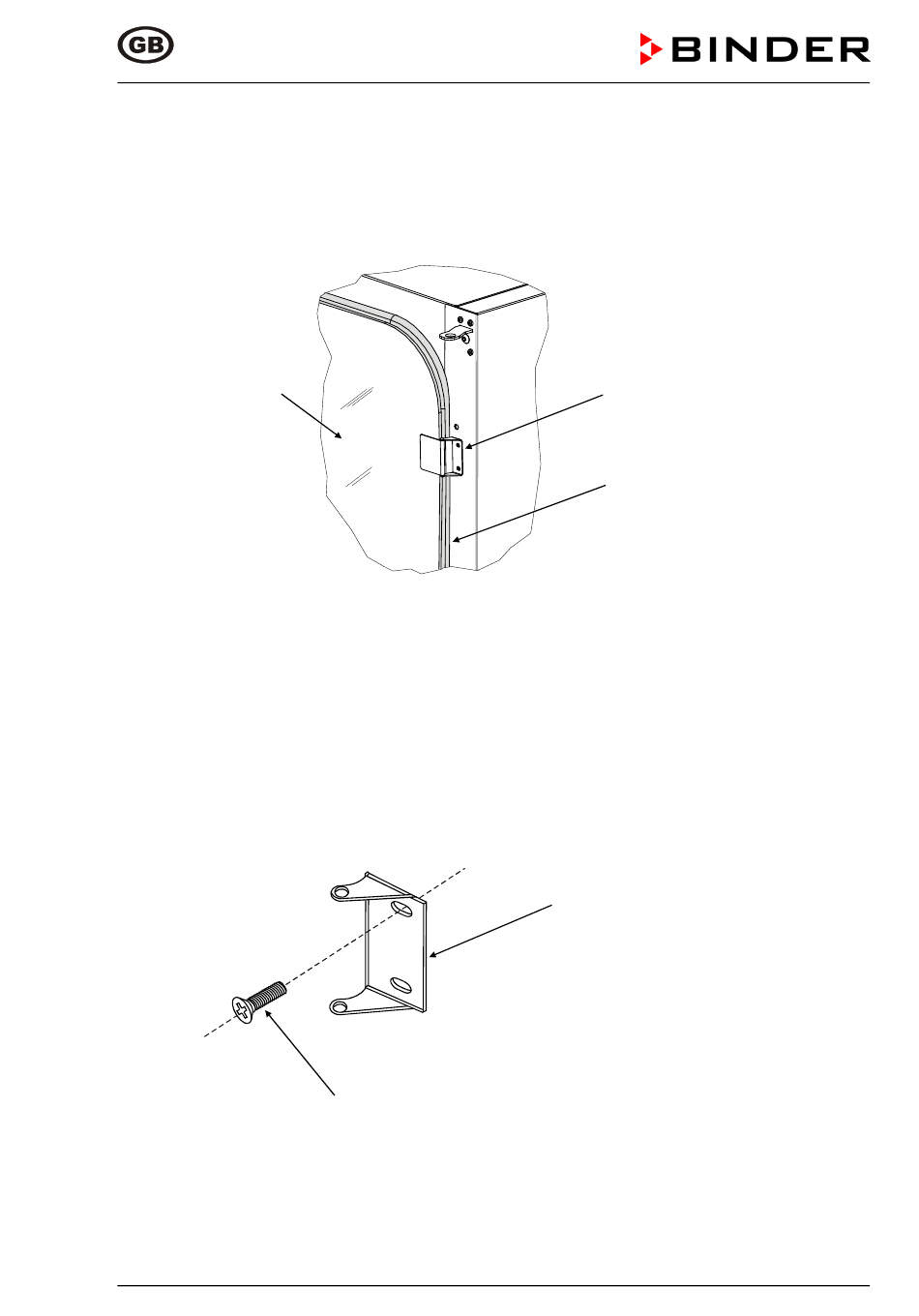

• Screw both hinges (3) of the extant inner glass door off the housing. Keep screws (two oval
head screws for each hinge) for use as hinge screws (7a) of divided inner glass door.
Extant inner
glass door (4)
• Take out the inner glass door (4)
• Pull off the broad rubber profile (5) for the extant inner glass door and insert the new narrow
rubber profile (6) for the divided inner glass door.
• Fasten hinges (7) of the divided inner glass door to the housing with two oval head screws
(7a) each.
Oval head screw (7a)
for hinge of divided inner glass door
Installation of divided inner glass door 01/2009
Hinge (3)
of the inner glass door
Broad rubber profile (5)
of the inner glass door
Hinge (7) of divided inner glass door
