4.2

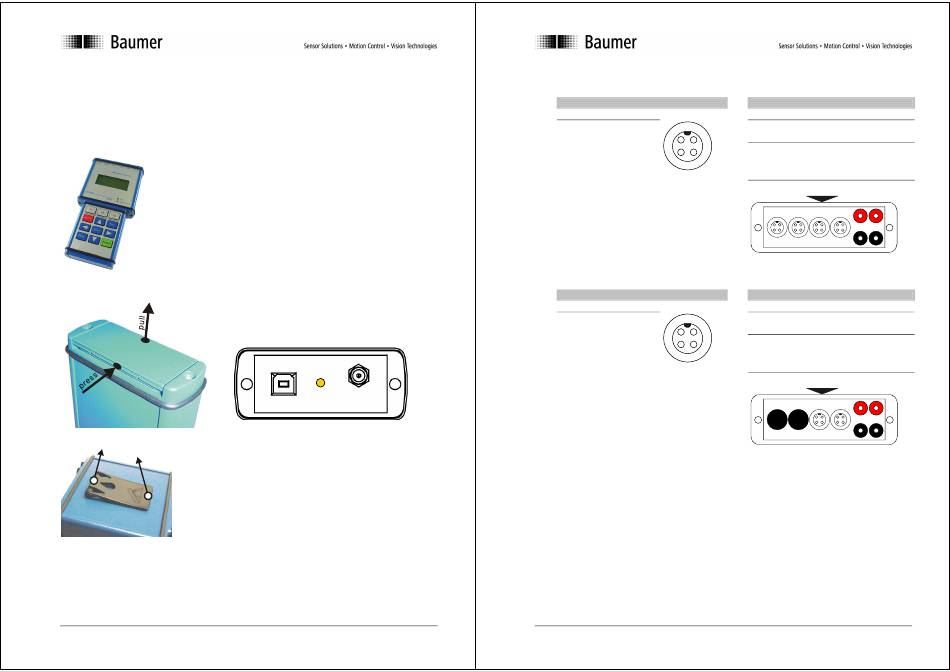

Displaybox
Depending on the system, the case contains a 2 or 4-channel Displaybox. Both variants have the same
fundamental functions. With the 2-channel version, bending can also be measured.
Note:
A detailed description of the functions can be found in the separate manual of the Displaybox.
4.2.1
Functions
4.2.2
USB and power supply
The connections for the USB interface and for the mains
adapter are located at the bottom end of the Displaybox.
The cover can be easily opened by pressing and
simultaneously pulling at the middle (see illustration).
4.2.3
Stand
Proceed as follows to set up the stand:
Gently raise the lug on the hinge [1] and then fold up the
stand [2].
1
2
23/32
V1.2
•
Simultaneous measurement and display of all
sensor channels
•
Battery operation or mains connection with
mains adapter
•
Display optionally in µε, kN, t
•
2 analogue outputs
•
Reset with keypad or InspectMaster
•
USB interface
Charge
LED
Power
Supply
USB
09.11.07
4.3
Electrical connections (DDBF 4-SC)
Sensor plug CH A...CH D
Pin
1
S/G1
EXC+
2
S/G1
SIG-
4
1
3
S/G 2
SIG+
3
2
4
S/G 2
EXC-
4.4
Electrical connections (DDBF 2-SC)
Sensor plug CH A...CH B
Pin
1
S/G 1
EXC+
2
S/G 1
SIG-
4
1
3
S/G 2
EXC+
3
2
4
S/G 2
SIG-
24/32
V1.2
Analog Out
Red
Signal +
OUT 1
Black
Signal -
Red
Signal +
OUT 2 Black
Signal -
DISPLAY
Analog
CH C
CH B
CH A
CH D
OUT2
OUT1
Analog Out
Red
Signal +
OUT 1
Black
Signal -
Red
Signal +
OUT 2 Black
Signal -
DISPLAY
Analog
CH B
CH A
OUT2
OUT1
09.11.07
