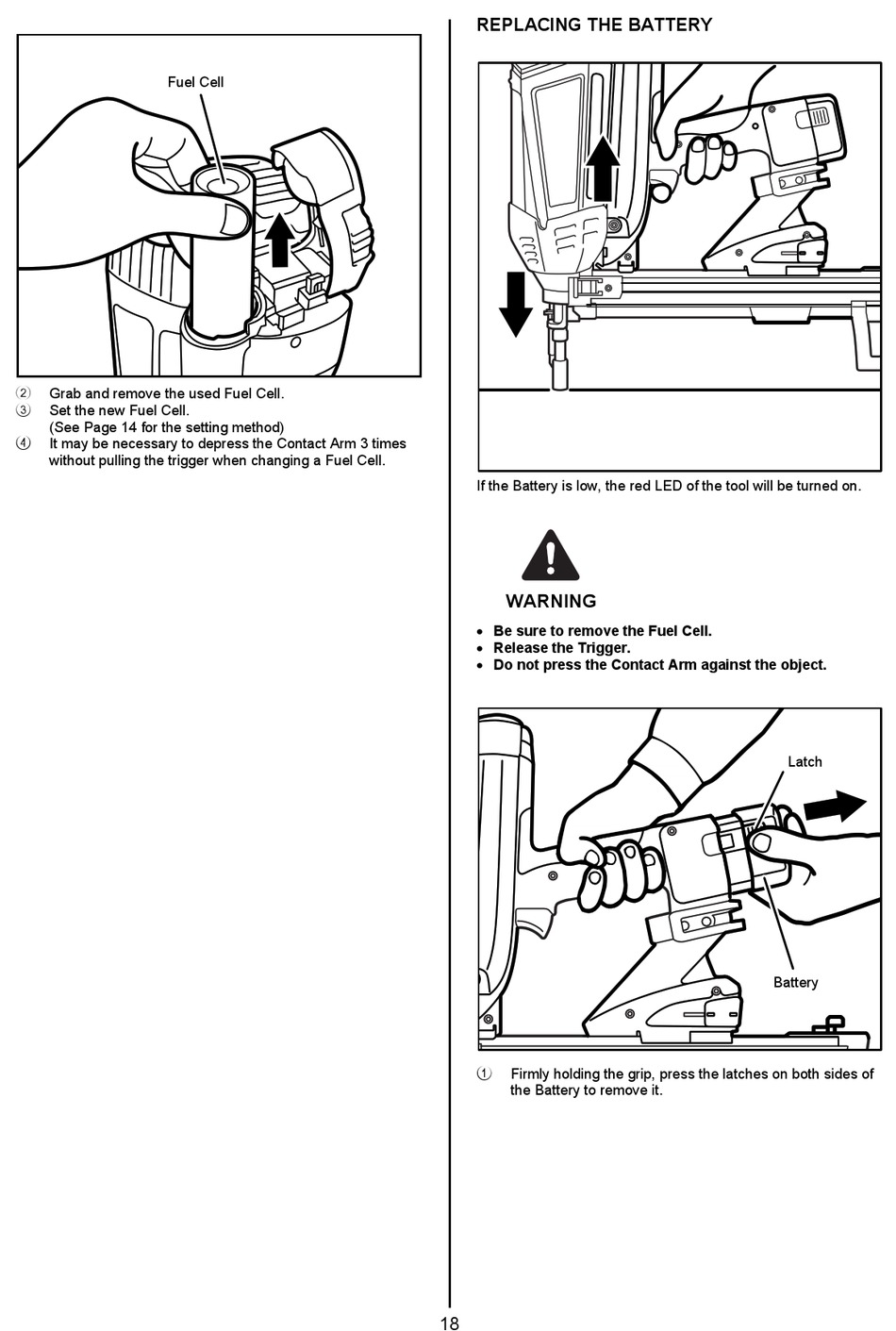

Replacing The Battery - Max GS738C LT Betriebsanleitung

Fuel Cell
2 Grab and remove the used Fuel Cell.
3 Set the new Fuel Cell.
(See Page 14 for the setting method)
4 It may be necessary to depress the Contact Arm 3 times
without pulling the trigger when changing a Fuel Cell.

REPLACING THE BATTERY

If the Battery is low, the red LED of the tool will be turned on.
WARNING
• Be sure to remove the Fuel Cell.
• Release the Trigger.
• Do not press the Contact Arm against the object.
1 Firmly holding the grip, press the latches on both sides of
the Battery to remove it.
18
Latch
Battery
