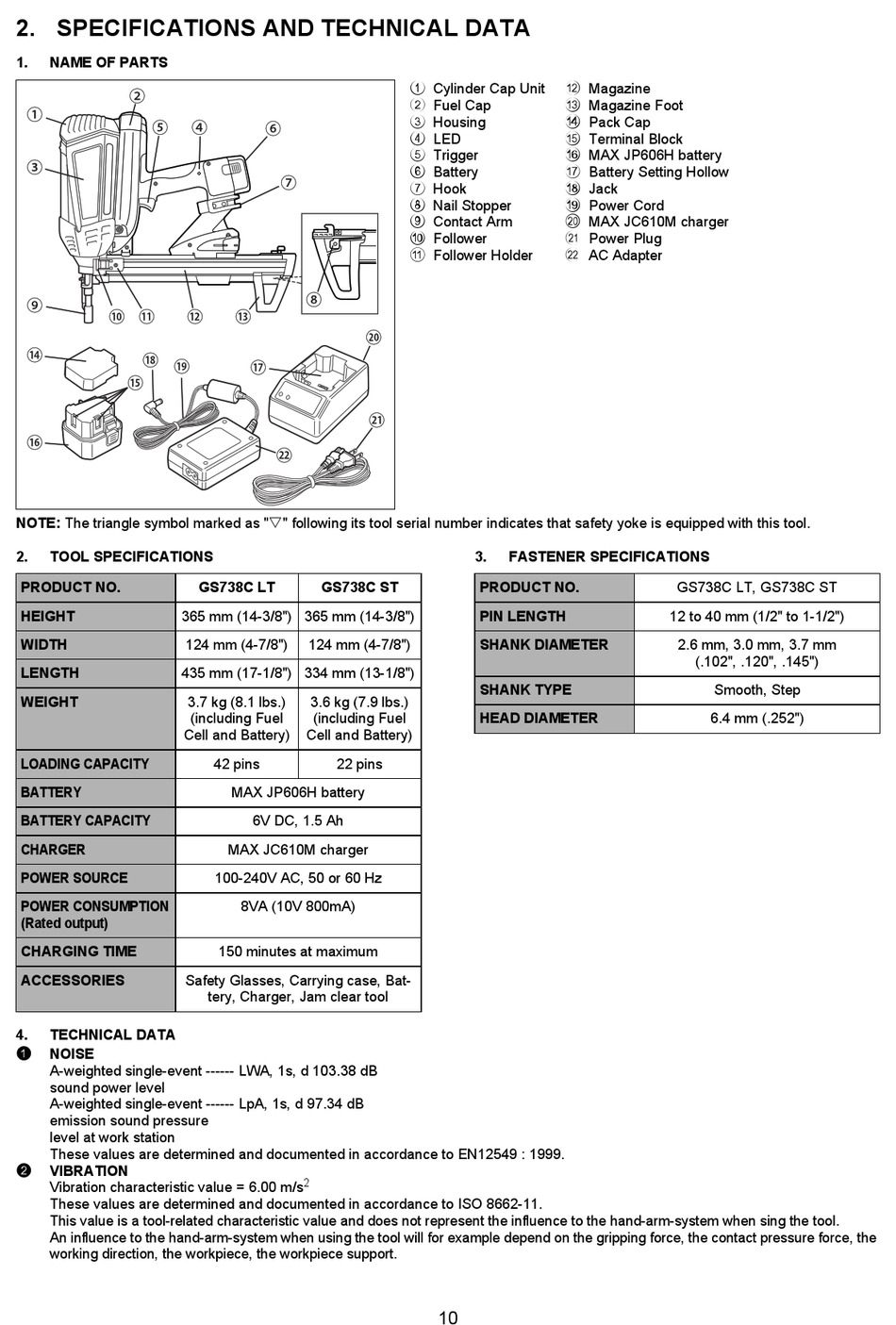

2. SPECIFICATIONS AND TECHNICAL DATA

1. NAME OF PARTS
NOTE: The triangle symbol marked as " " following its tool serial number indicates that safety yoke is equipped with this tool.
2. TOOL SPECIFICATIONS
PRODUCT NO.
HEIGHT 365 mm (14-3/8") 365 mm (14-3/8")
WIDTH
LENGTH 435 mm (17-1/8") 334 mm (13-1/8")
WEIGHT
Cell and Battery)
LOADING CAPACITY
BATTERY
BATTERY CAPACITY
CHARGER
POWER SOURCE
POWER CONSUMPTION
(Rated output)
CHARGING TIME
ACCESSORIES Safety Glasses, Carrying case, Bat-
4. TECHNICAL DATA
1 NOISE
A-weighted single-event ------ LWA, 1s, d 103.38 dB
sound power level
A-weighted single-event ------ LpA, 1s, d 97.34 dB
emission sound pressure
level at work station
These values are determined and documented in accordance to EN12549 : 1999.
2
VIBRATION
Vibration characteristic value = 6.00 m/s
These values are determined and documented in accordance to ISO 8662-11.
This value is a tool-related characteristic value and does not represent the influence to the hand-arm-system when sing the tool.
An influence to the hand-arm-system when using the tool will for example depend on the gripping force, the contact pressure force, the
working direction, the workpiece, the workpiece support.
GS738C LT GS738C ST
124 mm (4-7/8") 124 mm (4-7/8")
3.7 kg (8.1 lbs.) 3.6 kg (7.9 lbs.)
(including Fuel (including Fuel
Cell and Battery)
42 pins 22 pins
MAX JP606H battery
6V DC, 1.5 Ah
MAX JC610M charger
100-240V AC, 50 or 60 Hz
8VA (10V 800mA)
150 minutes at maximum
tery, Charger, Jam clear tool
2
1 Cylinder Cap Unit b Magazine
2 Fuel Cap c Magazine Foot
3 Housing d Pack Cap
4 LED e Terminal Block
5 Trigger f MAX JP606H battery
6 Battery g Battery Setting Hollow
7 Hook h Jack
8 Nail Stopper i Power Cord
9 Contact Arm j MAX JC610M charger
0 Follower k Power Plug
a Follower Holder l AC Adapter
3. FASTENER SPECIFICATIONS
PRODUCT NO.
PIN LENGTH
SHANK DIAMETER
SHANK TYPE
HEAD DIAMETER
10
GS738C LT, GS738C ST
12 to 40 mm (1/2" to 1-1/2")
2.6 mm, 3.0 mm, 3.7 mm
(.102", .120", .145")
Smooth, Step
6.4 mm (.252")
