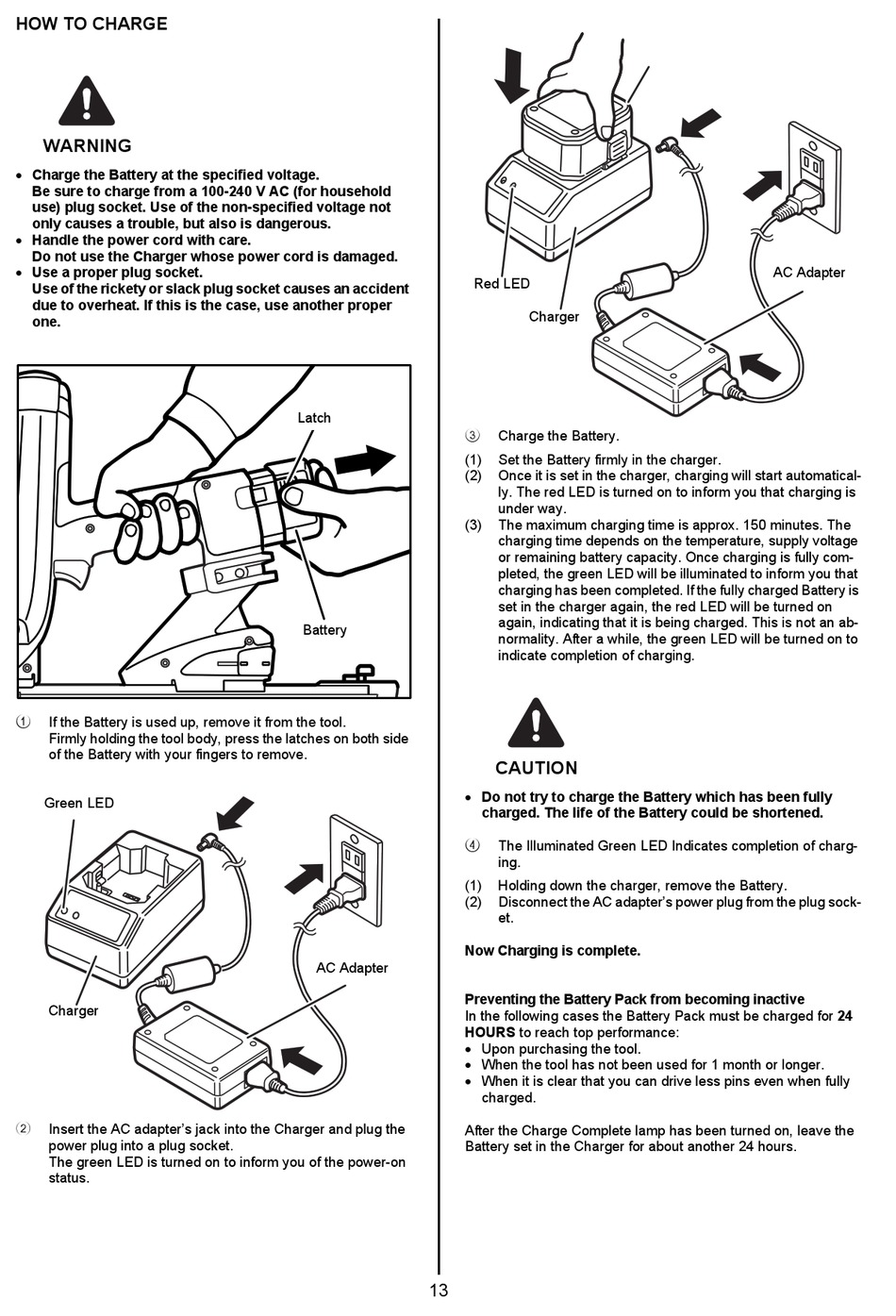

HOW TO CHARGE

WARNING
• Charge the Battery at the specified voltage.
Be sure to charge from a 100-240 V AC (for household
use) plug socket. Use of the non-specified voltage not
only causes a trouble, but also is dangerous.
• Handle the power cord with care.
Do not use the Charger whose power cord is damaged.
• Use a proper plug socket.
Use of the rickety or slack plug socket causes an accident
due to overheat. If this is the case, use another proper
one.
1 If the Battery is used up, remove it from the tool.
Firmly holding the tool body, press the latches on both side
of the Battery with your fingers to remove.
Green LED
Charger
2 Insert the AC adapter's jack into the Charger and plug the
power plug into a plug socket.
The green LED is turned on to inform you of the power-on
status.
Latch
Battery
AC Adapter
13
Red LED
Charger
3 Charge the Battery.
(1) Set the Battery firmly in the charger.
(2) Once it is set in the charger, charging will start automatical-
ly. The red LED is turned on to inform you that charging is
under way.
(3) The maximum charging time is approx. 150 minutes. The
charging time depends on the temperature, supply voltage
or remaining battery capacity. Once charging is fully com-
pleted, the green LED will be illuminated to inform you that
charging has been completed. If the fully charged Battery is
set in the charger again, the red LED will be turned on
again, indicating that it is being charged. This is not an ab-
normality. After a while, the green LED will be turned on to
indicate completion of charging.
CAUTION
• Do not try to charge the Battery which has been fully
charged. The life of the Battery could be shortened.
4 The Illuminated Green LED Indicates completion of charg-
ing.
(1) Holding down the charger, remove the Battery.
(2) Disconnect the AC adapter's power plug from the plug sock-
et.
Now Charging is complete.
Preventing the Battery Pack from becoming inactive
In the following cases the Battery Pack must be charged for 24
HOURS to reach top performance:
• Upon purchasing the tool.
• When the tool has not been used for 1 month or longer.
• When it is clear that you can drive less pins even when fully
charged.
After the Charge Complete lamp has been turned on, leave the
Battery set in the Charger for about another 24 hours.
