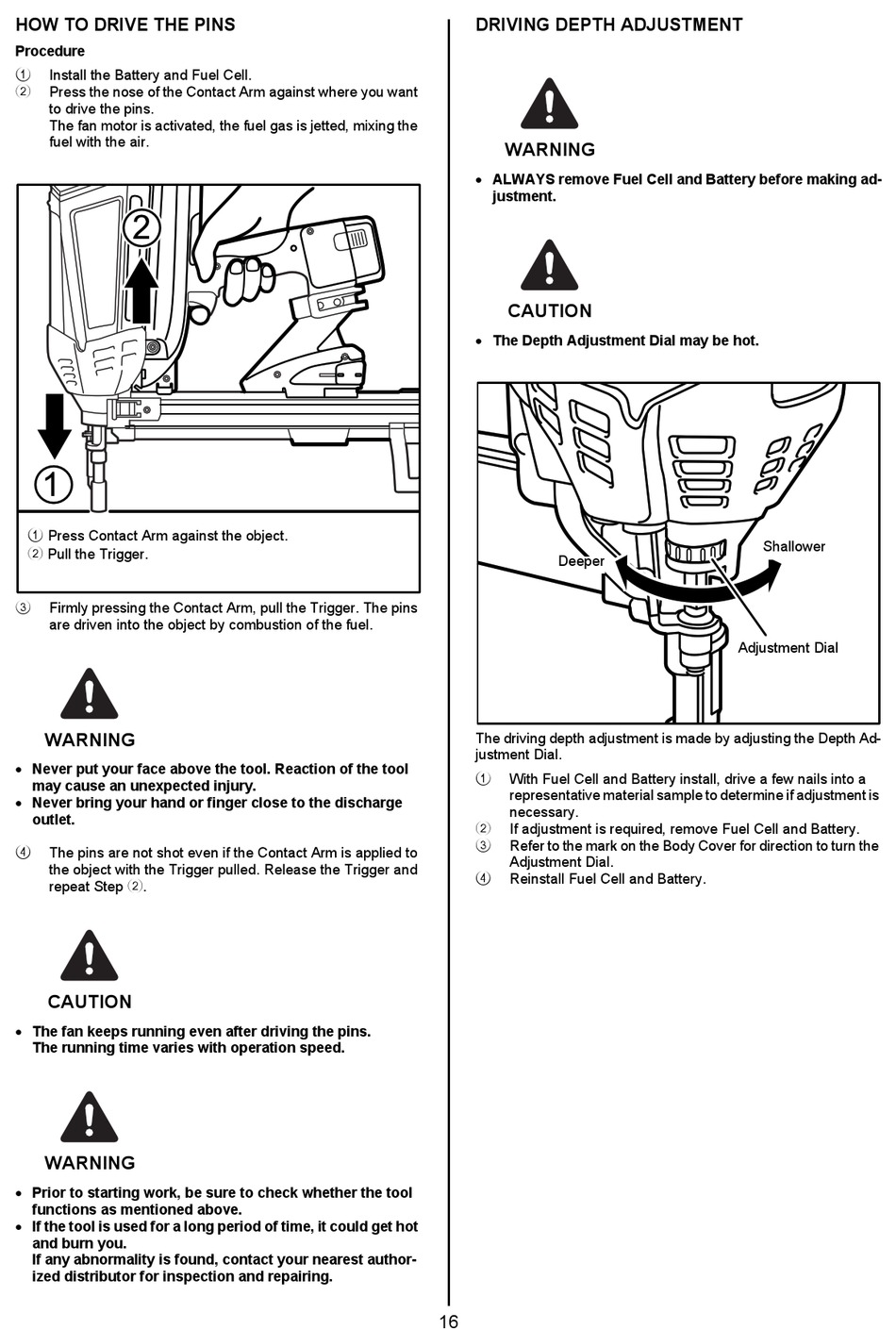

HOW TO DRIVE THE PINS
Procedure
Install the Battery and Fuel Cell.
1
2 Press the nose of the Contact Arm against where you want
to drive the pins.
The fan motor is activated, the fuel gas is jetted, mixing the
fuel with the air.
1 Press Contact Arm against the object.
2 Pull the Trigger.
Firmly pressing the Contact Arm, pull the Trigger. The pins
3
are driven into the object by combustion of the fuel.
WARNING
• Never put your face above the tool. Reaction of the tool
may cause an unexpected injury.
• Never bring your hand or finger close to the discharge
outlet.
4 The pins are not shot even if the Contact Arm is applied to
the object with the Trigger pulled. Release the Trigger and
repeat Step 2.
CAUTION
• The fan keeps running even after driving the pins.
The running time varies with operation speed.
WARNING
• Prior to starting work, be sure to check whether the tool
functions as mentioned above.
• If the tool is used for a long period of time, it could get hot
and burn you.
If any abnormality is found, contact your nearest author-
ized distributor for inspection and repairing.
DRIVING DEPTH ADJUSTMENT
WARNING
• ALWAYS remove Fuel Cell and Battery before making ad-
justment.
CAUTION
• The Depth Adjustment Dial may be hot.
Deeper
The driving depth adjustment is made by adjusting the Depth Ad-
justment Dial.
1 With Fuel Cell and Battery install, drive a few nails into a
representative material sample to determine if adjustment is
necessary.
2 If adjustment is required, remove Fuel Cell and Battery.
3 Refer to the mark on the Body Cover for direction to turn the
Adjustment Dial.
4 Reinstall Fuel Cell and Battery.
16
Shallower
Adjustment Dial
