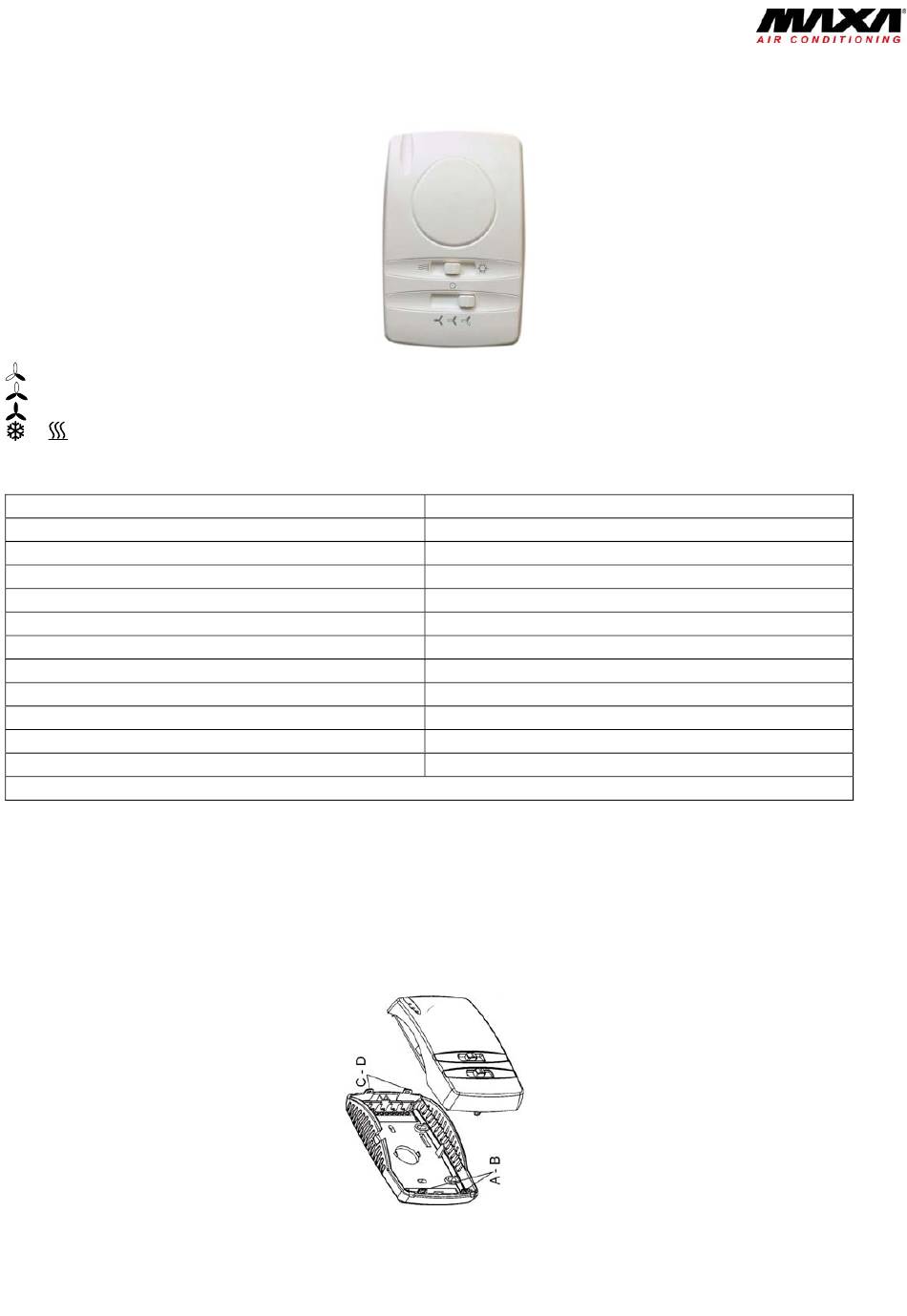

Fan Coil Controller: Vrl - MAXA LWF 13 Benutzer- Und Installationsanleitung

1. CONTROL DEVICE CHARACTERISTICS VRL
: Fan speed min
: Fan speed med
: Fan speed max
e : Operation
Note: Operating modes slider, used only for lighting function (ON/OFF).
2. TECHNICAL SPECIFICATIONS:
Power voltage
Power frequency
Maximum input power
Maximum admissible current on contacts
Insulation class
Protection grade
Operating temperature
Operating humidity (non condensing)
Storing temperature
Storing humidity (non condensing)
Casing
Dimensions mm (Lxwxh)
Installation: wall-mouted using the rear hood as drilling template
3. ALLOWED USES
For safety reasons the implement must be operated following manufacturer instructions. Notably, because of the hazards entailed, under
ordinary use conditions live and/or heating parts must not be accessed. The implement must be protected from water and dust.
4. RESTRICTED USES
Uses other than allowed are forbidden. The relay contacts supplied are functional-type and are consequently liable to faults: any
protection measure envisaged by the applicable regulations or suggested by common sense as regards obvious safety needs, must be
carried out outside the implement.
5. INSTALLATION
•
Open the device by applying a straight-bit screwdriver to the ad-hoc slots A, B, C, D (see fig.1).
•
Lay the rear hood of the implement against the wall and mark the 4 wall mounting holes that need to
• Locate the two terminal strips (fig. 2.)

FAN COIL CONTROLLER: VRL

230V ~ ±10%
50/60 Hz
9VA - 1,3W max
1A max (230V~ FAN)
II
IP30
0÷60°C
10÷90%
-20°÷85°C
10÷90%
Plastic resin PC+ABS
120x80x40
fig. 1
be drilled.
