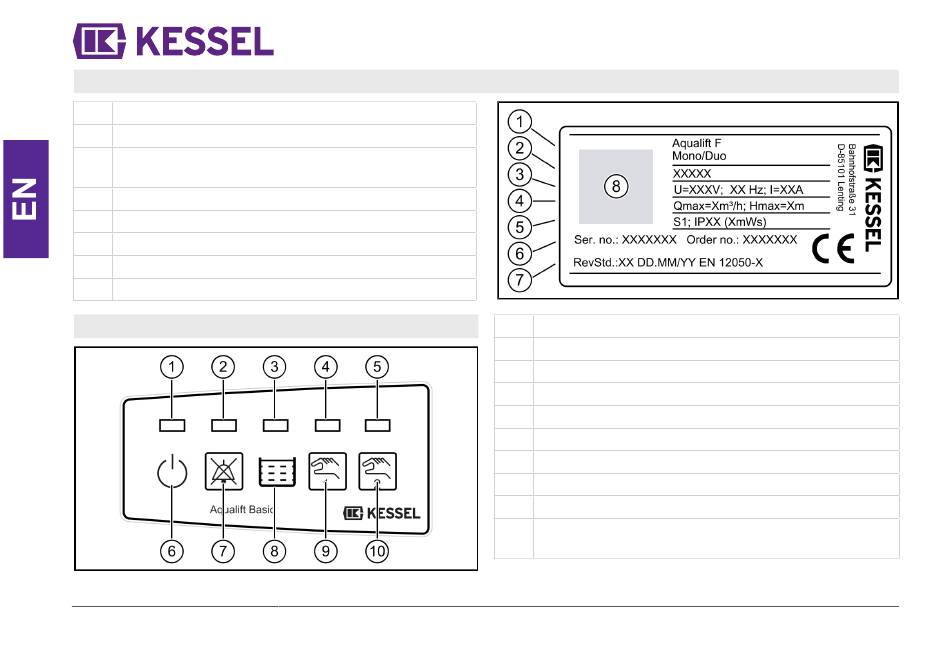

Type plate

(1) Name of the system
(2) Article number
(3) Connection voltage and connection fre-
quency, current consumption range
(4) Maximum delivery rate / pumping height
(5) Operating mode + protection rating (IP)
(6) Serial number
(7) Hardware revision status
(8)
3.6 Displays, operating keys and their functions
60 / 144
QR code
Pumping station / Installation and operating manual
(1) Ready for operation LED (green)
(2) Alarm LED (red)
(3) LED system tank switch-on level reached (orange)
(4) LED wastewater pump running (orange)
(5) LED wastewater pump running (orange, only Duo)
(6) Operation symbol
(7) Switch off (acknowledge) alarm button
(8) System tank symbol
(9) Wastewater pump on (manual) button
(10) Wastewater pump on but-
ton (manual), (only Duo Tronic)
016-102_01
