The multimeters UNITEST Hexagon 710 and Hexagon
720 are equipped with an acoustic socket control fea-
ture (ABK) [ASC]. When wrongly connecting a test
lead, an acoustical signal is audible and the message
InERR is displayed.

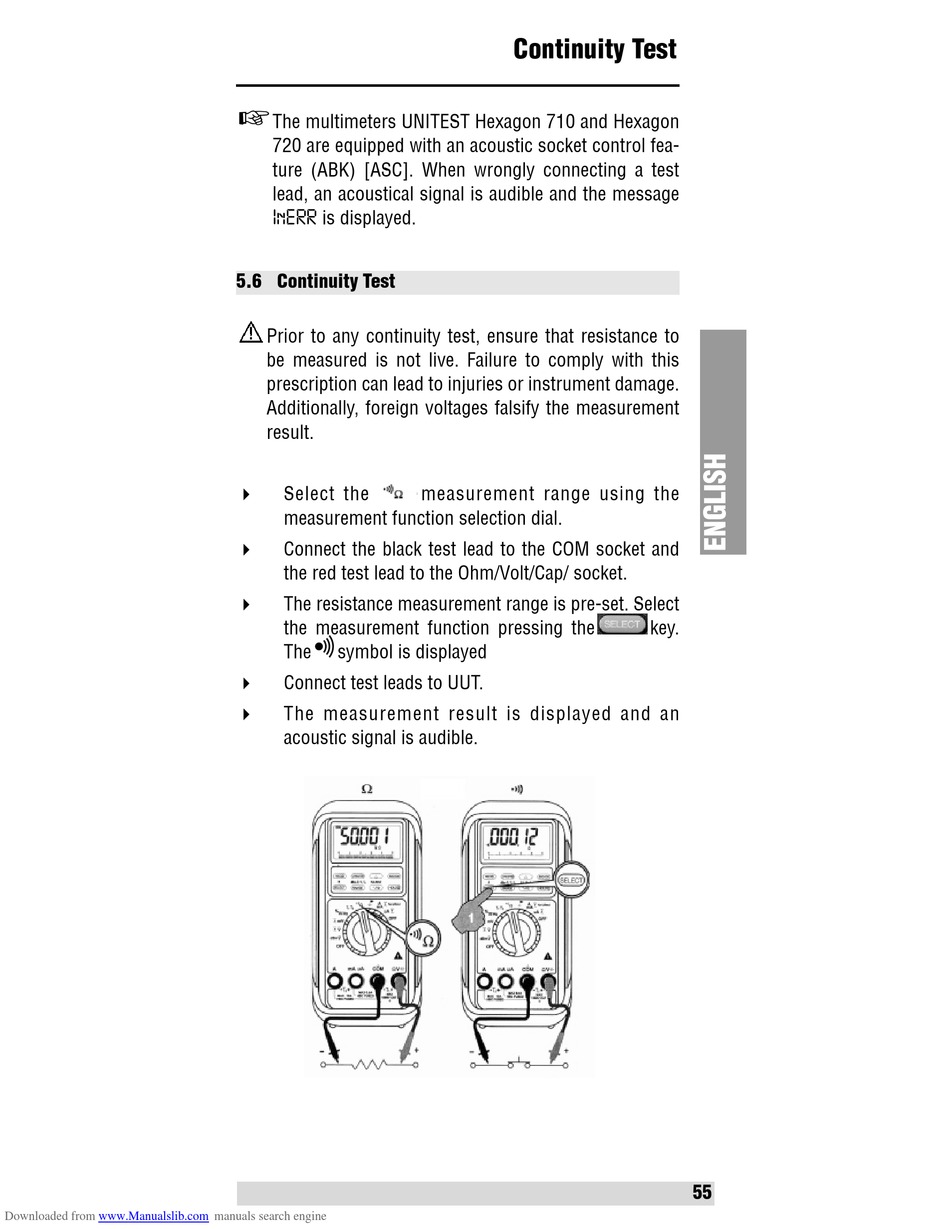

5.6 Continuity Test

Prior to any continuity test, ensure that resistance to
be measured is not live. Failure to comply with this
prescription can lead to injuries or instrument damage.
Additionally, foreign voltages falsify the measurement
result.
"
Select the
measurement function selection dial.
"
Connect the black test lead to the COM socket and
the red test lead to the Ohm/Volt/Cap/ socket.
"
The resistance measurement range is pre-set. Select
the measurement function pressing the
The symbol is displayed
"
Connect test leads to UUT.
"
The measurement result is displayed and an
acoustic signal is audible.
manuals search engine
Continuity Test
measurement range using the
key.
