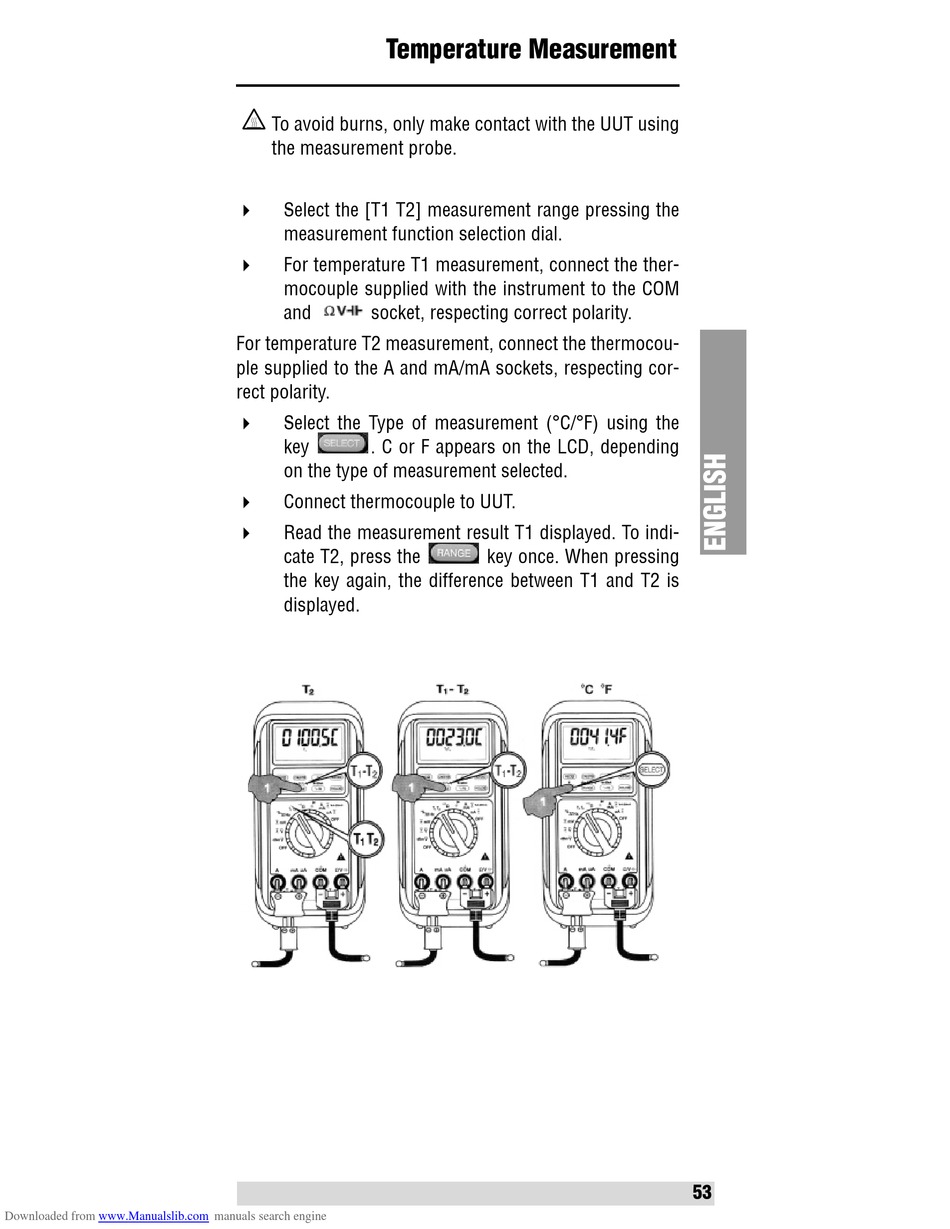

Temperature Measurement
To avoid burns, only make contact with the UUT using
the measurement probe.
"
Select the [T1 T2] measurement range pressing the
measurement function selection dial.
"
For temperature T1 measurement, connect the ther-
mocouple supplied with the instrument to the COM
and socket, respecting correct polarity.
For temperature T2 measurement, connect the thermocou-
ple supplied to the A and mA/mA sockets, respecting cor-
rect polarity.
"
Select the Type of measurement (°C/°F) using the
key . C or F appears on the LCD, depending
on the type of measurement selected.
"
Connect thermocouple to UUT.
"
Read the measurement result T1 displayed. To indi-
cate T2, press the
the key again, the difference between T1 and T2 is
displayed.
manuals search engine
key once. When pressing
