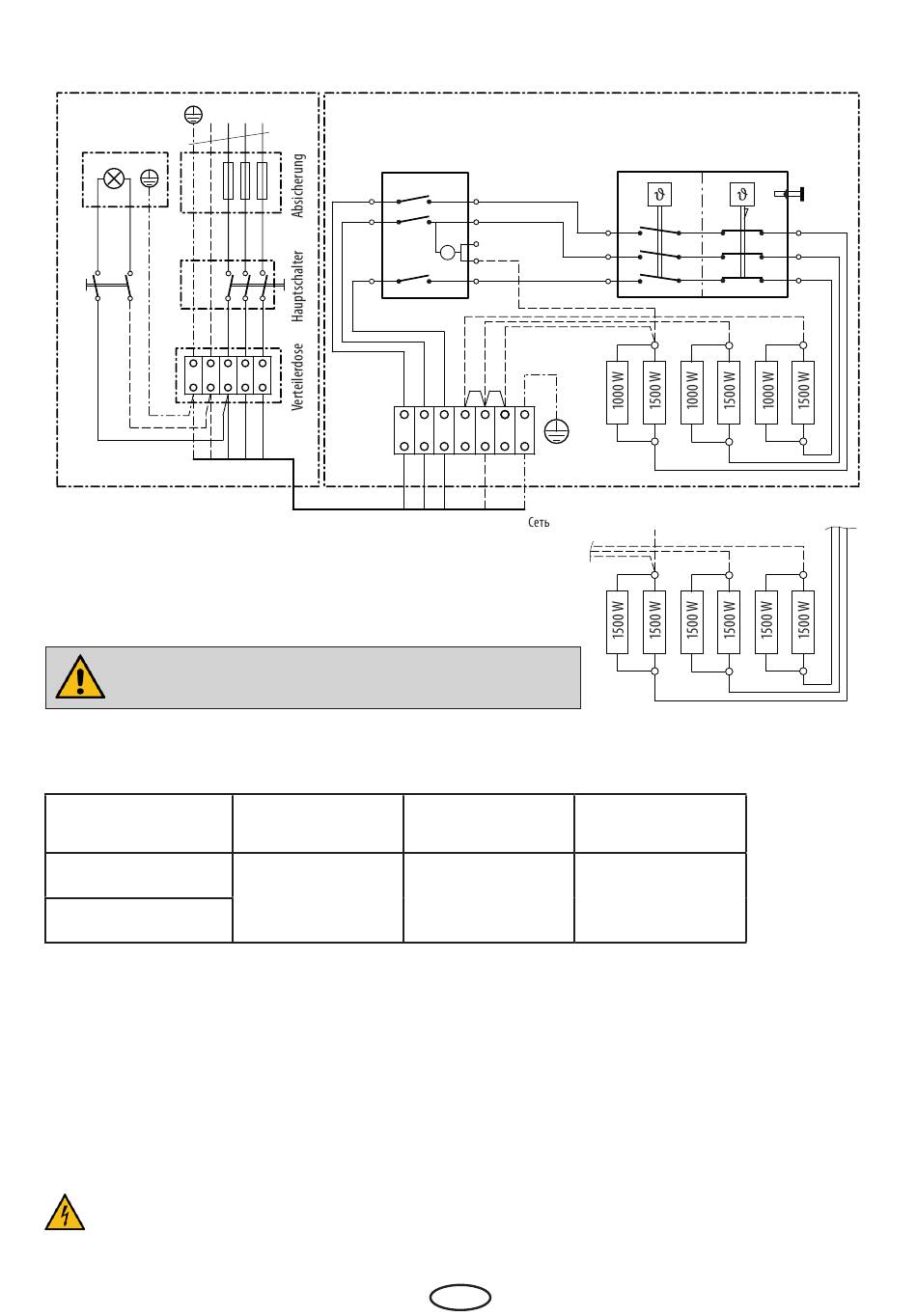

Connection example for 400V 3N AC
N
Leuchte
bauseitige Installation
Caution! Make sure to connect the neutral wire N.
Specifications for default connection 400V 3N AC
Power acc. DIN
7,5 kW
9,0 kW
All cross sections of a line are minimum diameters in mm² (Copper line).
To be connected by a qualified electrician:
Drill an approx. 10 mm hole in the cabin wall near the entry area of the stove's connecting cable.
Feed the connecting cable through the borehole to the outside and connect to the power supply
in a distribution box suitable for wet rooms.
Please observe the wiring diagram and the regulations of the local power supplier (TAB 2000) and
the VDE.
Caution! An adequate fuse and a mains circuit breaker must be installed in the heater's
power supply line on site.
30
L1 L2 L3
5 x 2,5²
Zeitschaltuhr
timer
A
A
B
5 x 1,5²
max. 10 m
Electrical connection
400 V 3N AC 50 Hz
A1
A1
M
B1
L1 L2 L3 N N N PE
Netz / Mains / Réseau /
400V 3N AC
Fuse protection
3 x 16 A
EN
Sicherheits
temperaturbegrenzer
Thermostat
overheat safty
Thermostat
shutdown device
A1
A2
A3
7,5 kW
9,0 kW
Connecting cable
main - heater
5 x 1,5 mm²
reset
B1
B2
B3
