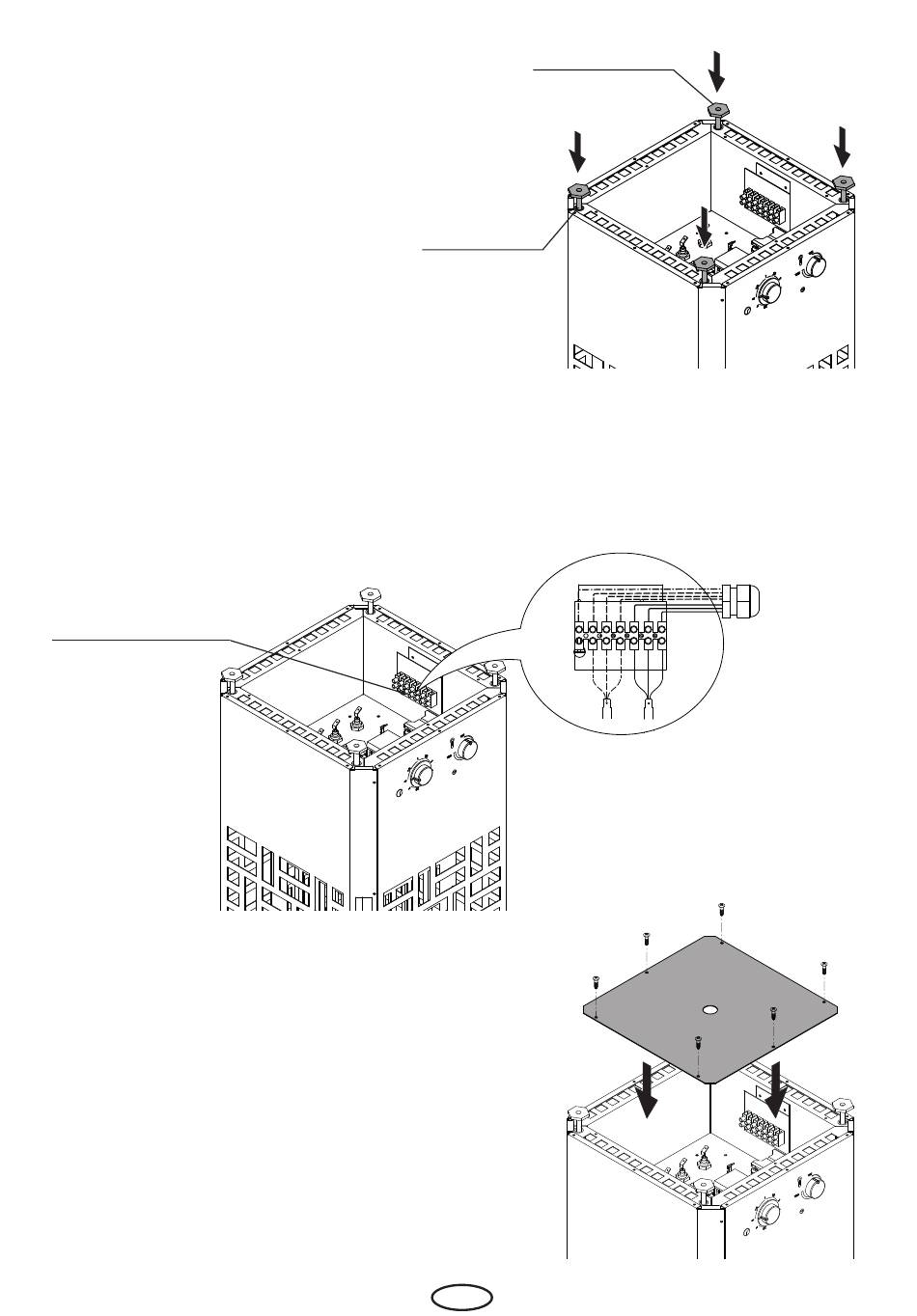

Mounting of feet

• Remove the cover of the terminal box
• Screw in the supplied feet in the corres- pond-
ing threaded bushes and secure them with the
counter nuts (Fig. 4).

Connect the cable(s)

• Pull the connecting cable(s) through the opening(s) in the terminal box cover panel with fitted
cable gland(s).
• Make connections as per connection diagram (Fig. 5)
• Standard connection diagram is attached on the inner side of the cover panel. Pay attention to
the special connection scheme by 230V 1N connection..
terminal ban
Fig. 5
• Make sure that all wires are properly secured
in the terminals.
• Close the terminal box with cover panel using
the screws. Secure the cable with the cable
gland.
Adjustable feet
threaded feet
mounts
Fig. 4
Fig. 6
