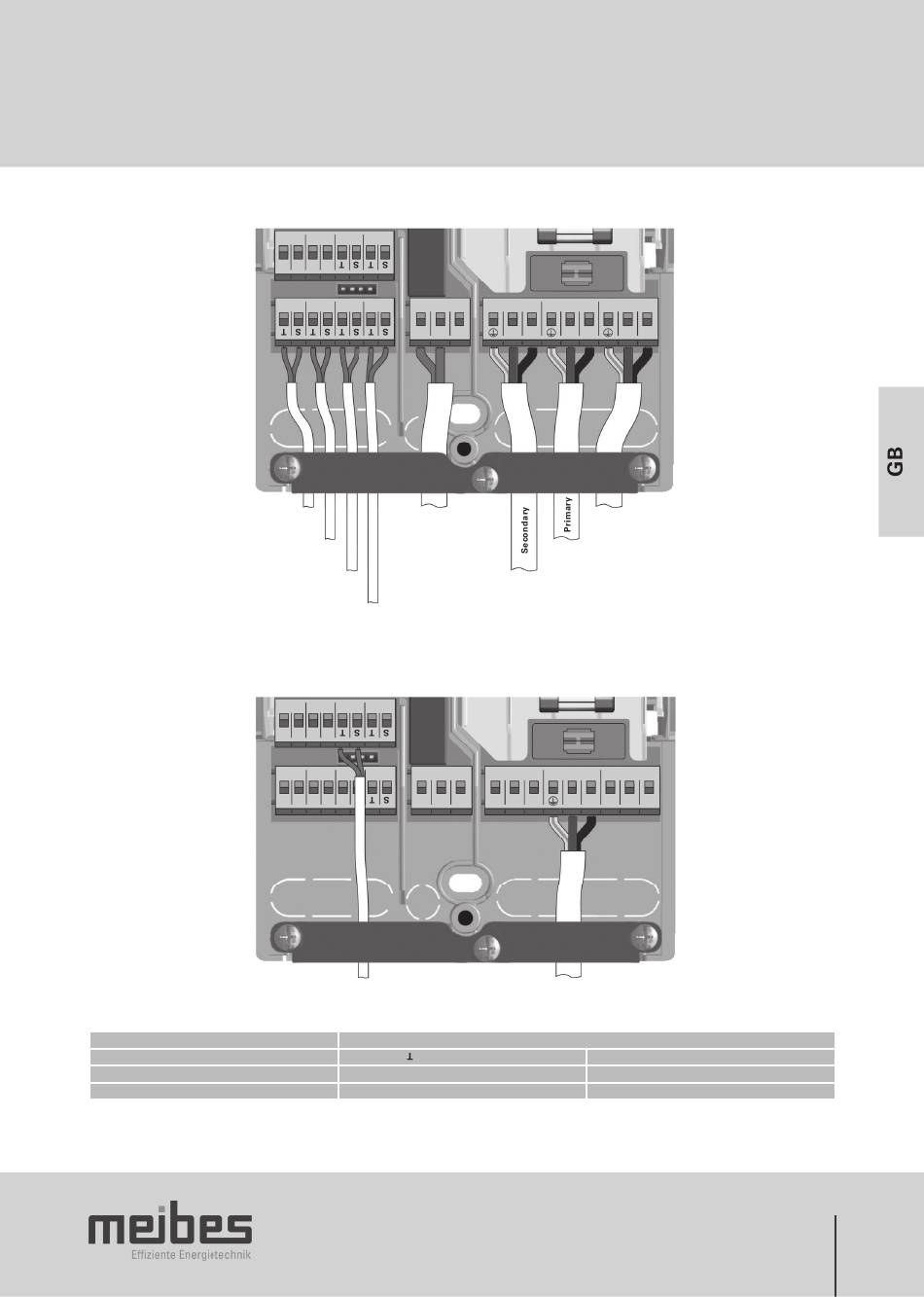

Note: The variants
Solar XL with integrated
controller are wired.
Collector sensor 1
(installed by the customer)
Storage tank sensor 1 lower
(installed by the customer)
Storage tank sensor 1 upper
Heat exchanger sensor
(connected in the factory)
High-efficiency pump
A high-efficiency pump can be connected to RO1 or RO2. The control signal for the pump is transmitted to TS7 / TS8 /
(TS4). TS4 is therefore no longer available as an input. The control signal can be an analog voltage 0 - 10V or a PWM signal.
TS7/TS8/(TS4):
PWM control signal
for the high-efficiency pump
Left-hand terminal: GND
Right-hand terminal: Signal
Please refer to the pump specification for detailed information, e.g. colours of the controller wiring:
HE pumps
Wilo Yonos PARA PWM
Grundfos UPM3 Hybrid
TS7 TS8
TS1 TS2 TS3 TS4 REL
11 14
Heating boiler
connection
(optional)
(optional)
TS7 TS8
TS4
Earth (GND)
Blue
Brown
FUSE
5x20
RO2 RO1 Power
N L" N L' N L
Mains power supply
(provided by the customer)
Solar circuit pump 1
(connected in the factory)
Heat exchanger pump
(connected in the factory)
FUSE 5x20
RO1
N L'
Terminal colours for the controller wiring
Signal S
Brown
Brown
RO1 or RO2:
Power supply 230 V for the
high-efficiency pump
