Meibes Solar XL Technische Information Für Montage Und Betrieb Seite 27

Solar separation system
Solar XL – special variant with primary switching valve for 2 collector circuits

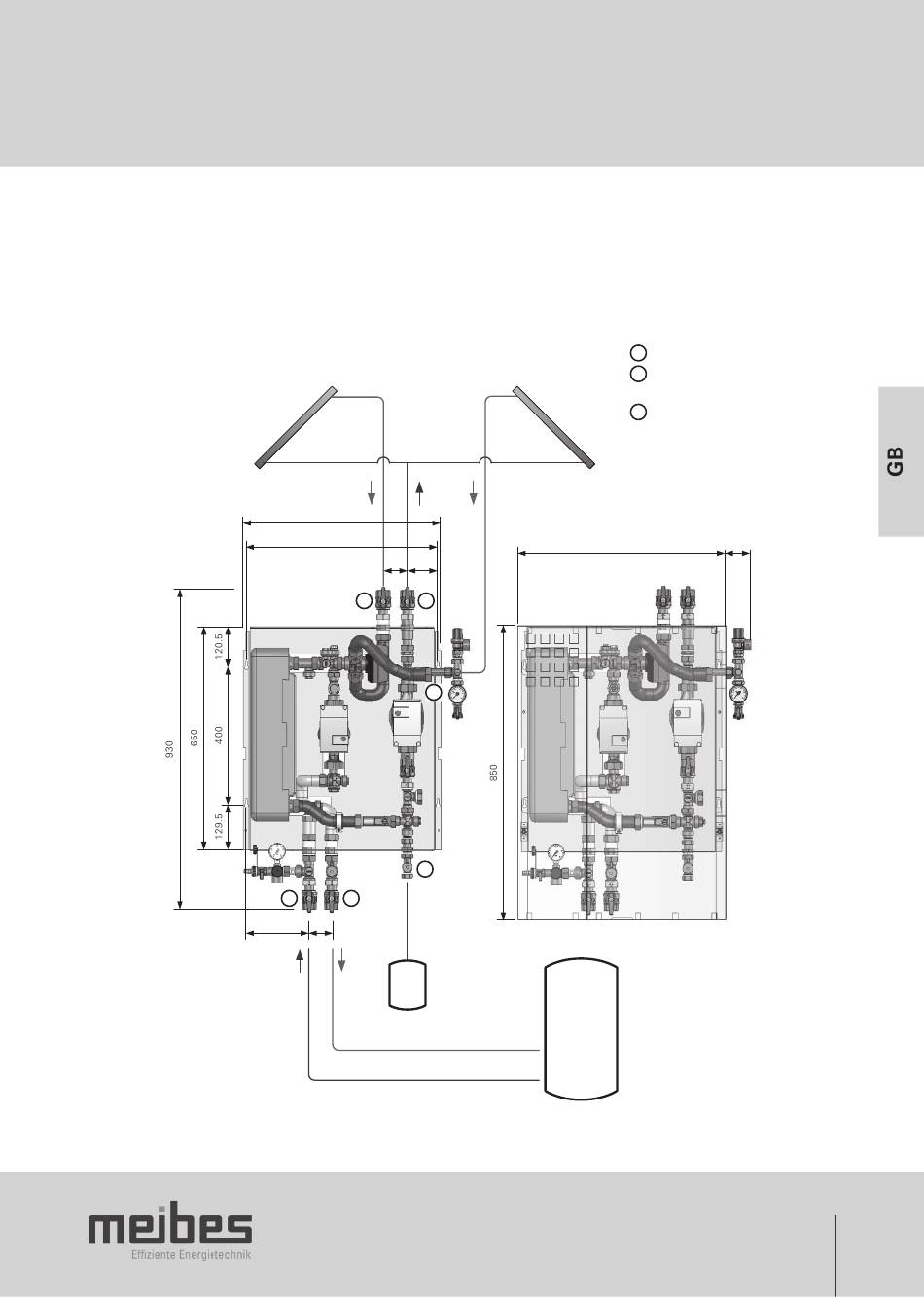

Connection diagram:
45140.26
576
562
70 89
A A
C
B
A A
185 65
Membrane
expansion tank
Ball valve 1" internal thread
A
Nipple ¾"external thread
B
(flat sealing)
Union nut 1" internal thread
C
(flat sealing)
600 71
Deep cover approx. 210 mm
Solar tank
