The number of blinks of the leds next to the alarm symbol represents the type of error. There is a legend on the label.

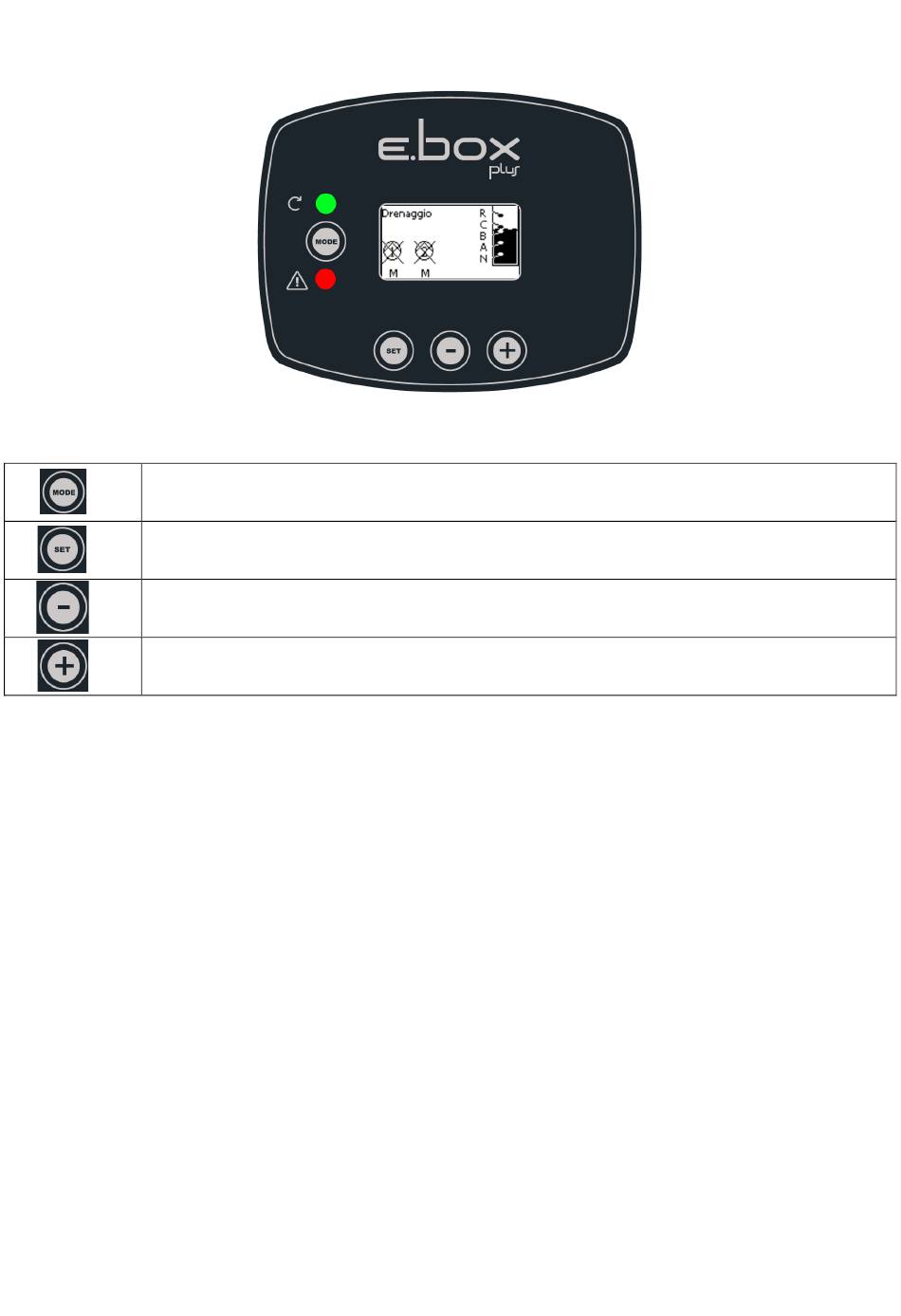

E.box display label. The functions of the keys are summed up in Table 14.
The MODE key allows you to move on to the next items in the same menu. Holding it down for at least 1 sec allows you to
skip to the previous menu item.
The SET key allows you to leave the current menu.
Decreases the current parameter (if it is an editable parameter). The decreasing speed increases as time passes.
Increases the current parameter (if it is an editable parameter). The increasing speed increases as time passes.
9.1

Status line

When viewing the parameters, at the bottom of the display, there is the system status, showing the status of the pumps, the status of the floats if
present, and the status of the sensors if present. See Figure 58: Selection of the drop-down menus.
9.2

Menus

The complete structure of all the menus and of all the items of which they are composed is shown in Table 16.
9.3

Access to the menus

The various menus can be accessed from the main menu in two ways:

1. Direct access with a combination of keys.

2. Access by name with a drop-down menu.
Direct access with a combination of keys
The desired menu can be accessed directly by pressing simultaneously the appropriate combination of keys (for example MODE SET to enter the
Set Point menu) and the various items in the menu are scrolled with the MODE key.
Table 15 shows the menus that can be reached with the combinations of keys.
ENGLISH

Figure 57: Label, keys and display

Table 14: Key functions
