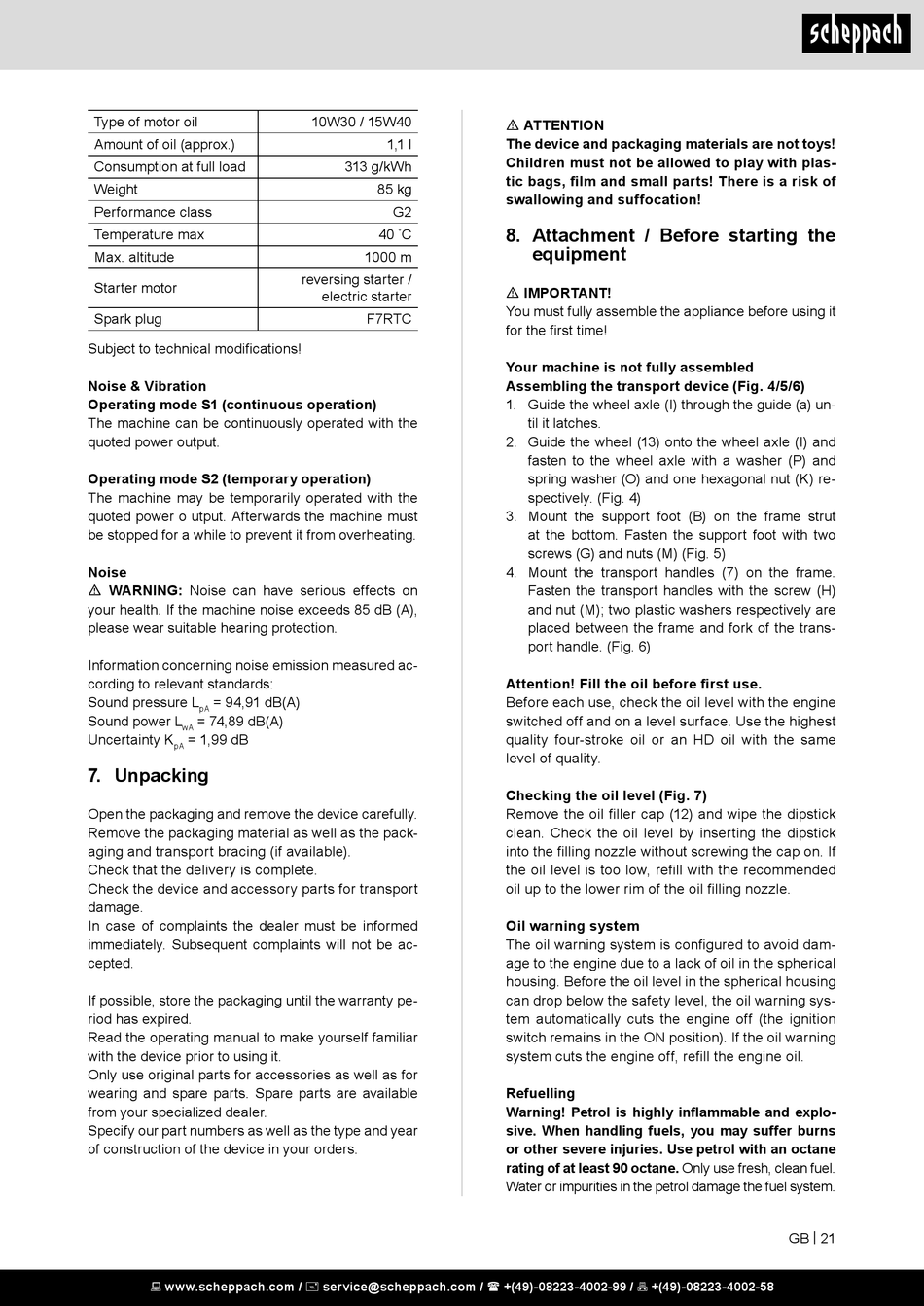

Type of motor oil
Amount of oil (approx.)
Consumption at full load
Weight
Performance class
Temperature max
Max. altitude
Starter motor
Spark plug
Subject to technical modifications!
Noise & Vibration
Operating mode S1 (continuous operation)
The machine can be continuously operated with the
quoted power output.
Operating mode S2 (temporary operation)
The machine may be temporarily operated with the
quoted power o utput. Afterwards the machine must
be stopped for a while to prevent it from overheating.
Noise
m WARNING: Noise can have serious effects on
your health. If the machine noise exceeds 85 dB (A),
please wear suitable hearing protection.
Information concerning noise emission measured ac-
cording to relevant standards:
Sound pressure L = 94,91 dB(A)
pA
Sound power L = 74,89 dB(A)
wA
Uncertainty K = 1,99 dB
pA

7. Unpacking

Open the packaging and remove the device carefully.
Remove the packaging material as well as the pack-
aging and transport bracing (if available).
Check that the delivery is complete.
Check the device and accessory parts for transport
damage.
In case of complaints the dealer must be informed
immediately. Subsequent complaints will not be ac-
cepted.
If possible, store the packaging until the warranty pe-
riod has expired.
Read the operating manual to make yourself familiar
with the device prior to using it.
Only use original parts for accessories as well as for
wearing and spare parts. Spare parts are available
from your specialized dealer.
Specify our part numbers as well as the type and year
of construction of the device in your orders.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
10W30 / 15W40
1,1 l
313 g/kWh
85 kg
G2
40 C
°
1000 m
reversing starter /
electric starter
F7RTC
m ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!
8. Attachment / Before starting the
equipment
m IMPORTANT!
You must fully assemble the appliance before using it
for the first time!
Your machine is not fully assembled
Assembling the transport device (Fig. 4/5/6)
1. Guide the wheel axle (I) through the guide (a) un-
til it latches.
2. Guide the wheel (13) onto the wheel axle (I) and
fasten to the wheel axle with a washer (P) and
spring washer (O) and one hexagonal nut (K) re-
spectively. (Fig. 4)
3. Mount the support foot (B) on the frame strut
at the bottom. Fasten the support foot with two
screws (G) and nuts (M) (Fig. 5)
4. Mount the transport handles (7) on the frame.
Fasten the transport handles with the screw (H)
and nut (M); two plastic washers respectively are
placed between the frame and fork of the trans-
port handle. (Fig. 6)
Attention! Fill the oil before first use.
Before each use, check the oil level with the engine
switched off and on a level surface. Use the highest
quality four-stroke oil or an HD oil with the same
level of quality.
Checking the oil level (Fig. 7)
Remove the oil filler cap (12) and wipe the dipstick
clean. Check the oil level by inserting the dipstick
into the filling nozzle without screwing the cap on. If
the oil level is too low, refill with the recommended
oil up to the lower rim of the oil filling nozzle.
Oil warning system
The oil warning system is configured to avoid dam-
age to the engine due to a lack of oil in the spherical
housing. Before the oil level in the spherical housing
can drop below the safety level, the oil warning sys-
tem automatically cuts the engine off (the ignition
switch remains in the ON position). If the oil warning
system cuts the engine off, refill the engine oil.
Refuelling
Warning! Petrol is highly inflammable and explo-
sive. When handling fuels, you may suffer burns
or other severe injuries. Use petrol with an octane
rating of at least 90 octane. Only use fresh, clean fuel.
Water or impurities in the petrol damage the fuel system.
