BigRep ONE
›

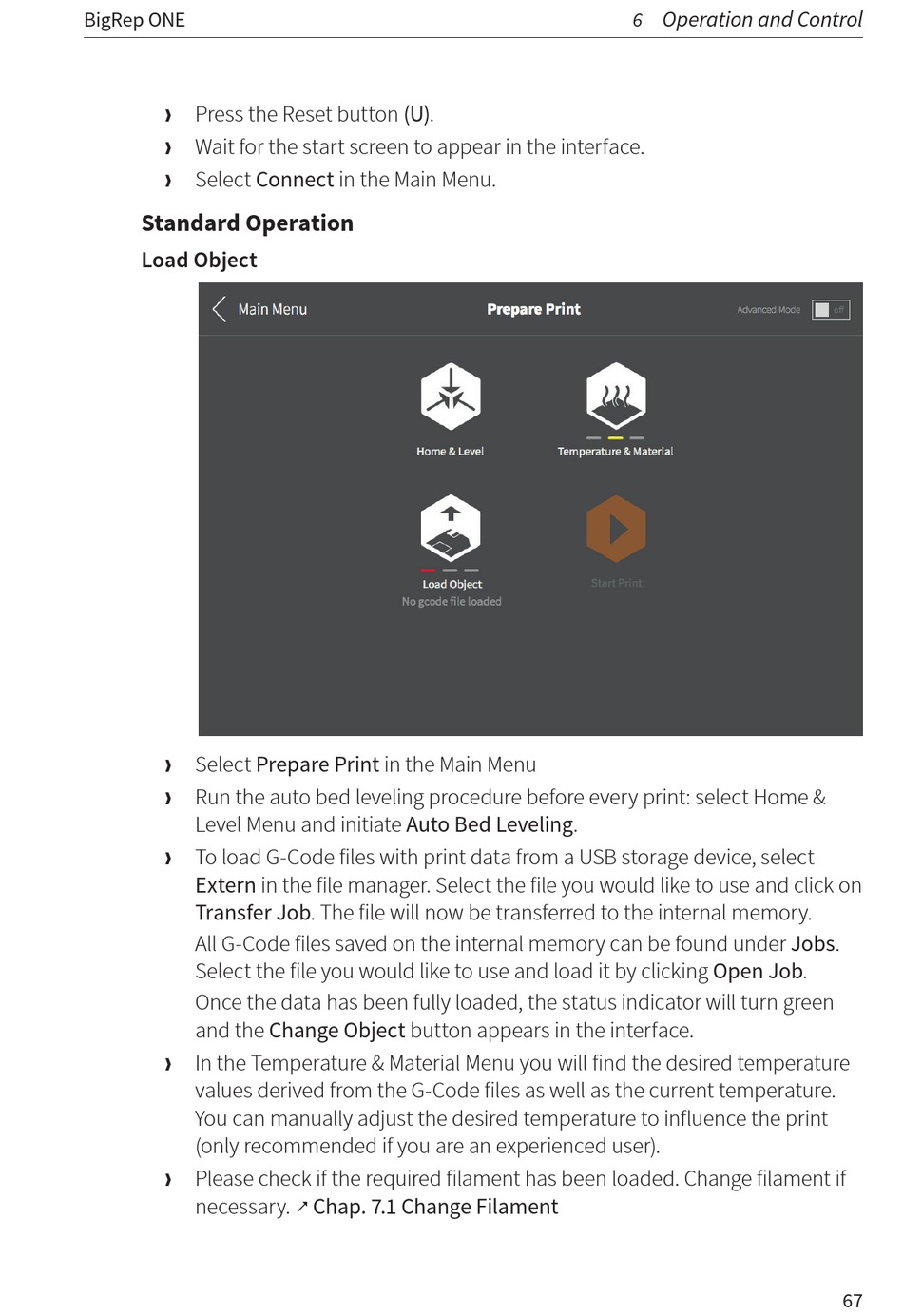

Press the Reset button (U).
›
Wait for the start screen to appear in the interface.
›
Select Connect in the Main Menu.

Standard Operation

Load Object
›
Select Prepare Print in the Main Menu
›
Run the auto bed leveling procedure before every print: select Home &
Level Menu and initiate Auto Bed Leveling.
›
To load G-Code files with print data from a USB storage device, select
Extern in the file manager. Select the file you would like to use and click on
Transfer Job. The file will now be transferred to the internal memory.
All G-Code files saved on the internal memory can be found under Jobs.
Select the file you would like to use and load it by clicking Open Job.
Once the data has been fully loaded, the status indicator will turn green
and the Change Object button appears in the interface.
›
In the Temperature & Material Menu you will find the desired temperature
values derived from the G-Code files as well as the current temperature.
You can manually adjust the desired temperature to influence the print
(only recommended if you are an experienced user).
›
Please check if the required filament has been loaded. Change filament if
necessary. Chap. 7.1 Change Filament
&
Operation and Control
6
67
