5.

Interface

The BigRep ONE is operated via the Graphical User Interface (GUI – referred to as
the interface here) on the touchscreen (R).
This chapter explains the menu structure as well as individual control panels (but-
tons). Detailed descriptions of the individual steps are provided in
ration and Control.
The interface contains a help section which can be accessed by selecting Help.
If a function is not available, it is displayed dark gray.
Experienced users can also work with the Advanced Mode, which can be acces-
sed via the appropriate button in the menu. For more information
Advanced Mode

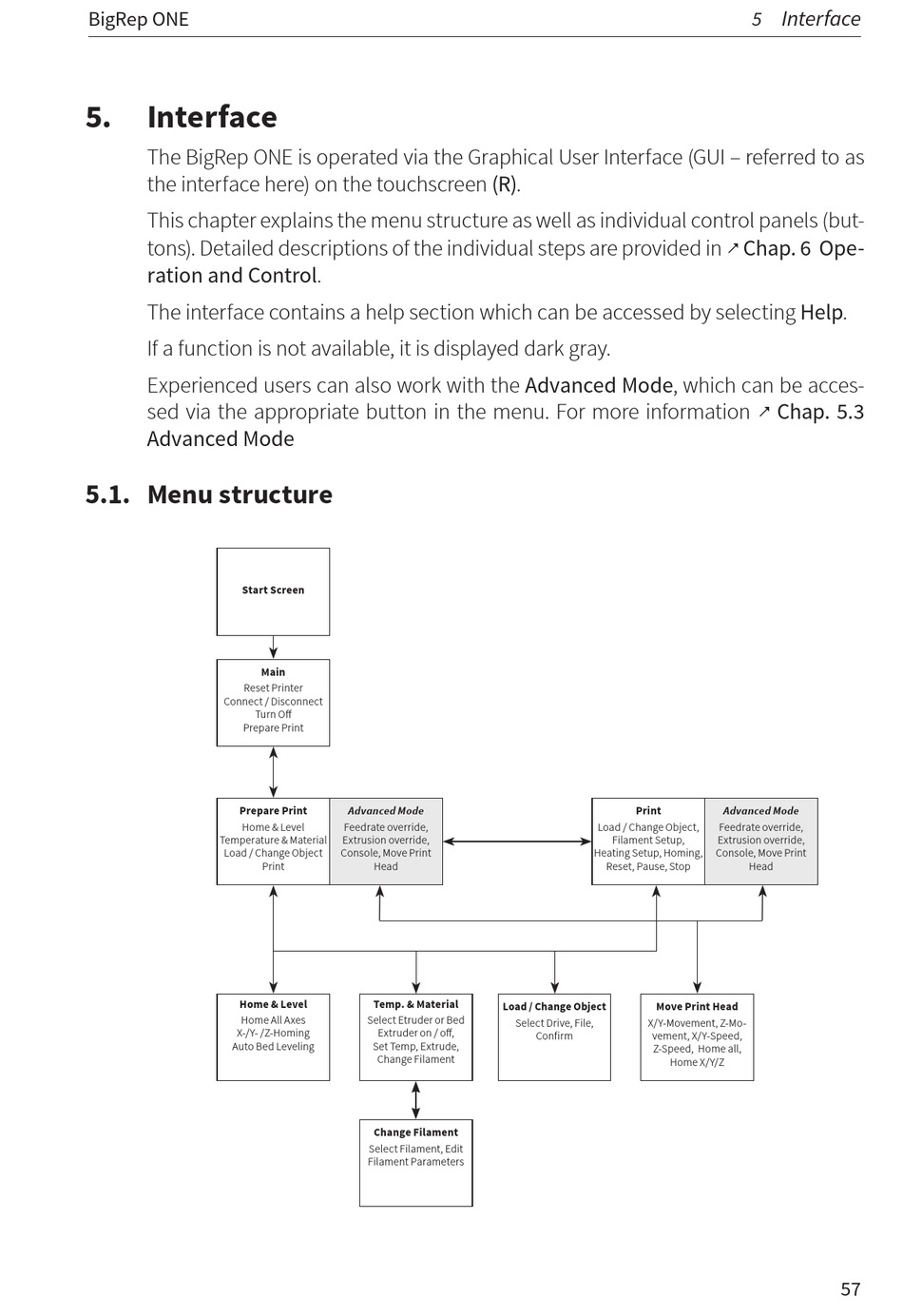

5.1. Menu structure

Start Screen
Reset Printer
Connect / Disconnect
Turn Off
Prepare Print
Prepare Print
Home & Level
Temperature & Material
Load / Change Object
Home & Level
Home All Axes
X-/Y- /Z-Homing
Auto Bed Leveling
Main
Advanced Mode
Feedrate override,
Extrusion override,
Console, Move Print
Print Head
Temp. & Material
Select Etruder or Bed
Extruder on / off ,
Set Temp, Extrude,
Change Filament
Change Filament
Select Filament, Edit
Filament Parameters
Print
Load / Change Object,
Filament Setup,
Heating Setup, Homing,
Reset, Pause, Stop
Load / Change Object Move Print Head
Select Drive, File, X/Y-Movement, Z-Mo-
Confirm vement, X/Y-Speed,
Z-Speed, Home all,
Home X/Y/Z
Interface
5
Chap. 6 Ope-
&
Chap. 5.3
&
Advanced Mode
Feedrate override,
Extrusion override,
Console, Move Print
Head
