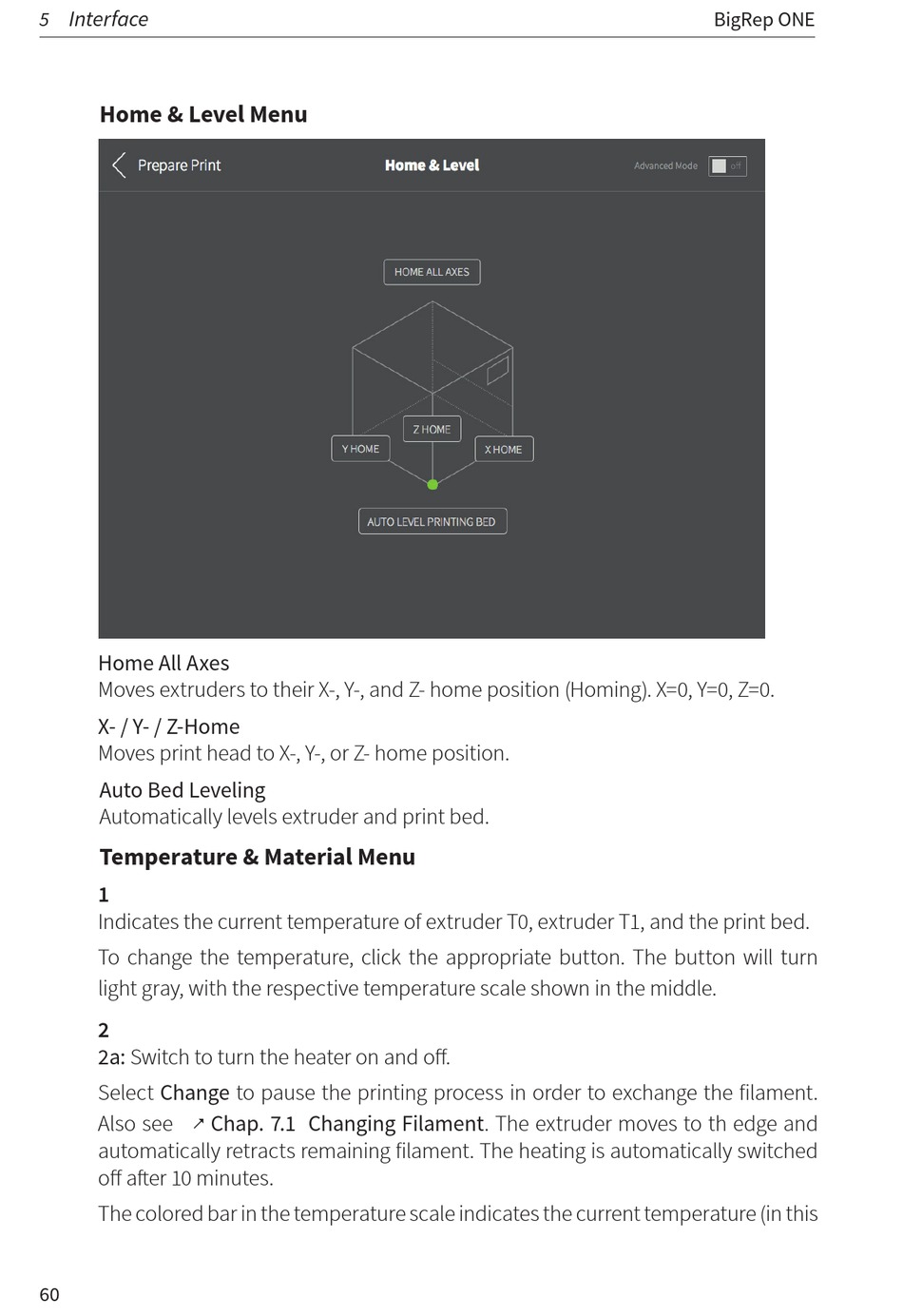

BigRep ONE Bedienungsanleitung Seite 60

Interface
5
Home & Level Menu
Home All Axes
Moves extruders to their X-, Y-, and Z- home position (Homing). X=0, Y=0, Z=0.
X- / Y- / Z-Home
Moves print head to X-, Y-, or Z- home position.
Auto Bed Leveling
Automatically levels extruder and print bed.
Temperature & Material Menu
1
Indicates the current temperature of extruder T0, extruder T1, and the print bed.
To change the temperature, click the appropriate button. The button will turn
light gray, with the respective temperature scale shown in the middle.
2
2a: Switch to turn the heater on and off.
Select Change to pause the printing process in order to exchange the filament.
Also see
&
automatically retracts remaining filament. The heating is automatically switched
off after 10 minutes.
The colored bar in the temperature scale indicates the current temperature (in this
60
Chap. 7.1 Changing Filament. The extruder moves to th edge and
BigRep ONE
