Interposer-Modul

Removing the interposer module

Prerequisites
1. Follow the procedure in
2. Remove the side cover.
3. Remove the top cover (side bezel)
4. Remove the front bezel.
5. Remove the fan assembly.
NOTE: This step is valid for system configuration that is shipped with 80 W CPU.
6. Remove the riser card.
About this task

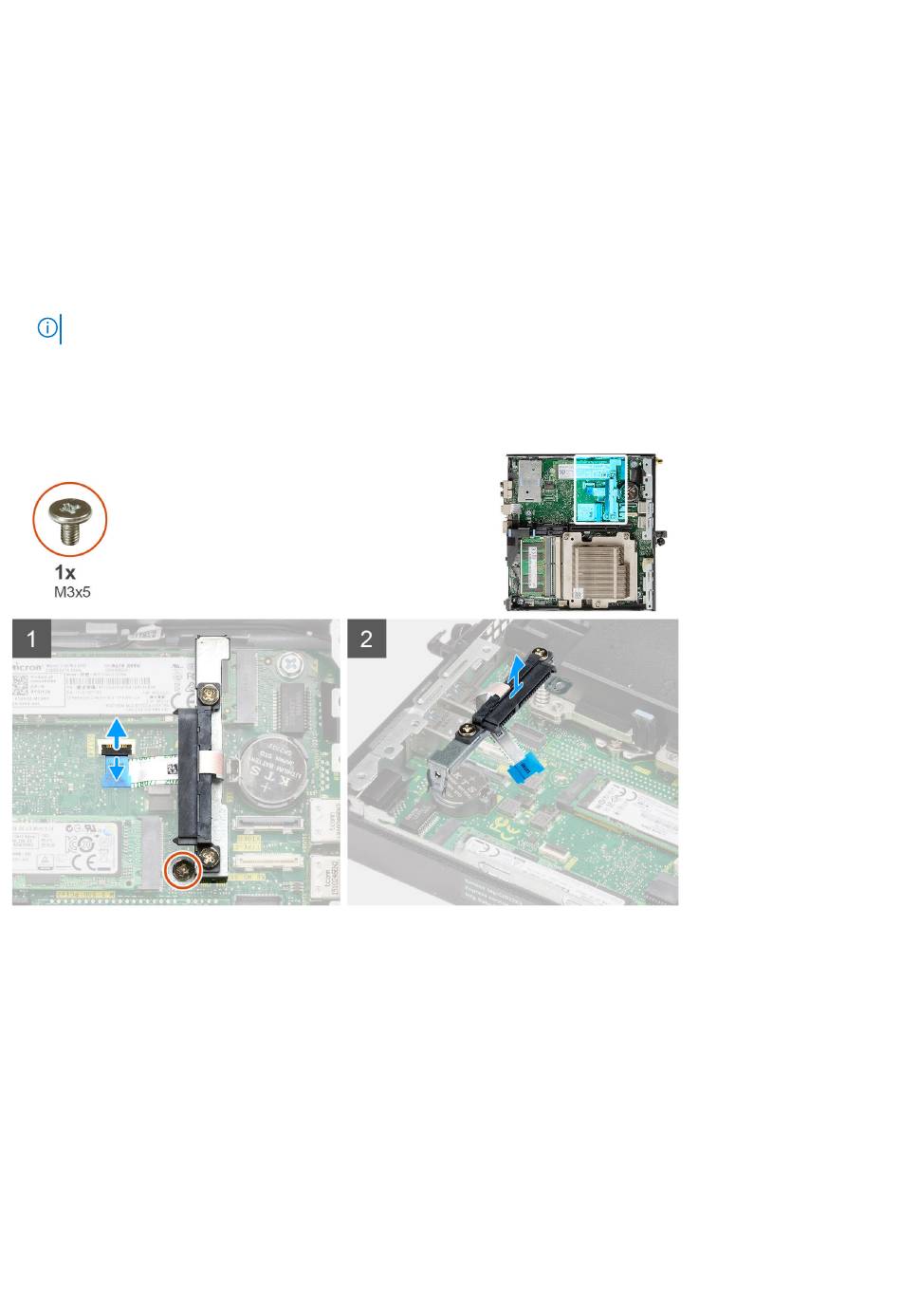

The following images indicate the location of the interposer module and provide a visual representation of the removal procedure.
Steps
1. Flip open the actuator and disconnect the SATA FPC cable from the system board.
2. Loosen and remove the single screw (M3x5) securing the interposer module to the system board.

Installing the interposer module

Prerequisites
Wenn Sie eine Komponente austauschen, muss die vorhandene Komponente entfernt werden, bevor Sie das Installationsverfahren
durchführen.
About this task
The following image indicates the location of the interposer module and provides a visual representation of the installation procedure.
60 Ausbau und Wiedereinbau
before working inside your computer.
