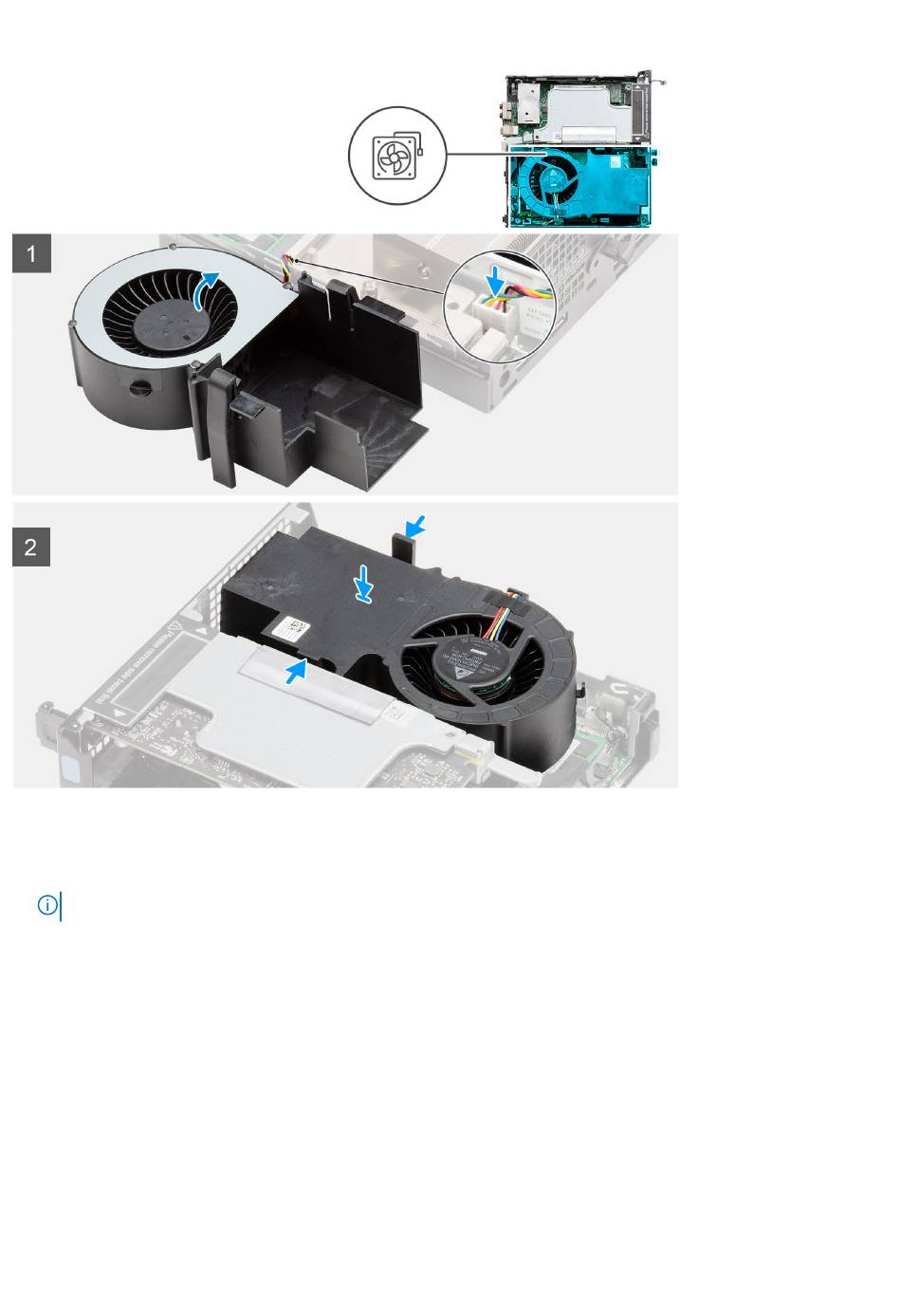

Steps
1. Connect the fan cable to the connector on the system board.
2. Press the release tab on the fan assembly and place it on the system up-side down until it clicks into place.
NOTE: Route the speaker cable through the routing guides on the fan assembly.
Next steps
1. Install the front bezel.
2. Install the top cover (side
3. Install the side cover.
4. Follow the procedure in
bezel).
after working inside your computer.
