Installing The Heat Sink - Dell Precision 3240 Compact Servicehandbuch

Figure 5. Heat sink shipped with system configuration shipped with 80 W CPU
Steps
1. Loosen the three captive screws that secure the heat sink to the system.
NOTE: Loosen the screw in the sequential order (3,2,1) as printed on the heat sink.
2. Lift the heat-sink from the system board.

Installing the heat sink

Prerequisites
Wenn Sie eine Komponente austauschen, muss die vorhandene Komponente entfernt werden, bevor Sie das Installationsverfahren
durchführen.
About this task

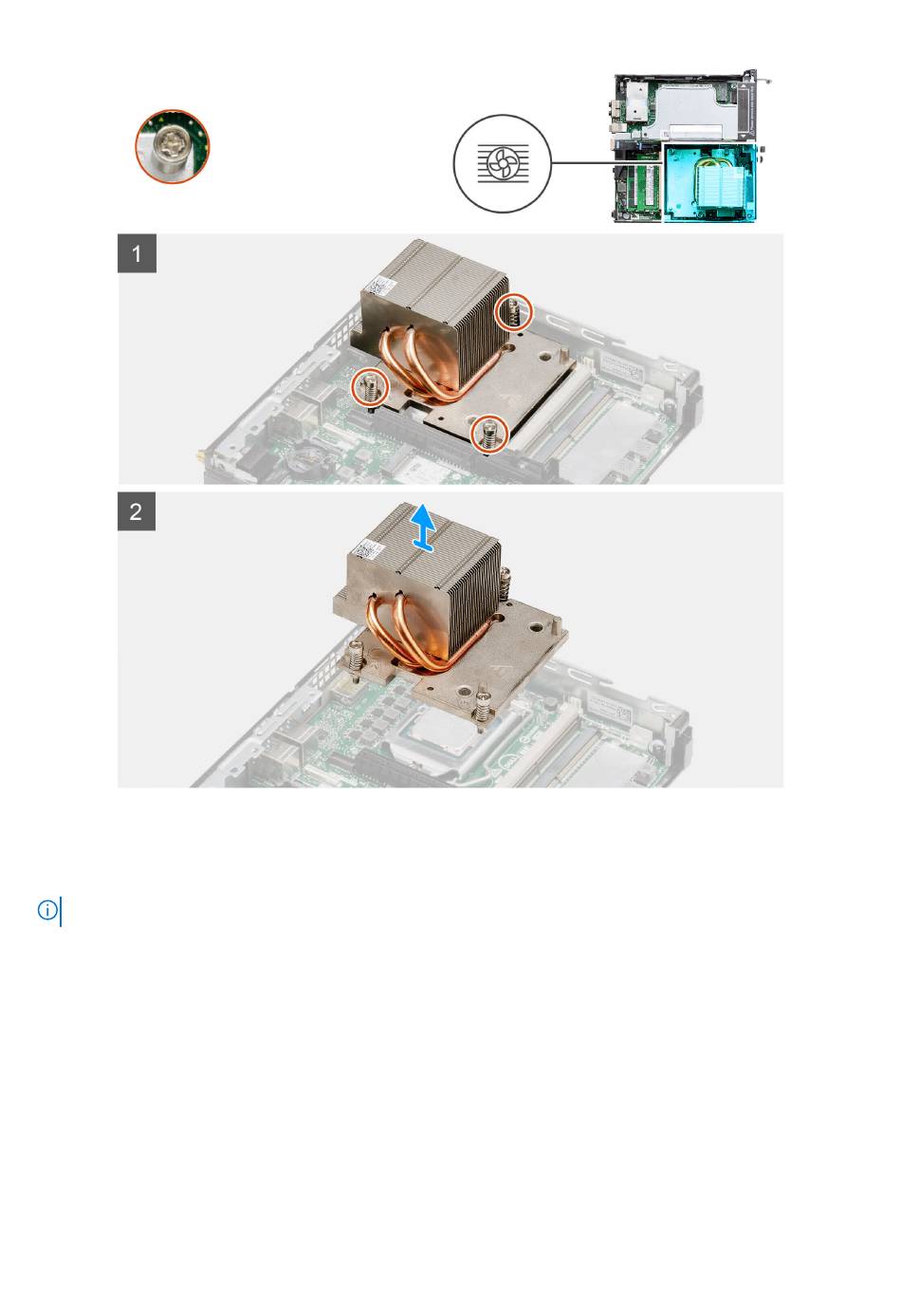

The following image indicates the location of the heat sink and provides a visual representation of the installation procedure.
Ausbau und Wiedereinbau 57
