Steps

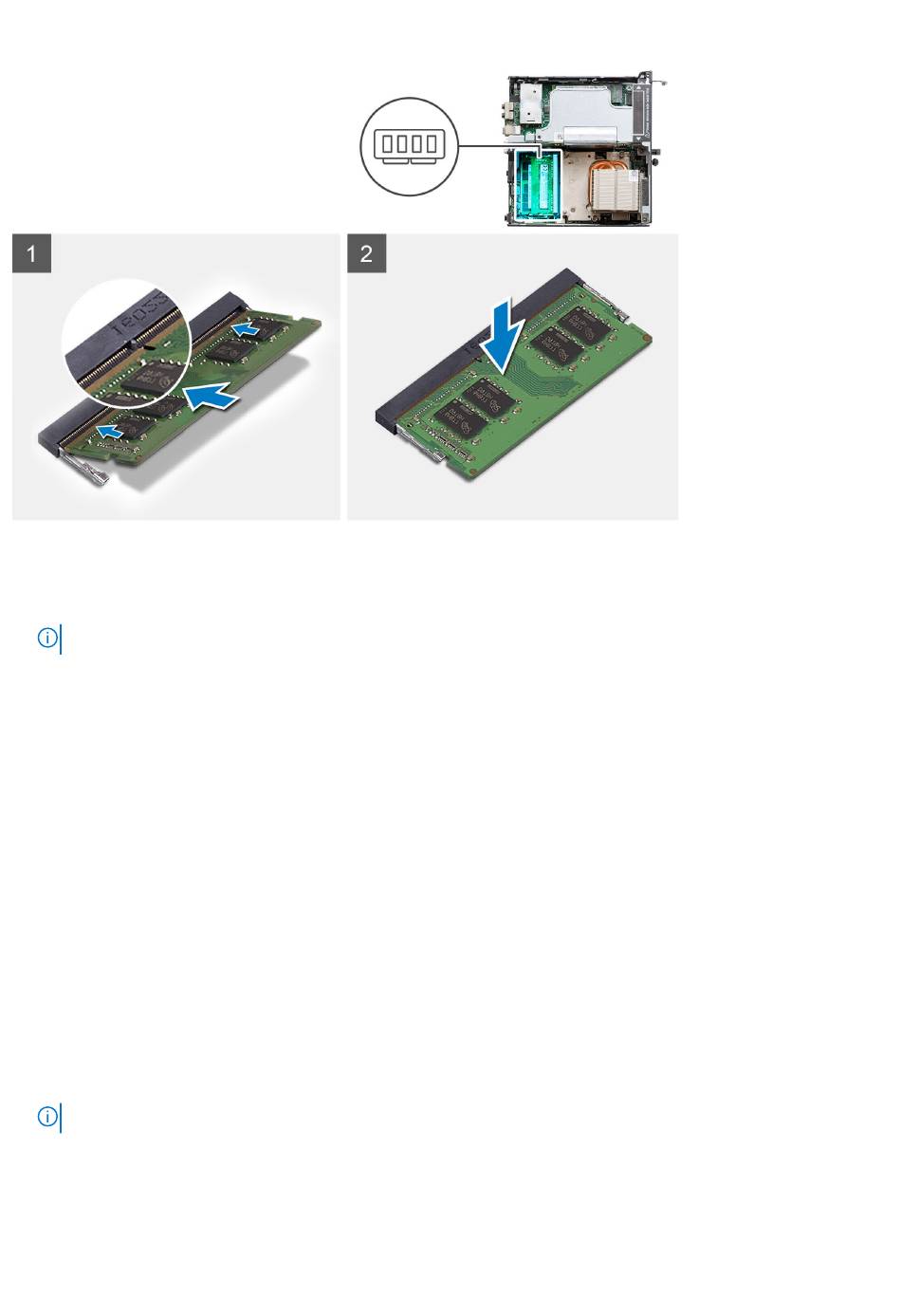

1. Align the notch on the memory module with the tab on the memory-module slot.
2. Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
Next steps
1. Install the fan assembly.
2. Install the front bezel.
3. Install the top cover (side
4. Install the side cover.
5. Follow the procedure in

Riser-Karte

Removing the riser card

Prerequisites
1. Follow the procedure in
2. Remove the side cover.
3. Remove the top cover (side bezel)
4. Remove the front bezel.
5. Remove the fan assembly.
NOTE: This step is valid for system configuration that is shipped with 80 W CPU.
About this task
The following images indicate the location of the riser card and provide a visual representation of the removal procedure.
bezel).
after working inside your computer.
before working inside your computer.
Ausbau und Wiedereinbau 47
