Installing The Dell Ultra Speed Drive - Dell Precision 3240 Compact Servicehandbuch

Steps
1. Pull the metal tab to open the expansion card latch.
2. Slide the Dell Ultra speed drive along the edges of the riser card to release it from the riser card.
3. Flip over the Dell Ultra Speed Drive with SSD facing down.
4. Loosen the single screw (M2x5) securing the standoff nut to the Dell Ultra Speed Drive.
5. Remove the standoff nut from the SSD.
6. Slide the SSD out of the M.2 slot on the Dell Ultra Speed Drive.

Installing the Dell Ultra Speed Drive

Prerequisites
Wenn Sie eine Komponente austauschen, muss die vorhandene Komponente entfernt werden, bevor Sie das Installationsverfahren
durchführen.
About this task

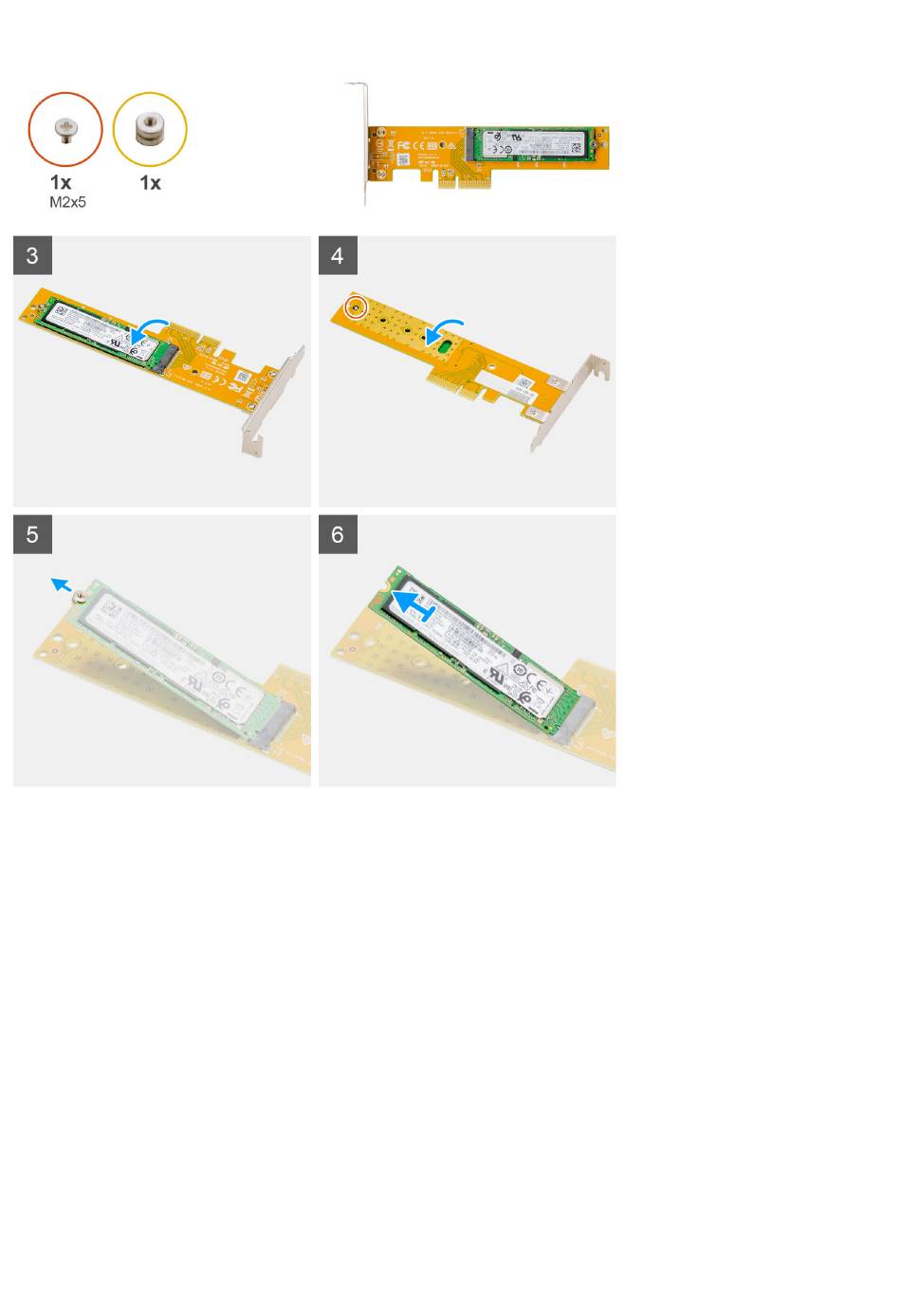

The following image indicates the location of the Dell Ultra Speed Drive and provides a visual representation of the installation procedure.
Ausbau und Wiedereinbau 51
