Kühlkörper

Removing the heat sink

Prerequisites
1. Follow the procedure in
2. Remove the side cover.
3. Remove the top cover (side
4. Remove the front bezel.
5. Remove the fan assembly.
About this task

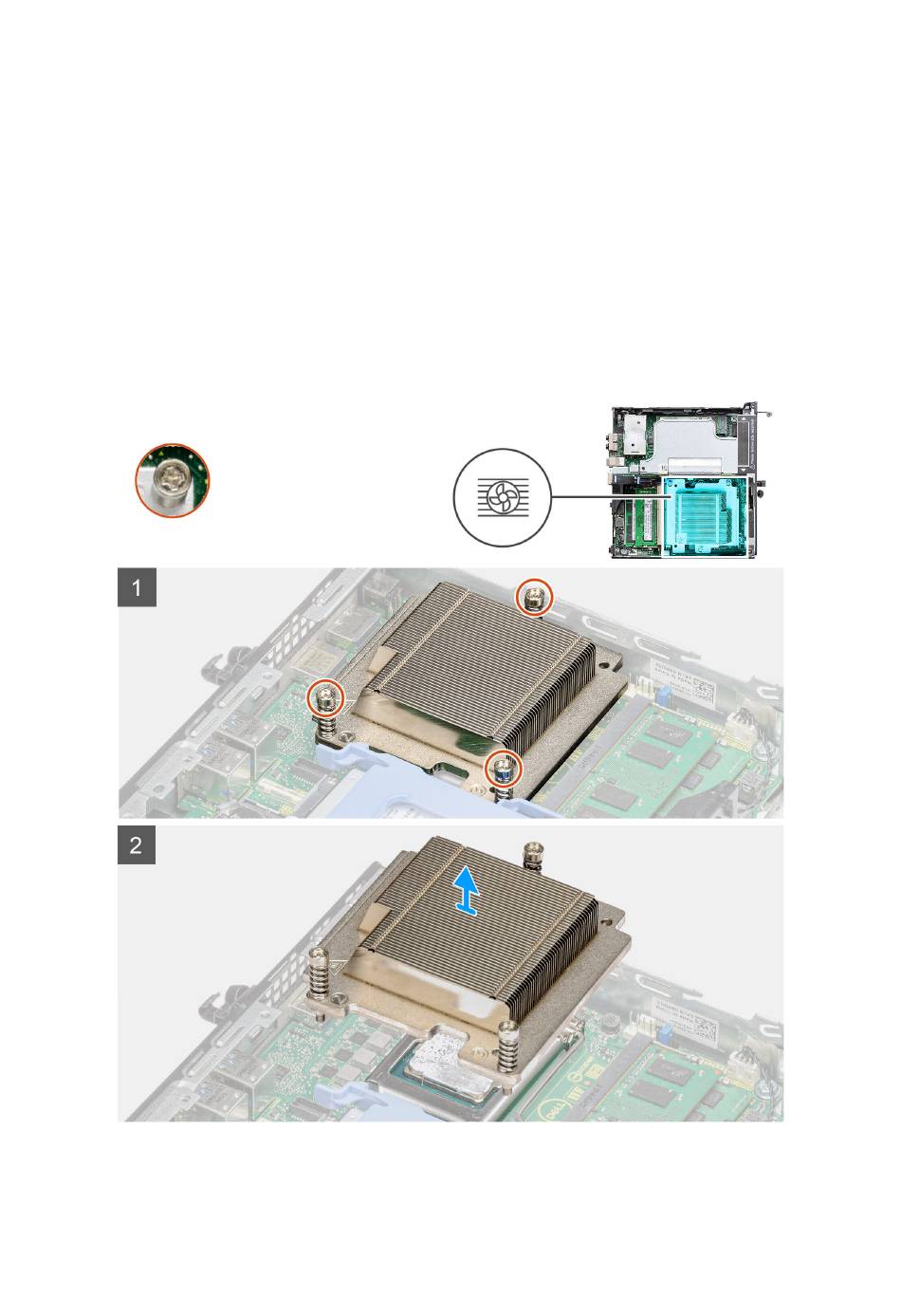

The following images indicate the location of the heat sink and provide a visual representation of the removal procedure.
Figure 4. Heat sink shipped with system configuration shipped with 65 W CPU
56 Ausbau und Wiedereinbau
before working inside your
bezel).
computer.
