About this task

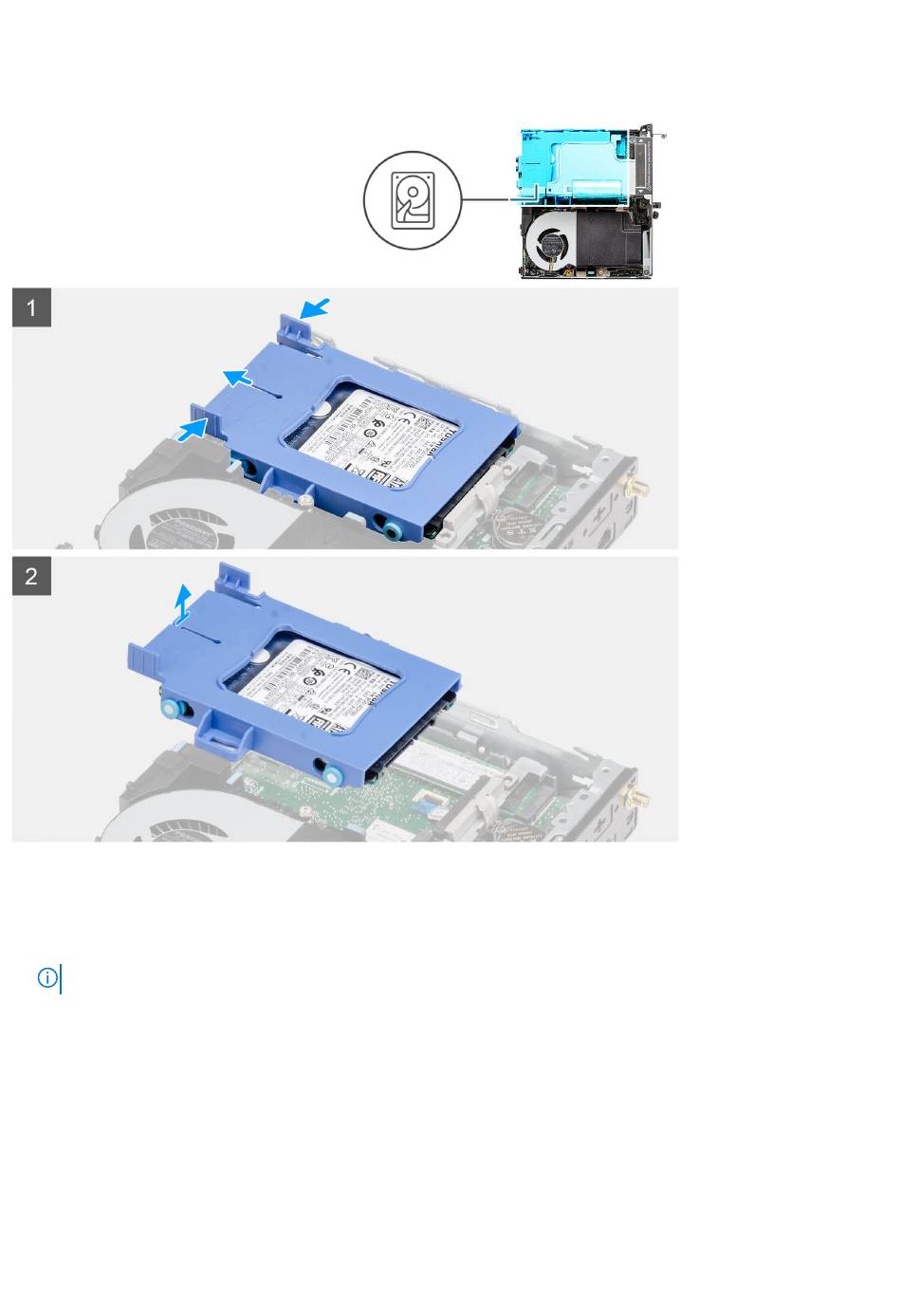

The following images indicate the location of the hard drive assembly and provide a visual representation of the removal procedure.
Steps
1. Press the release tabs on the hard drive assembly and slide it towards the front of the system to disconnect it from the connector on
the system board.
2. Lift the hard drive assembly from the system.
NOTE: Note the orientation of the hard drive so that you can replace it correctly.

Removing the hard drive bracket

Prerequisites
1. Follow the procedure in
2. Remove the side cover.
3. Remove the top cover (side bezel)
4. Remove the front bezel.
5. Remove the 2.5 in. hard-drive
32 Ausbau und Wiedereinbau
before working inside your
assembly.
computer.
