Installation With Clamp Connections; Installation With Butt Weld Spigots - Gemü 567 BioStar control Betriebsanleitung

Use as step.
▶ Damage to the product.
▶ Risk of slipping-off.
Choose the installation location so that the product can-
●
not be used as a foothold.
Do not use the product as a step or a foothold.
●
Suitability of the product!
▶ The product must be appropriate for the piping system
operating conditions (medium, medium concentration,
temperature and pressure) and the prevailing ambient
conditions.
Tools
▶ The tools required for installation and assembly are not
included in the scope of delivery.
Use appropriate, functional and safe tools.
●
1. Ensure the product is suitable for the relevant application.
2. Check the technical data of the product and the materials.
3. Keep appropriate tools ready.
4. Wear appropriate protective gear, as specified in the plant
operator's guidelines.
5. Observe appropriate regulations for connections.
6. Have installation work carried out by trained personnel.
7. Shut off plant or plant component.
8. Secure plant or plant component against recommission-
ing.
9. Depressurize the plant or plant component.
10. Completely drain the plant (or plant component) and let it
cool down until the temperature is below the media va-
porization temperature and cannot cause scalding.
11. Correctly decontaminate, rinse and ventilate the plant or
plant component.
12. Lay piping so that the product is protected against trans-
verse and bending forces, and also from vibrations and
tension.
13. Only install the product between matching aligned pipes
(see chapters below).
14. Please note the flow direction (see chapter "Flow direc-
tion").
15. Please note the installation position (see chapter "Install-
ation position").

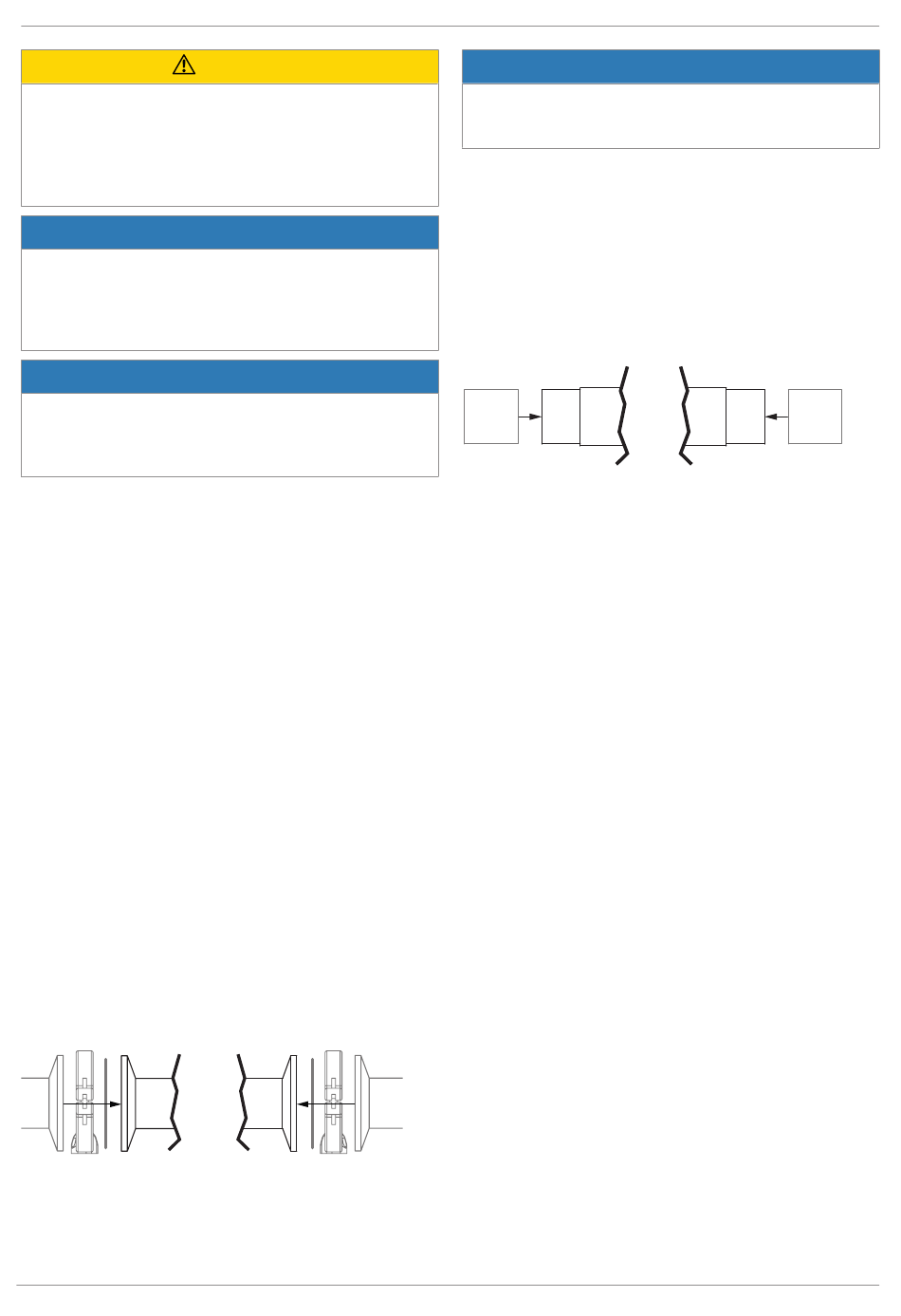

9.3 Installation with clamp connections

Fig. 1: Clamp connection
www.gemu-group.com
CAUTION
NOTICE
NOTICE
Gasket and clamp
▶ The gasket and clamps for clamp connections are not in-
cluded in the scope of delivery.
1. Keep ready gasket and clamp.
2. Carry out preparation for installation (see chapter "Pre-
paring for installation").
3. Insert the corresponding gasket between the body of the
product and the pipe connection.
4. Connect the gasket between the body of the product and
the pipe connection using clamps.
5. Re-attach or reactivate all safety and protective devices.

9.4 Installation with butt weld spigots

Fig. 2: Butt weld spigots
1. Carry out preparation for installation (see chapter "Pre-
paring for installation").
2. Remove the actuator before welding the valve into the
plant (see chapter "Removing the actuator").
3. Adhere to good welding practices!
4. Weld the body of the product in the piping.
5. Allow butt weld spigots to cool down.
6. Mount the actuator on the valve body (see chapter
"Mounting the actuator").
7. Re-attach or reactivate all safety and protective devices.
8. Flush the system.
71 / 88
9 Installation in piping
NOTICE
GEMÜ 567
