7 Dimensions
7 Dimensions

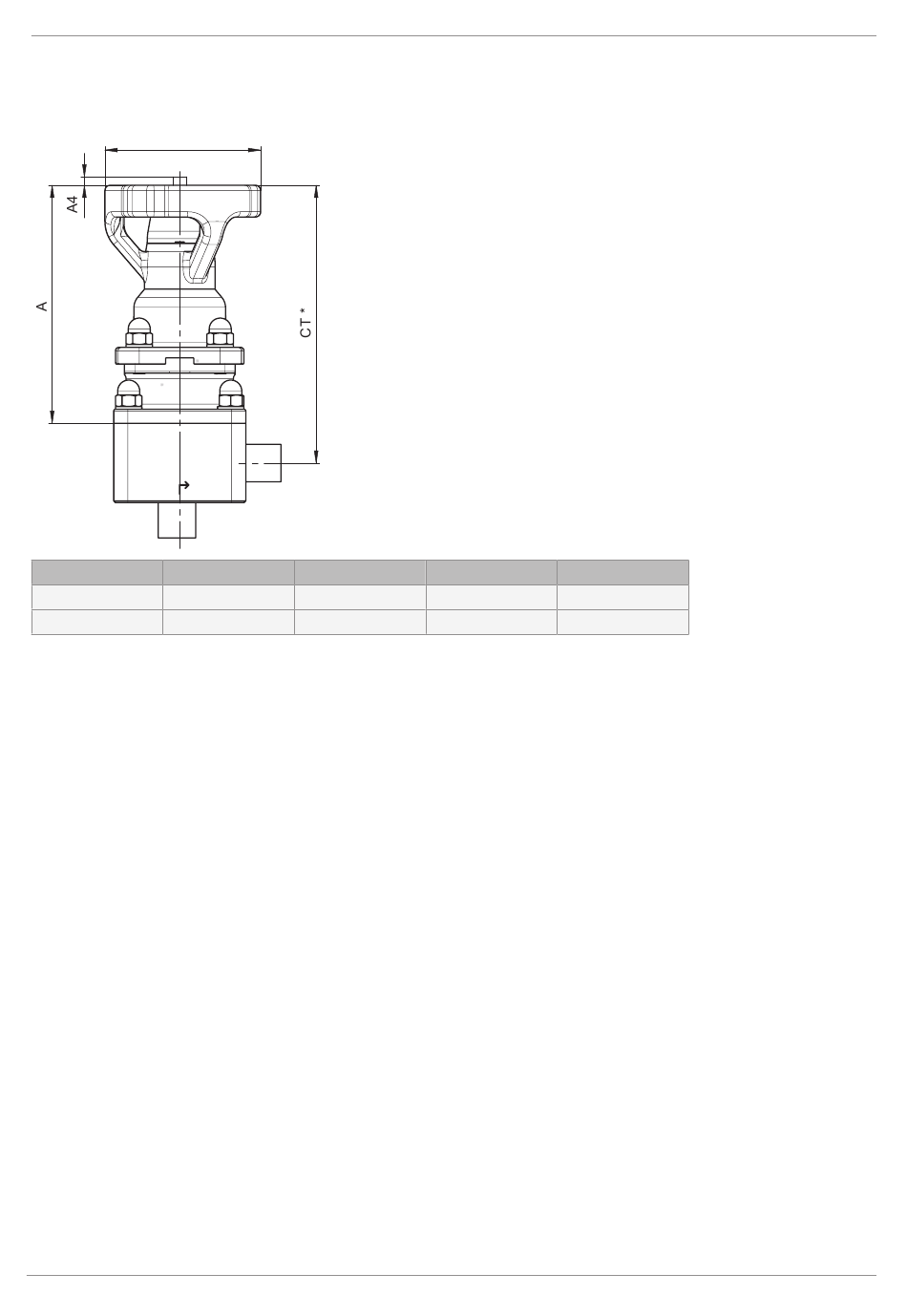

7.1 Actuator dimensions

ØB
DN Actuator size
8, 10, 15, 20
20, 25
Dimensions in mm
* CT = A + H1 (see body dimensions)
GEMÜ 567
A
2 135.0
3 193.0
A4
5.0
9.0
54 / 88
ØB
90.0
114.0
