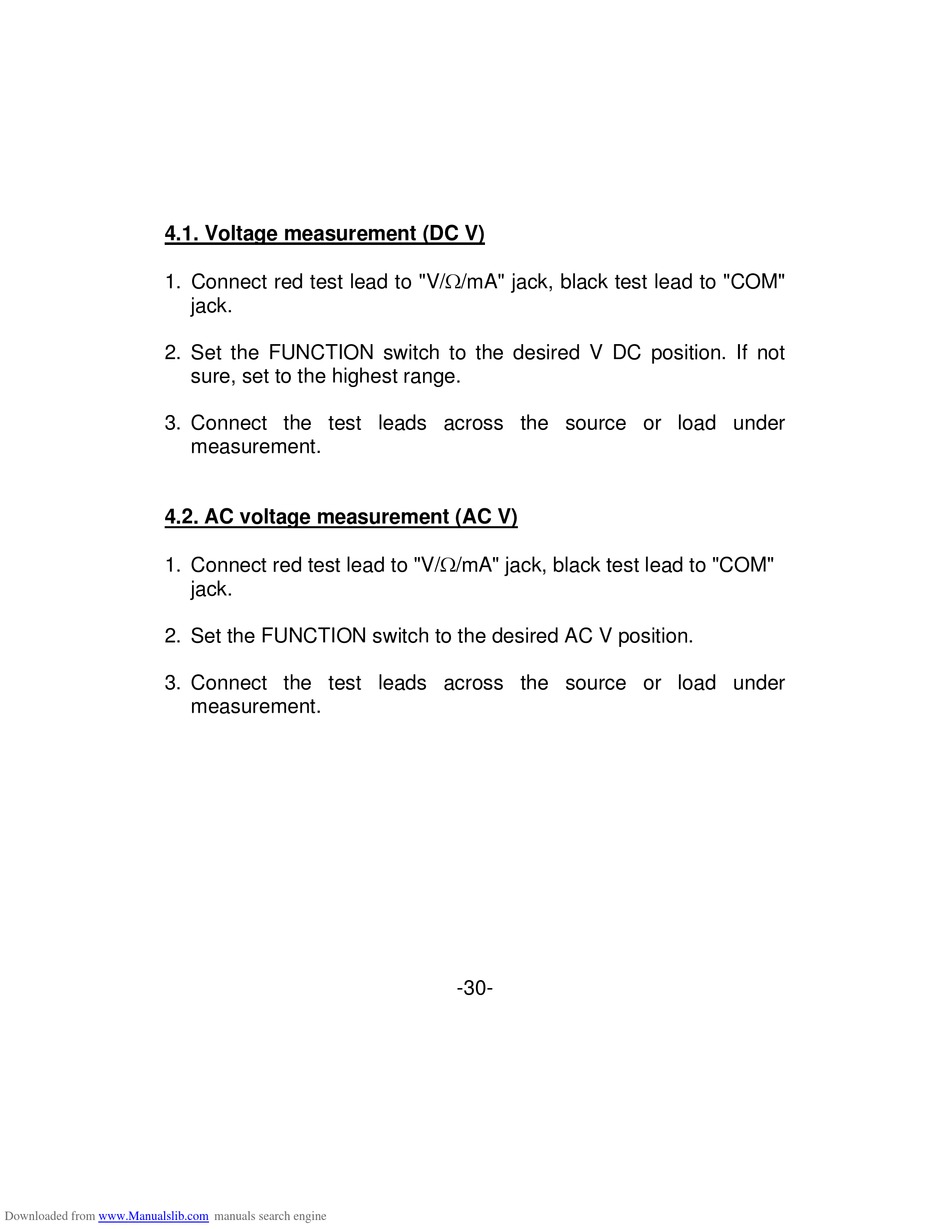

4.1. Voltage measurement (DC V)
1. Connect red test lead to "V//mA" jack, black test lead to "COM"
2. Set the FUNCTION switch to the desired V DC position. If not
3. Connect the test leads across the source or load under
4.2. AC voltage measurement (AC V)
1. Connect red test lead to "V//mA" jack, black test lead to "COM"
2. Set the FUNCTION switch to the desired AC V position.
3. Connect the test leads across the source or load under
Downloaded from www.Manualslib.com
jack.
sure, set to the highest range.
measurement.
jack.
measurement.
manuals search engine
-30-
