Disassembly - BADU JET Smart Originalbetriebsanleitung

Installation
5.5

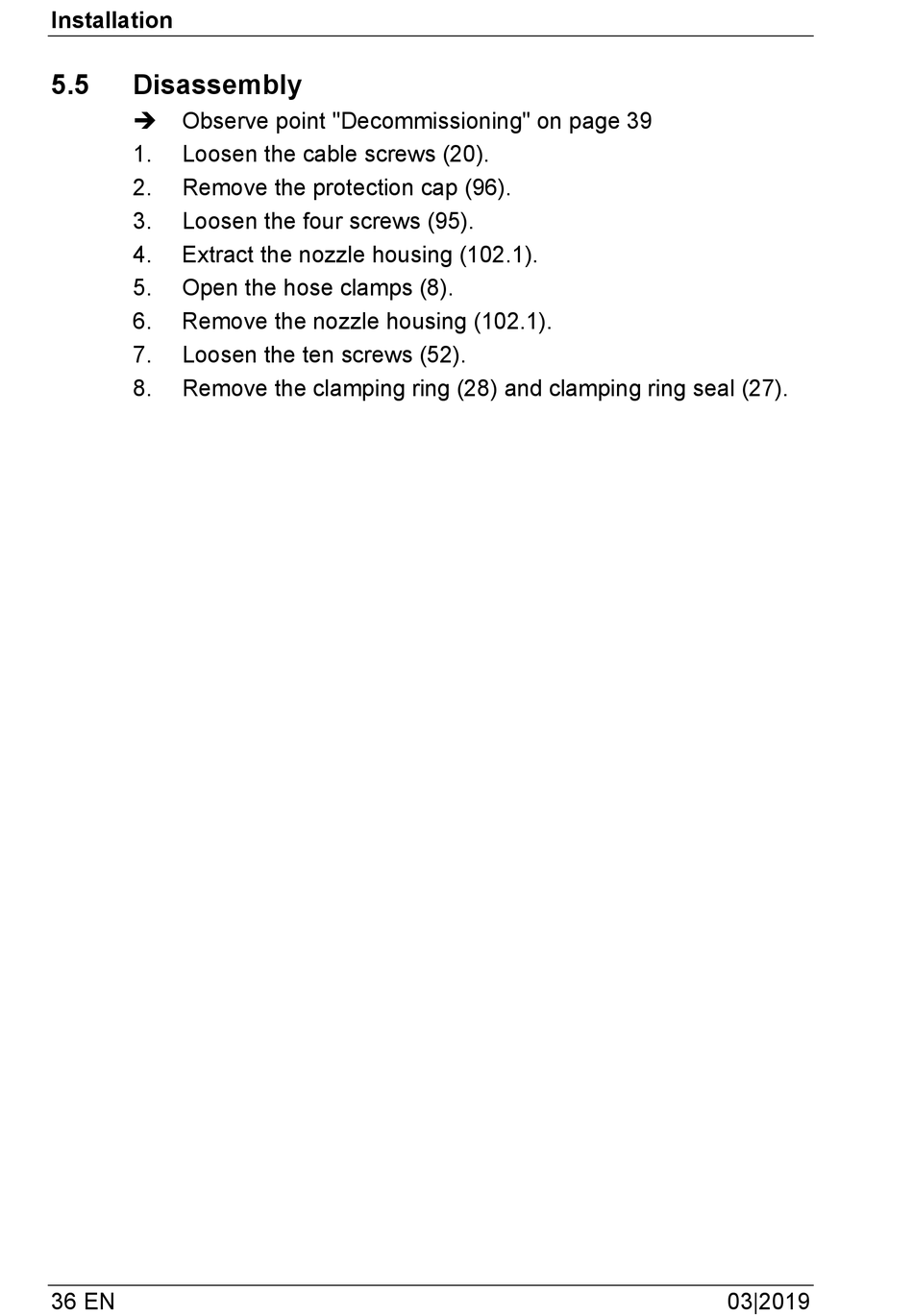

Disassembly

 Observe point "Decommissioning" on page 39
1. Loosen the cable screws (20).
2. Remove the protection cap (96).
3. Loosen the four screws (95).
4. Extract the nozzle housing (102.1).
5. Open the hose clamps (8).
6. Remove the nozzle housing (102.1).
7. Loosen the ten screws (52).
8. Remove the clamping ring (28) and clamping ring seal (27).
36 EN 03|2019
