Installation
Mounting the main housing in a tiled concrete pool
 Observe 5.2.3: Aligning the support ring
1 26 52
103 27 28
WG23.50.051-P

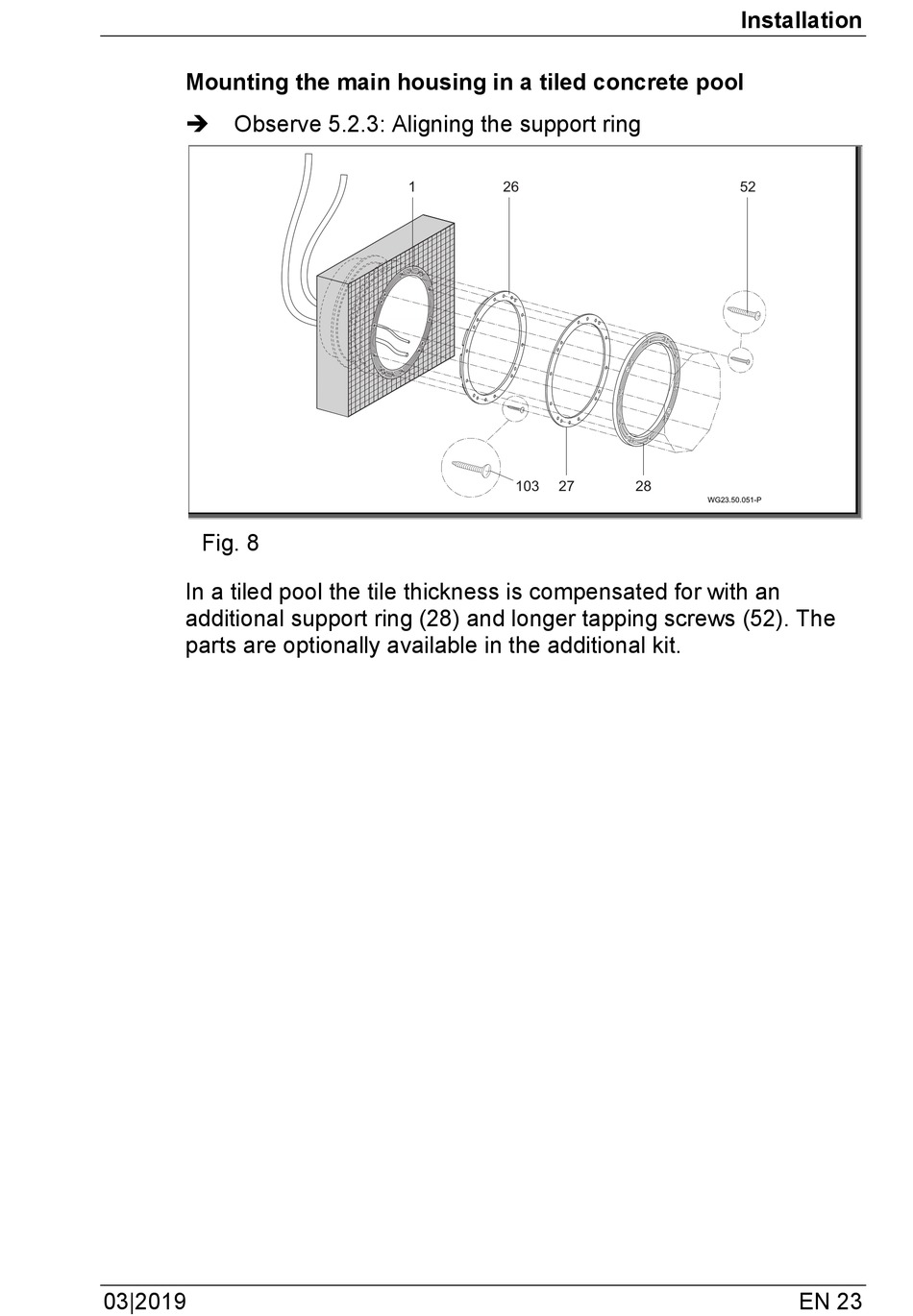

Fig. 8
In a tiled pool the tile thickness is compensated for with an
additional support ring (28) and longer tapping screws (52). The
parts are optionally available in the additional kit.
