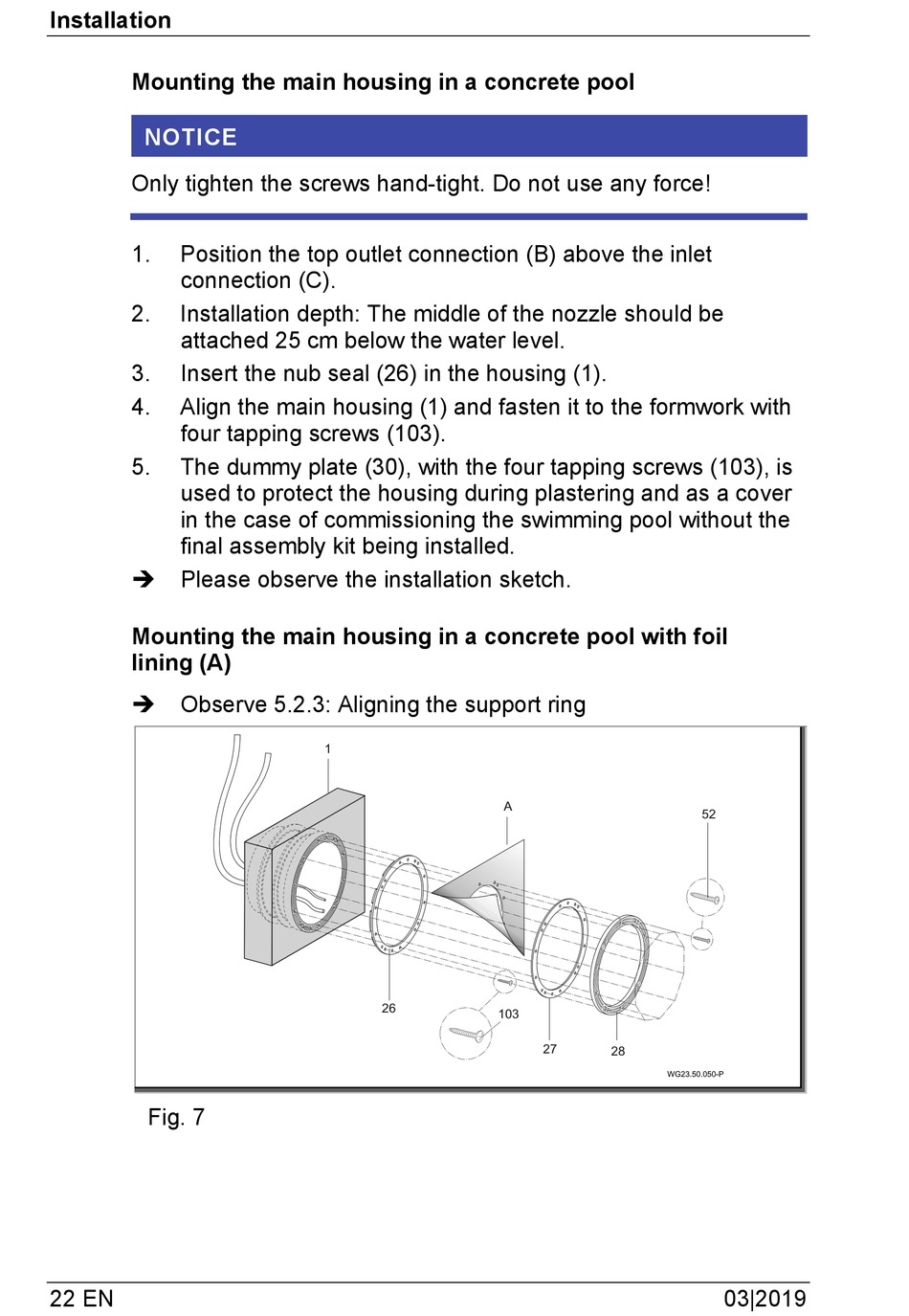

Installation
Mounting the main housing in a concrete pool
NOTICE
Only tighten the screws hand-tight. Do not use any force!
1. Position the top outlet connection (B) above the inlet
connection (C).
2. Installation depth: The middle of the nozzle should be
attached 25 cm below the water level.
3. Insert the nub seal (26) in the housing (1).
4. Align the main housing (1) and fasten it to the formwork with
four tapping screws (103).
5. The dummy plate (30), with the four tapping screws (103), is
used to protect the housing during plastering and as a cover
in the case of commissioning the swimming pool without the
final assembly kit being installed.
 Please observe the installation sketch.
Mounting the main housing in a concrete pool with foil
lining (A)
 Observe 5.2.3: Aligning the support ring
Fig. 7
22 EN
1
26
A
103
27
28
WG23.50.050-P
52
03|2019
