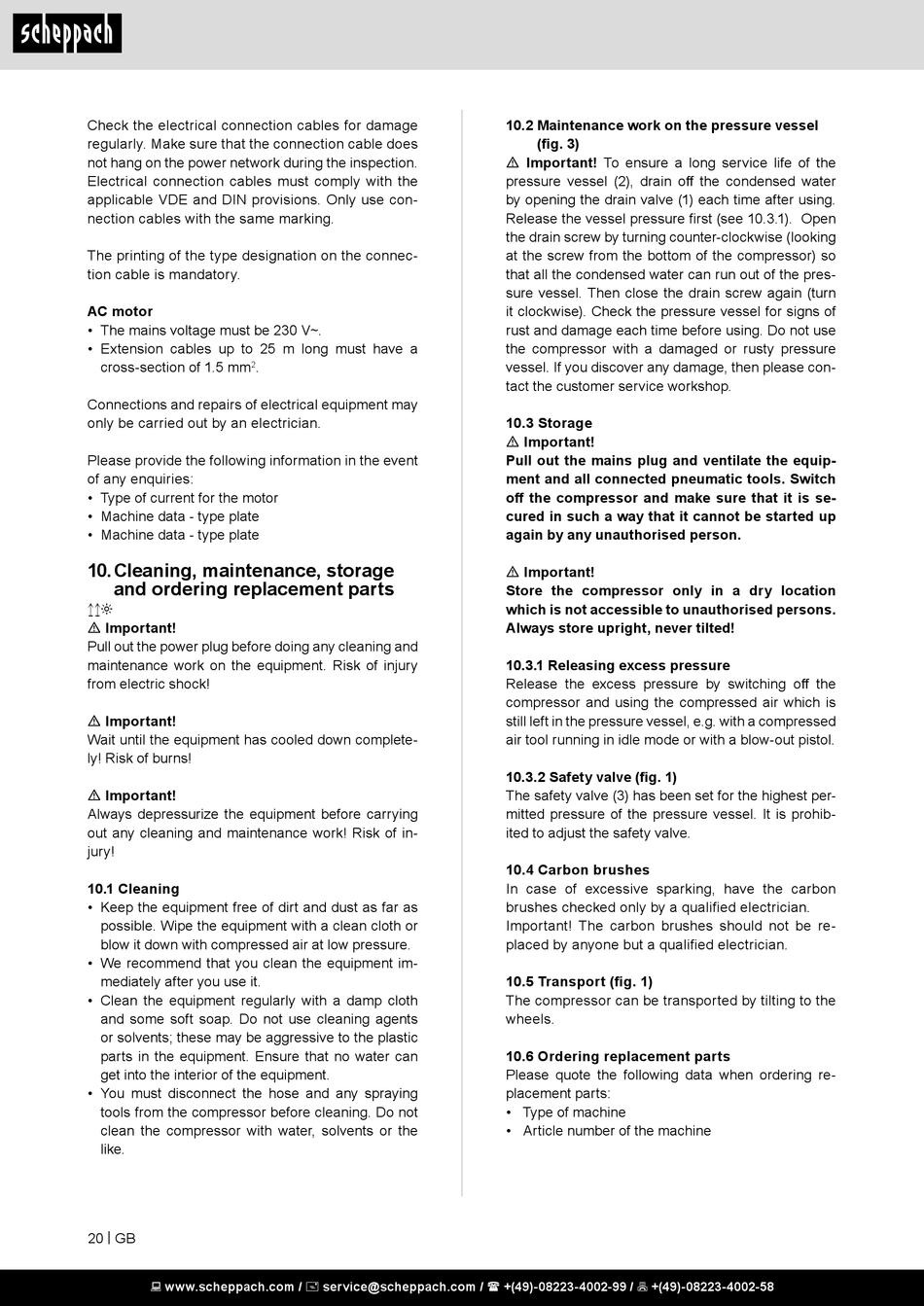

Check the electrical connection cables for damage
regularly. Make sure that the connection cable does
not hang on the power network during the inspection.
Electrical connection cables must comply with the
applicable VDE and DIN provisions. Only use con-
nection cables with the same marking.
The printing of the type designation on the connec-
tion cable is mandatory.
AC motor
• The mains voltage must be 230 V~.
• Extension cables up to 25 m long must have a
cross-section of 1.5 mm .
2
Connections and repairs of electrical equipment may
only be carried out by an electrician.
Please provide the following information in the event
of any enquiries:
• Type of current for the motor
• Machine data - type plate
• Machine data - type plate
10. Cleaning, maintenance, storage
and ordering replacement parts
11.
m Important!
Pull out the power plug before doing any cleaning and
maintenance work on the equipment. Risk of injury
from electric shock!
m Important!
Wait until the equipment has cooled down complete-
ly! Risk of burns!
m Important!
Always depressurize the equipment before carrying
out any cleaning and maintenance work! Risk of in-
jury!
10.1 Cleaning
• Keep the equipment free of dirt and dust as far as
possible. Wipe the equipment with a clean cloth or
blow it down with compressed air at low pressure.
• We recommend that you clean the equipment im-
mediately after you use it.
• Clean the equipment regularly with a damp cloth
and some soft soap. Do not use cleaning agents
or solvents; these may be aggressive to the plastic
parts in the equipment. Ensure that no water can
get into the interior of the equipment.
• You must disconnect the hose and any spraying
tools from the compressor before cleaning. Do not
clean the compressor with water, solvents or the
like.
20 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
10.2 Maintenance work on the pressure vessel
(fig. 3)
m Important! To ensure a long service life of the
pressure vessel (2), drain off the condensed water
by opening the drain valve (1) each time after using.
Release the vessel pressure first (see 10.3.1). Open
the drain screw by turning counter-clockwise (looking
at the screw from the bottom of the compressor) so
that all the condensed water can run out of the pres-
sure vessel. Then close the drain screw again (turn
it clockwise). Check the pressure vessel for signs of
rust and damage each time before using. Do not use
the compressor with a damaged or rusty pressure
vessel. If you discover any damage, then please con-
tact the customer service workshop.
10.3 Storage
m Important!
Pull out the mains plug and ventilate the equip-
ment and all connected pneumatic tools. Switch
off the compressor and make sure that it is se-
cured in such a way that it cannot be started up
again by any unauthorised person.
m Important!
Store the compressor only in a dry location
which is not accessible to unauthorised persons.
Always store upright, never tilted!
10.3.1 Releasing excess pressure
Release the excess pressure by switching off the
compressor and using the compressed air which is
still left in the pressure vessel, e.g. with a compressed
air tool running in idle mode or with a blow-out pistol.
10.3.2 Safety valve (fig. 1)
The safety valve (3) has been set for the highest per-
mitted pressure of the pressure vessel. It is prohib-
ited to adjust the safety valve.

10.4 Carbon brushes

In case of excessive sparking, have the carbon
brushes checked only by a qualified electrician.
Important! The carbon brushes should not be re-
placed by anyone but a qualified electrician.
10.5 Transport (fig. 1)
The compressor can be transported by tilting to the
wheels.
10.6 Ordering replacement parts
Please quote the following data when ordering re-
placement parts:
• Type of machine
• Article number of the machine
