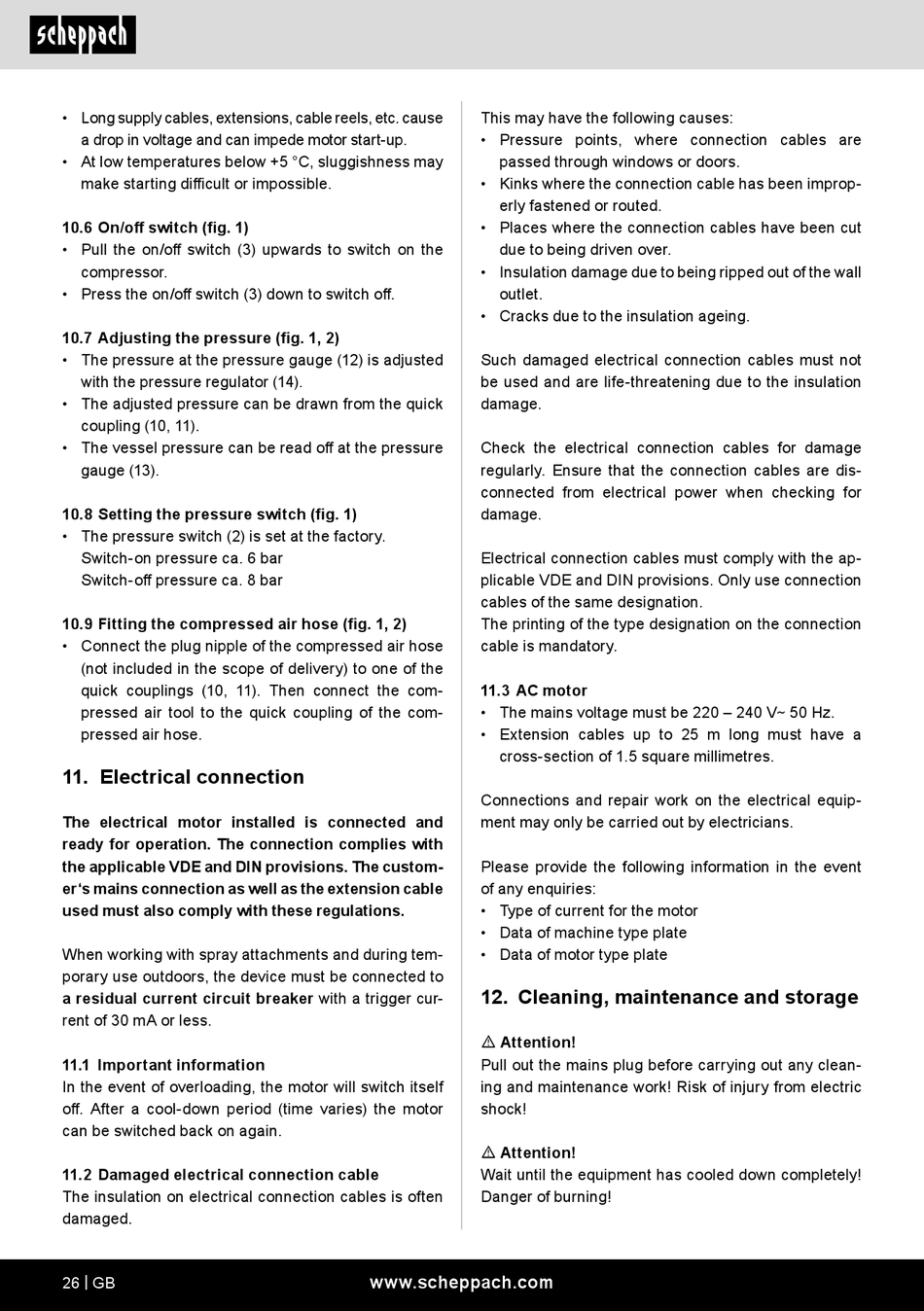

• Long supply cables, extensions, cable reels, etc. cause
a drop in voltage and can impede motor start-up.
• At low temperatures below +5 °C, sluggishness may
make starting difficult or impossible.
10.6 On/off switch (fig. 1)
• Pull the on/off switch (3) upwards to switch on the
compressor.
• Press the on/off switch (3) down to switch off.
10.7 Adjusting the pressure (fig. 1, 2)
• The pressure at the pressure gauge (12) is adjusted
with the pressure regulator (14).
• The adjusted pressure can be drawn from the quick
coupling (10, 11).
• The vessel pressure can be read off at the pressure
gauge (13).
10.8 Setting the pressure switch (fig. 1)
• The pressure switch (2) is set at the factory.
Switch-on pressure ca. 6 bar
Switch-off pressure ca. 8 bar
10.9 Fitting the compressed air hose (fig. 1, 2)
• Connect the plug nipple of the compressed air hose
(not included in the scope of delivery) to one of the
quick couplings (10, 11). Then connect the com-
pressed air tool to the quick coupling of the com-
pressed air hose.

11. Electrical connection

The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions. The custom-
er's mains connection as well as the extension cable
used must also comply with these regulations.
When working with spray attachments and during tem-
porary use outdoors, the device must be connected to
a residual current circuit breaker with a trigger cur-
rent of 30 mA or less.
11.1 Important information
In the event of overloading, the motor will switch itself
off. After a cool-down period (time varies) the motor
can be switched back on again.
11.2 Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
26 | GB
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the wall
outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Ensure that the connection cables are dis-
connected from electrical power when checking for
damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables of the same designation.
The printing of the type designation on the connection
cable is mandatory.
11.3 AC motor
• The mains voltage must be 220 ‒ 240 V∼ 50 Hz.
• Extension cables up to 25 m long must have a
cross-section of 1.5 square millimetres.
Connections and repair work on the electrical equip-
ment may only be carried out by electricians.
Please provide the following information in the event
of any enquiries:
• Type of current for the motor
• Data of machine type plate
• Data of motor type plate

12. Cleaning, maintenance and storage

m Attention!
Pull out the mains plug before carrying out any clean-
ing and maintenance work! Risk of injury from electric
shock!
m Attention!
Wait until the equipment has cooled down completely!
Danger of burning!
