Installing the gas pressure regulator, gas filter
and adapter
The gas pressure regulator should be installed so that the type
plate is legible and the yellow reset button (crash sensor reset)
is visible and easy to access.
1

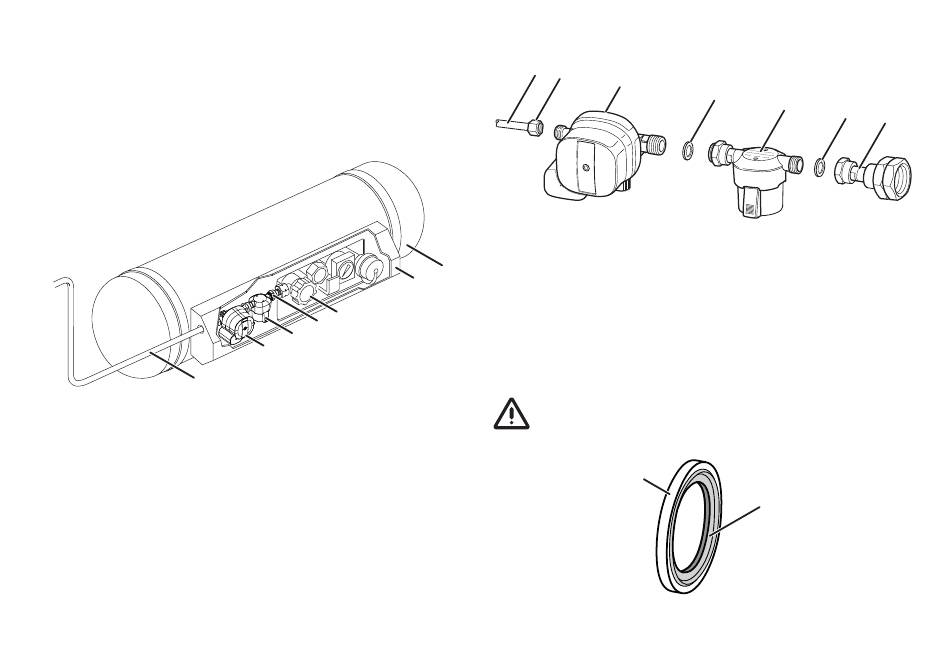

Figure 2 – Installation example
1 Gas pipe
2 MonoControl CS T
3 Gas filter
4 Adapter
5 Withdrawal valve
6 Fitting box
7 Gas tank
6
5
4
3
2
Use only appropriate tools. Do not use a pipe wrench.
1
2
3
Figure 3
1 Gas pipe 30 mbar 10 mm
7
2 Olive screw connection
3 MonoControl CS T
4 Sealing ring
5 Gas filter
6 Sealing ring
7 Adapter
Use only the sealing rings that are supplied. They have
a metal outer ring (Figure 4 - 1) and a rubber core
(Figure 4 - 2).
Figure 4
4
5
1
2
6
7
EN 15
