Abbreviations

AF = Width across flats (in mm)
LH = Left-hand thread
CS = Crash sensor
T = Tank (gas tank)

Scope of delivery

– 1 x MonoControl CS T
– 1 x Gas filter
– 1 x Screw aid AF 23 / KF
– 1 x Adapter
– 2 x Sealing rings
– 1 x Installation instructions for MonoControl CS T Set
– 1 x Operating instructions for MonoControl CS
– 1 x Operating instructions for gas filter
Immediately after unpacking, make sure that the components
supplied do not show any visible signs of damage.
12 EN

Variants

The packaging for the MonoControl CS T Set contains the
operating instructions for the MonoControl CS. These instruc-
tions apply also to MonoControl CS T. The only differences
between the two gas pressure regulators are the connection
bracket for the gas pipe and a fastening bracket.

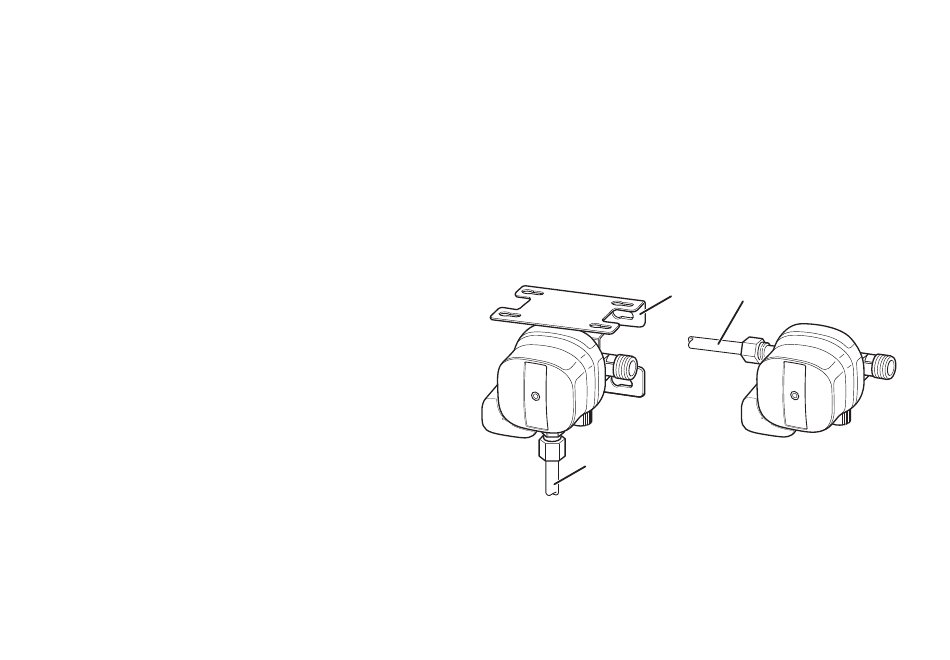

MonoControl CS:
– With fastening bracket (Figure 1 - 1)
– Connection for gas pipe facing down (Figure 1 - 2)
MonoControl CS T:
– Without fastening bracket
– Connection for gas pipe facing left(Figure 1 - 3)
2
Figure 1
1 3
