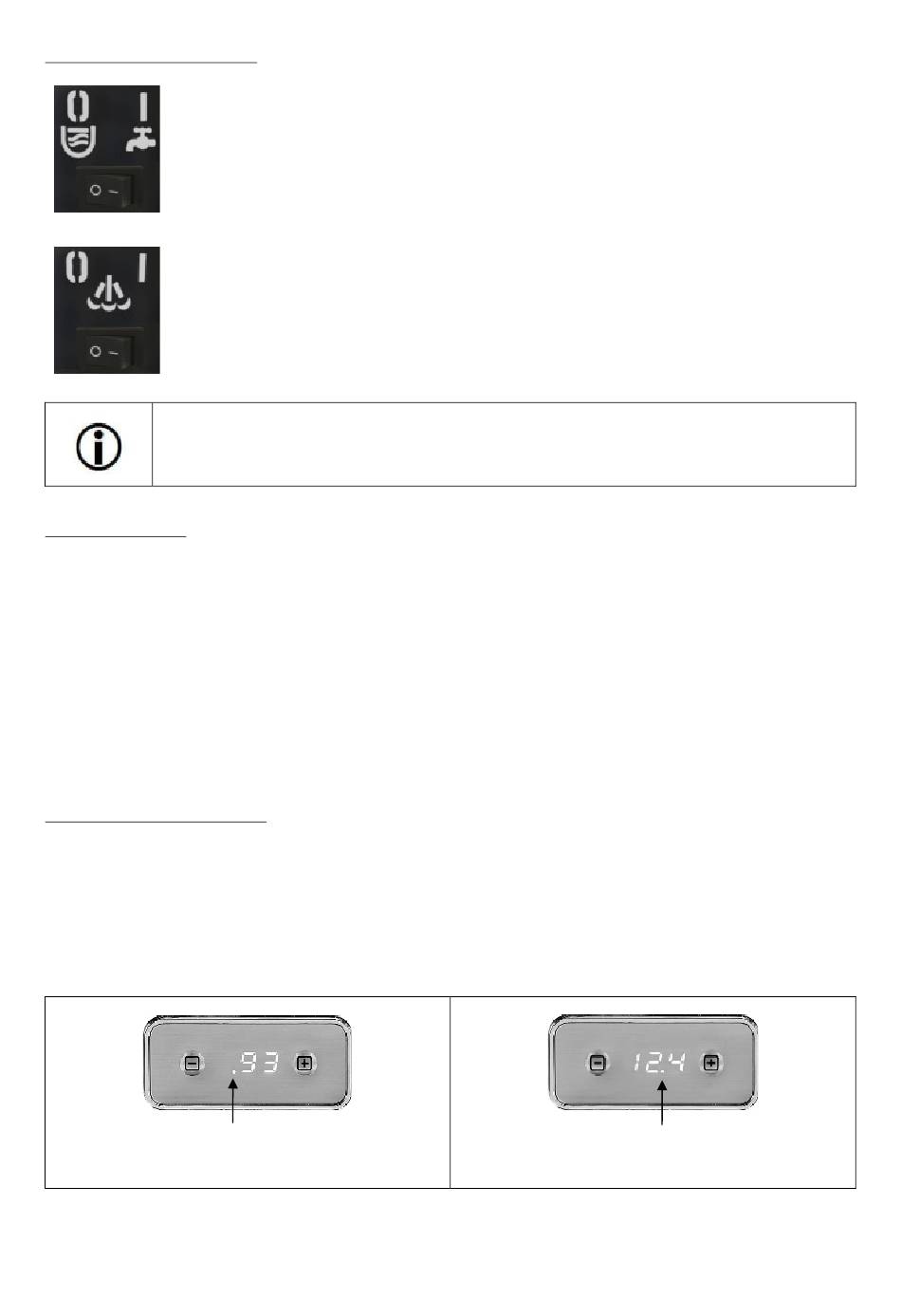

Switches under the drip tray
Please remove the drip try to reach the switches.
Alternatively, the steam boiler switch can also be reached from underneath the chassis
without moving the machine.

3.2 Technical data

Voltages:
Power:
Water tank:
Measurements:
Measurements with portafilter:
Weight:

3.3 PID-Temperature Control

The function of a PID-Temperature Control is to regulate the temperature of both boilers. The temperature of
the boilers are programmable and controlable independently from each other. You have the possibility to
extract coffee at varying temperatures and steaming with different pressure. PID stands for "proportional-
integral-derivative" The temperature plays an integral role in coffee preparation.
The PID-control shows the temperature of the coffee boiler and the steam boiler alternately. The position of
the period indicates which boiler´s temperature is currently being displayed.
Temperature coffee boiler (t1, here 93°C)
- period in the 1st position
Translation of the German original user manual
Water tank/Direct water supply switch:
This switch allows you to select the kind of water supply (water tank or direct water
connection).
Pos. 0: water tank
Pos. 1: direct water connection
Steam boiler switch:
This switch allows you to activate or deactivate the steam boiler
Pos. 0: Steam boiler is deactivated.
Pos. 1: Steam boiler is activated.
EU: 230 V
UK: 230 V
NZ: 240 V
AU: 240 V
US: 115 V
JP: 100 V
1600 W
ca. 2.8 l
B x T x H / 335 mm x 490 mm x 410 mm
B x T x H / 335 mm x 590 mm x 410 mm
30 kg
Temperature steam boiler (t2, here 124°C)
-period in the 3 rd position
