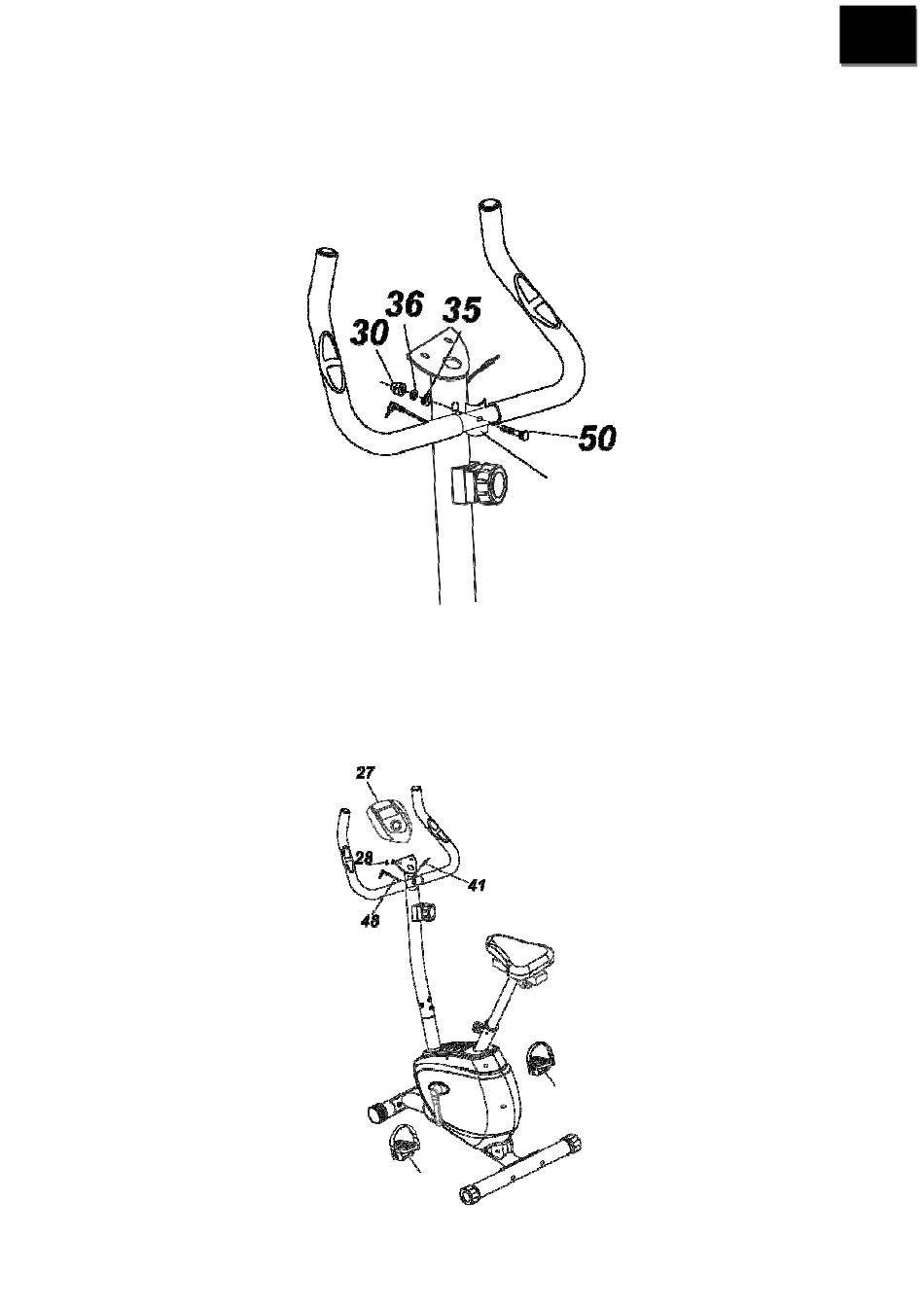

STEP 4
Attach the Handlebar (3) to the Handlebar Upright (2) with 1 x M8 x 85mm Carriage Bolt (50),
1 x M8 Curved Washer (35), 1 x M8 Spring Washer (36) and 1 x M8 Dome Nut (30).
STEP 5
Attach the Exercise Monitor (27) to the Handlebar Upright (2) using 2 x M6 x 12mm
Screws (28) and 2 x M6 Flat Washers (37). Connect the Upper Link Wire (41) and Pulse
Sensor Wire (48) into the back of Exercise Monitor (27) Plug Socket marked with " SENSOR" & "PULSE".
