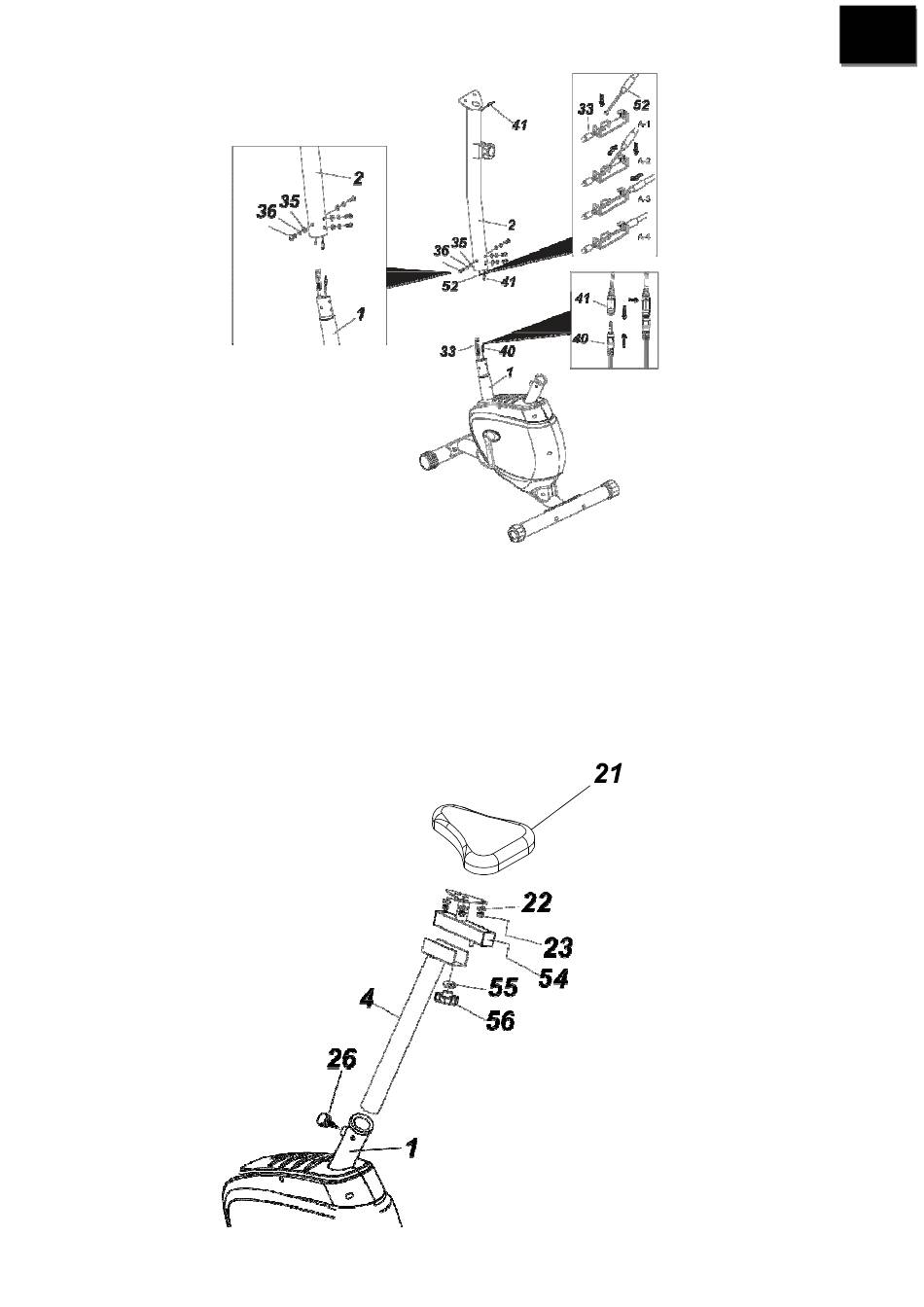

STEP 3
Remove the 3 x M8 Nylon Nuts (23) and 3 x M8 Flat Washers (22) from the underneath the
Saddle (21), then attach the Saddle (21) to the Saddle Stem (4) using the 3 x M8 Nylon Nuts
and 3 x M8 Flat Washers that were removed.
Release the Saddle Adjustment Knob (26), insert the Saddle Stem (4) into the bushing of Main Frame (1).
Adjust the Saddle to the desired height allowing for a slight knee bend at the bottom of the pedalling action.
Tighten the Adjustment Knob (26) after adjustment.
