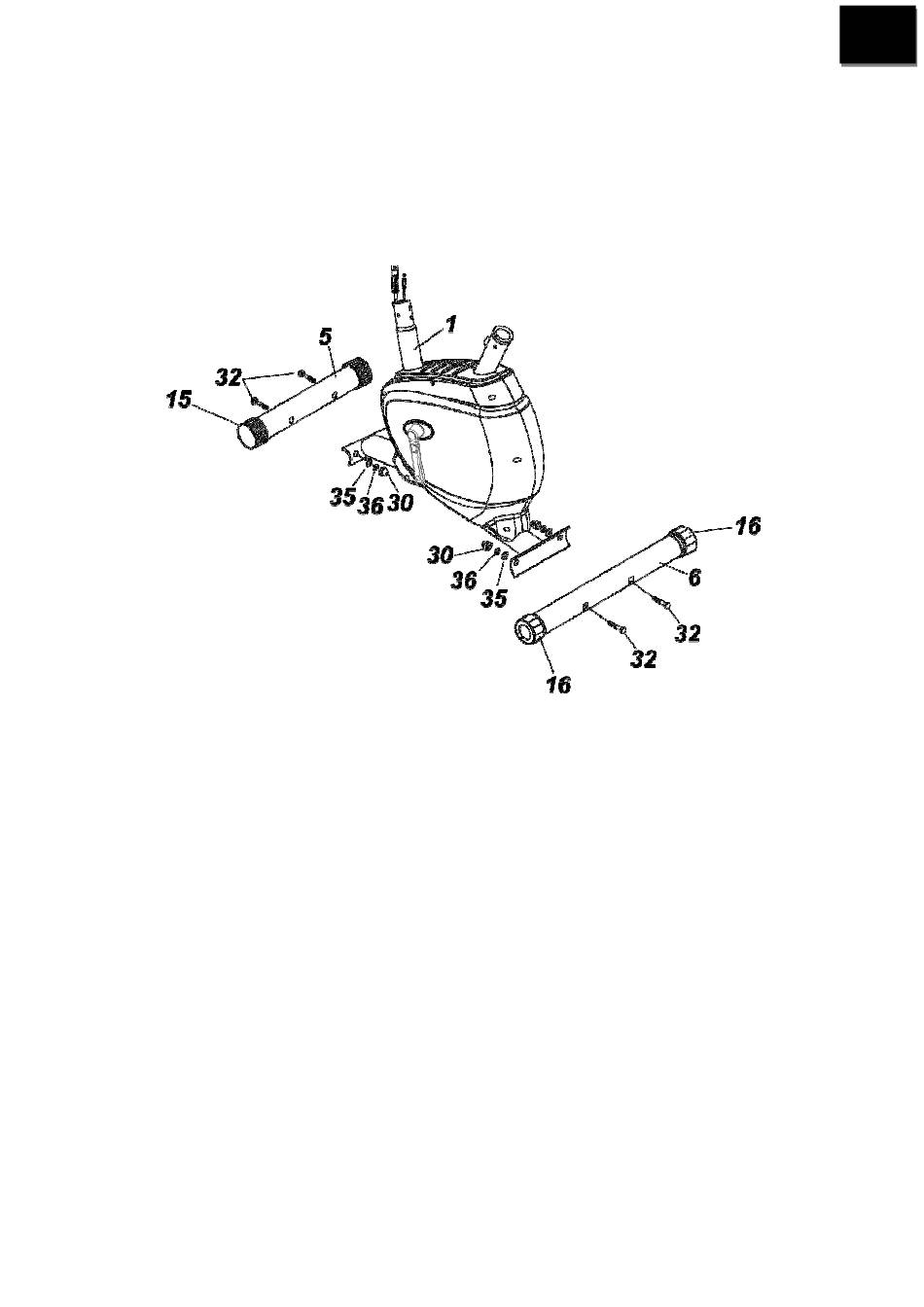

STEP 1
Attach the Front and Rear Stabiliser (5 & 6) to the Main Frame (1) using 4 x M8 x 75mm
Carriage Bolts (32), 4 x M8 Curved Washers (35), 4 xM8 Spring Washers (36) and 4 x M8 Dome Nuts (30).
STEP 2
a). place the end of the 8-Stage Tension Control Cable (52) into the spring hook
of the Lower Tension Cable (33)
b). Pull the 8-Stage Tension Control Cable upwards against the spring pressure and
push it into the gap on the metal bracket of the Lower Tension Cable as shown.
c). Complete the fitting as shown and if necessary, close the open section of the metal
bracket slightly with a pair of pliers as this will help to retain the cables.
d). Connect the lower part of the Upper Link Wire (41) to the Lower Sensor Wire (40),
ensuring a tight connection. Feed the Upper Link Wire (41) out through the top of the
Handlebar Upright (2).
e). Carefully lower the HANDLEBAR UPRIGHT (2) onto the Main Frame (1), loosely fit
4 x M8 x 15mm Allen Bolts (38), 4x M8 Spring Washers (36) and 4 x M8 Curved
Washers (35). Make sure the Handlebar Upright is aligned correctly and tighten all fittings.
