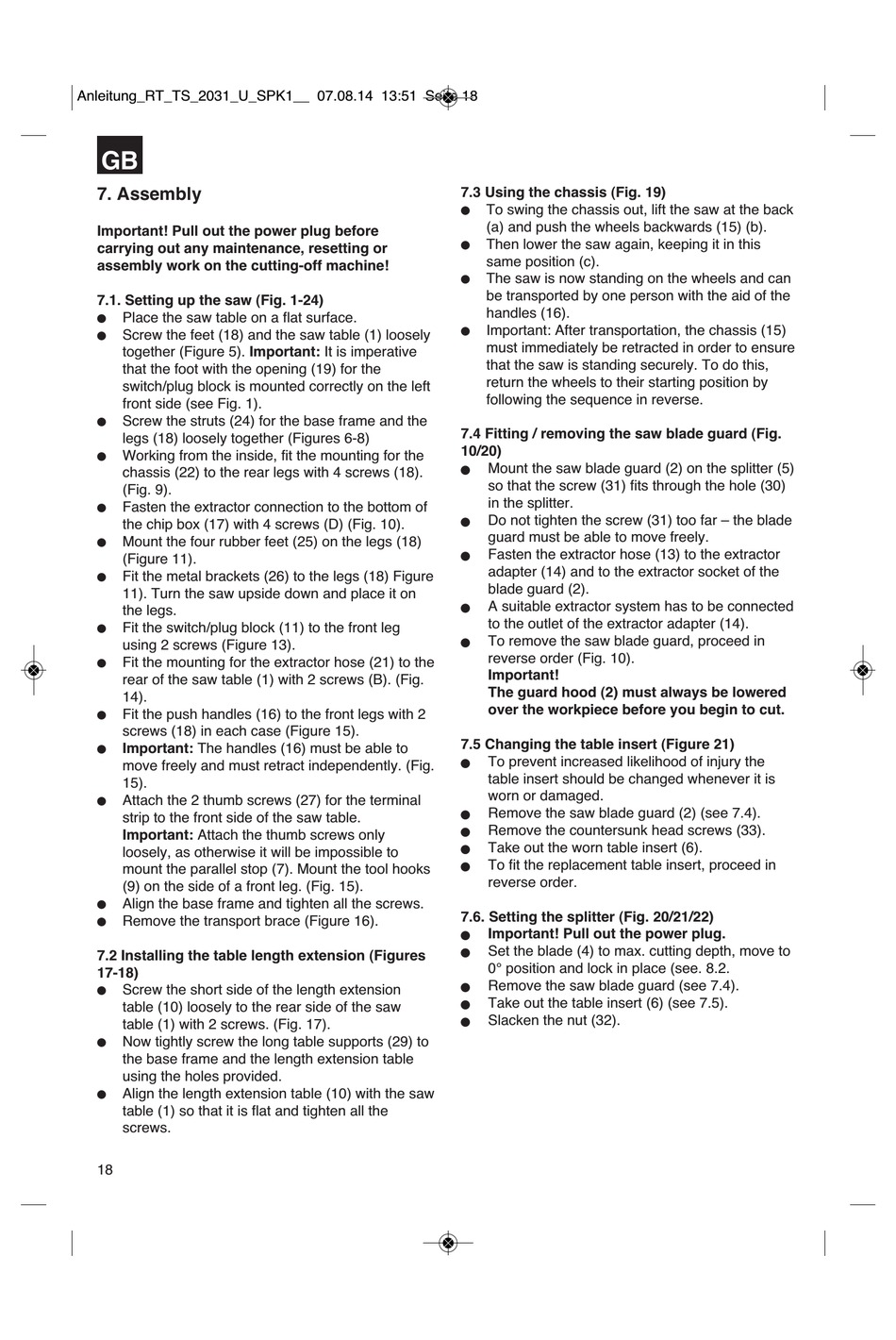

GB
7. Assembly
Important! Pull out the power plug before
carrying out any maintenance, resetting or
assembly work on the cutting-off machine!
7.1. Setting up the saw (Fig. 1-24)
Place the saw table on a flat surface.
Screw the feet (18) and the saw table (1) loosely
together (Figure 5). Important: It is imperative
that the foot with the opening (19) for the
switch/plug block is mounted correctly on the left
front side (see Fig. 1).
Screw the struts (24) for the base frame and the
legs (18) loosely together (Figures 6-8)
Working from the inside, fit the mounting for the
chassis (22) to the rear legs with 4 screws (18).
(Fig. 9).
Fasten the extractor connection to the bottom of
the chip box (17) with 4 screws (D) (Fig. 10).
Mount the four rubber feet (25) on the legs (18)
(Figure 11).
Fit the metal brackets (26) to the legs (18) Figure
11). Turn the saw upside down and place it on
the legs.
Fit the switch/plug block (11) to the front leg
using 2 screws (Figure 13).
Fit the mounting for the extractor hose (21) to the
rear of the saw table (1) with 2 screws (B). (Fig.
14).
Fit the push handles (16) to the front legs with 2
screws (18) in each case (Figure 15).
Important: The handles (16) must be able to
move freely and must retract independently. (Fig.
15).
Attach the 2 thumb screws (27) for the terminal
strip to the front side of the saw table.
Important: Attach the thumb screws only
loosely, as otherwise it will be impossible to
mount the parallel stop (7). Mount the tool hooks
(9) on the side of a front leg. (Fig. 15).
Align the base frame and tighten all the screws.
Remove the transport brace (Figure 16).
7.2 Installing the table length extension (Figures
17-18)
Screw the short side of the length extension
table (10) loosely to the rear side of the saw
table (1) with 2 screws. (Fig. 17).
Now tightly screw the long table supports (29) to
the base frame and the length extension table
using the holes provided.
Align the length extension table (10) with the saw
table (1) so that it is flat and tighten all the
screws.
18
7.3 Using the chassis (Fig. 19)
To swing the chassis out, lift the saw at the back
(a) and push the wheels backwards (15) (b).
Then lower the saw again, keeping it in this
same position (c).
The saw is now standing on the wheels and can
be transported by one person with the aid of the
handles (16).
Important: After transportation, the chassis (15)
must immediately be retracted in order to ensure
that the saw is standing securely. To do this,
return the wheels to their starting position by
following the sequence in reverse.
7.4 Fitting / removing the saw blade guard (Fig.
10/20)
Mount the saw blade guard (2) on the splitter (5)
n
so that the screw (31) fits through the hole (30)
in the splitter.
Do not tighten the screw (31) too far – the blade
n
guard must be able to move freely.
Fasten the extractor hose (13) to the extractor
n
adapter (14) and to the extractor socket of the
blade guard (2).
A suitable extractor system has to be connected
n
to the outlet of the extractor adapter (14).
To remove the saw blade guard, proceed in
n
reverse order (Fig. 10).
Important!
The guard hood (2) must always be lowered
over the workpiece before you begin to cut.
7.5 Changing the table insert (Figure 21)
To prevent increased likelihood of injury the
n
table insert should be changed whenever it is
worn or damaged.
Remove the saw blade guard (2) (see 7.4).
n
Remove the countersunk head screws (33).
n
Take out the worn table insert (6).
n
To fit the replacement table insert, proceed in
n
reverse order.
7.6. Setting the splitter (Fig. 20/21/22)
Important! Pull out the power plug.
n
Set the blade (4) to max. cutting depth, move to
n
0° position and lock in place (see. 8.2.
Remove the saw blade guard (see 7.4).
n
Take out the table insert (6) (see 7.5).
n
Slacken the nut (32).
n
