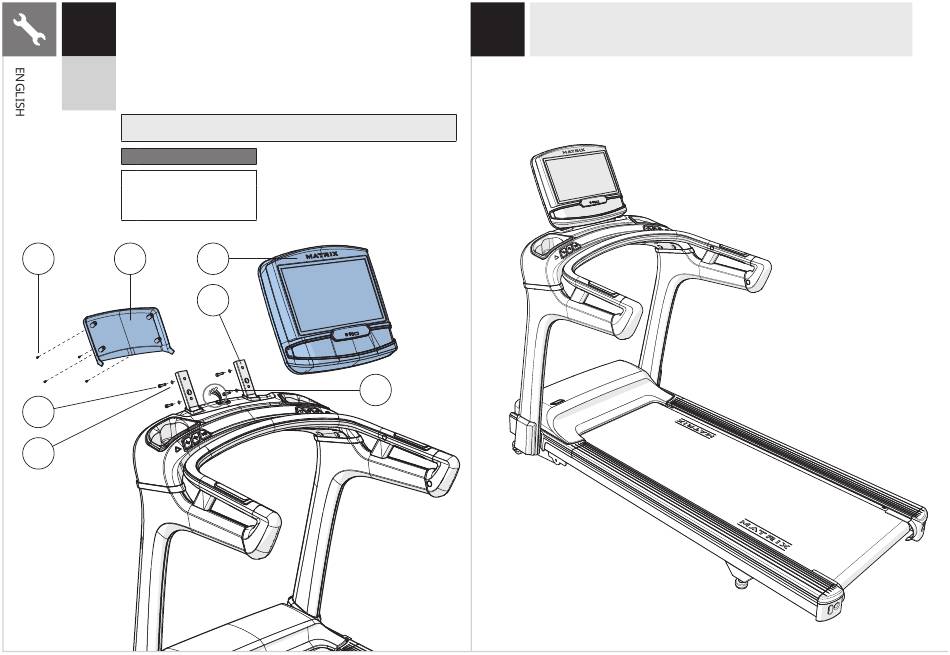

A Open HARDWARE FOR STEP 5.
5
B Connect the CONSOLE CABLES (4) to the CONSOLE (12) and
carefully tuck the excess cable into the CONSOLE BASE (7).
C Attach the CONSOLE (12) to the CONSOLE BASE (7)
using 4 BOLTS (L) and 4 FLAT WASHERS (M).
T50
T70 D Attach the CONSOLE BACK COVER (13) to the
CONSOLE (12) using 4 SCREWS (N).
Note: Be careful not to pinch any wires while attaching the console.
Hardware For Step 5
Description
L Bolt
M Flat Washer
N Screw
N 13
L
M
42
Qty
4
4
4
12
7
4
6
T50 / T70 ASSEMBLY COMPLETE!
