A Open HARDWARE FOR STEP 3.
3

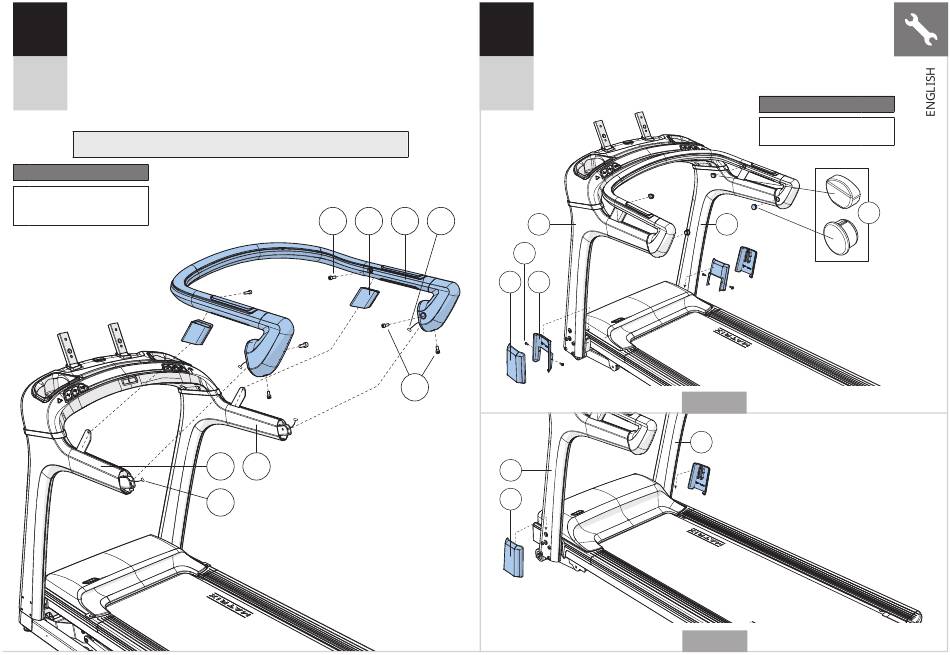

B Place HANDLEBAR SLEEVES (8) on top of CONSOLE MASTS (1 & 5).
C Connect the CONSOLE CABLES (4) and tuck the
cables inside the CONSOLE MASTS (1 & 5).
T50
D Attach HANDLEBAR (9) to CONSOLE MASTS
T70 (1 & 5) using 2 BOLTS (H) and 4 BOLTS
(I). Tighten to 15 Nm / 11 lb-ft.
E Tighten all bolts from steps 1–3.
Note: Be careful not to pinch any wires while attaching the handlebar.
Hardware For Step 3
Description Qty
H Bolt 2
I Bolt 4 H 8
1 5
4
A Insert 4 HANDLEBAR CAPS (10) into HANDLEBAR (9).
4
B Slide OUTSIDE BASE FRAME COVERS (11) over bolts at the bottom of
the CONSOLE MASTS (1 & 5).
C T50 only: Open HARDWARE FOR STEP 4.
T50
D T50 only: Attach INSIDE BASE FRAME COVERS (12) using 4 SCREWS (J).
T70
9 4
1
J
11 12
I
1
11
Hardware For Step 4 (T50 only)
Description Qty
J Screw 4
10
5
T50
5
T70
