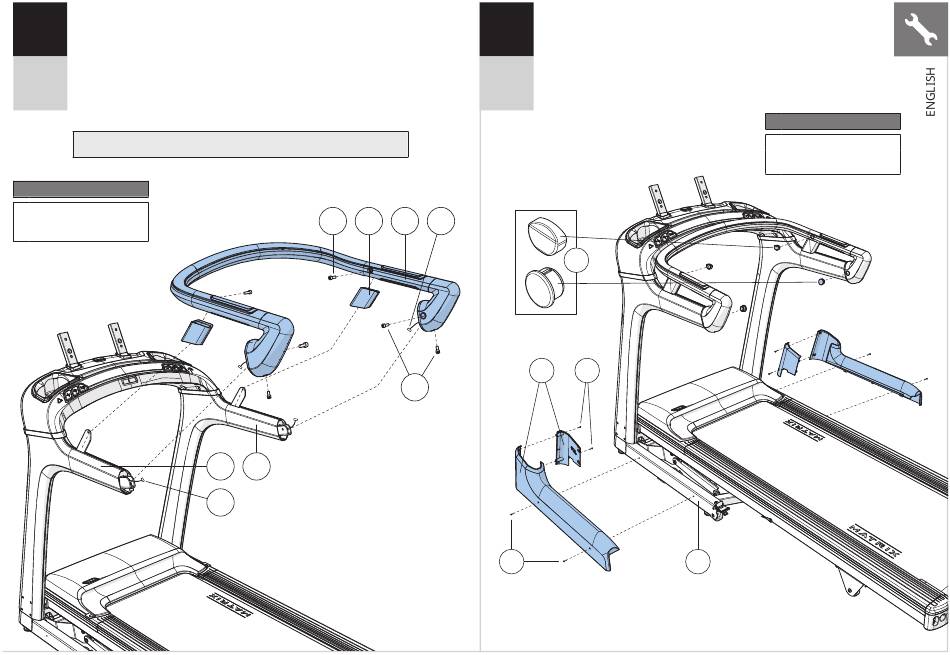

A Open HARDWARE FOR STEP 3.
3
B Place HANDLEBAR SLEEVES (8) on top of CONSOLE MASTS (1 & 5).
C Connect the CONSOLE CABLES (4) and tuck the
cables inside the CONSOLE MASTS (1 & 5).
TF30
D Attach HANDLEBAR (9) to CONSOLE MASTS
(1 & 5) using 2 BOLTS (H) and 4 BOLTS
TF50
(I). Tighten to 15 Nm / 11 lb-ft.
E Tighten all bolts from steps 1–3.
Note: Be careful not to pinch any wires while attaching the handlebar.
Hardware For Step 3
Description Qty
H Bolt 2
I Bolt 4
H 8
1 5
4
A Open HARDWARE FOR STEP 4.
4
B Insert 4 HANDLEBAR CAPS (10)
into HANDLEBAR (9).
C Attach BASE FRAME COVERS (11) to the
TF30
BASE FRAME (2) using 2 SCREWS (J) from the
inside and 2 SCREWS (K) from the outside.
TF50
D Repeat on other side.
9 4
10
11
I
K
J
2
Hardware For Step 4
Description Qty
J Screw (10 mm) 4
K Screw (30 mm) 4
